300/500V XLPE Insulated, LSZH Sheathed Power Cables to BS 7211 (Single Core)

FTX300 05RZ1-U (CU/XLPE/LSZH 300/500V Class 1)

BS Code : 6241B

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.

STANDARDS

Basic design to BS 7211:2012

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300/500V

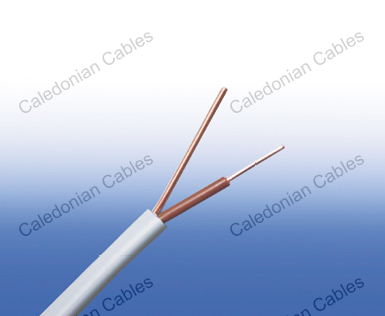

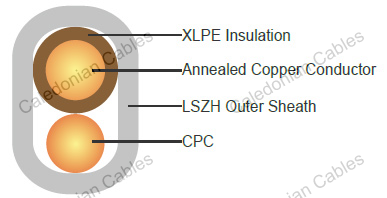

CABLE CONSTRUCTION

Conductor : Annealed copper conductor, solid according to BS EN 60228 class 1.

Insulation : XLPE type GP8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 can be offered as option.

CPC (Circuit Protective Conductor) : Uninsulated copper conductor.

Outer Sheath : Extruded LSZH type LTS 2 according to BS 7655-6.1.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour : Brown or blue.

Sheath Colour : White; other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 90°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 4 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor		FTX300 05RZ1-U
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness	Cross- sectional Area of CPC	Class of CPC	Nominal Insulation Thickness	Min. overall Dimensions	Max. overall Dimensions	Approx. Weight
No.×mm²		mm	mm²		mm	mm	mm	kg/km
1×1.0	1	0.70	1.0	1	0.9	4.1x5.2	5.0x6.3	45
1×1.5	1	0.70	1.0	1	0.9	4.4x5.4	5.3x6.6	55

ELECTRICAL PROPERTIES

Conductor operating temperature : 90°C

Ambient temperature : 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E1A

Conductor cross- ectional area	Ref. Method A (enclosed in conduit in thermally insulating wall etc.)		Ref. Method B (enclosed in conduit on a wall or in trunking etc.)		Ref. Method C (clipped direct)
Conductor cross- ectional area	2 cables, single-phase a.c. or d.c.	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single- phase a.c. or d.c. flat and touching	3 or 4 cables, three-phase a.c. flat and touching or trefoil
1	2	3	4	5	6	7
mm²	A	A	A	A	A	A
1.0	14	13	17	15	19	17.5
1.5	19	17	23	20	25	23

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E1B

Conductor cross- sectional area	2 cables d.c.	2 cables, single-phase a.c.			3 or 4 cables, three-phase a.c.
		Ref. Methods A&B (enclosed in conduit or trunking)	Ref. Methods C, F&G (clipped direct, on trays or in free air)		Ref. Methods A&B (enclosed in conduit or trunking)	Ref. Methods C, F&G (clipped direct, on trays or in free air)
						Cables touching, Trefoil	Cables touching, flat	Cables spaced*, flat
			Cables touching	Cables spaced*		Cables touching, Trefoil	Cables touching, flat	Cables spaced*, flat
1	2	3	4	5	6	7	8	9
mm²	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m
1.0	46	46	46	46	40	40	40	40
1.5	31	31	31	31	27	27	27	27

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
