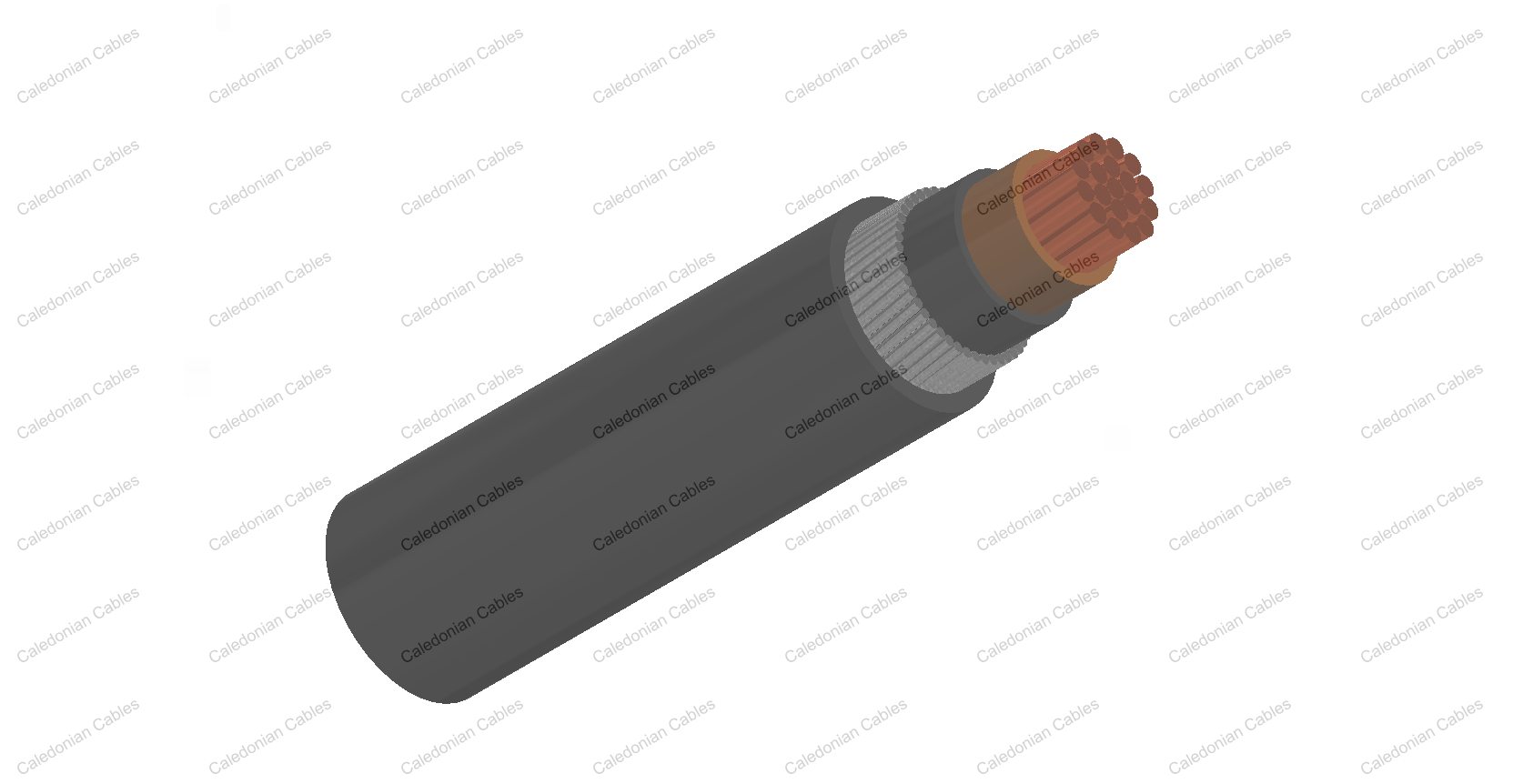

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to BS 5467 (Single Core)

FGD300 1RVMAV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

BS Code: 6941X

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is TUV approved.

Standards

Basic design to to BS 5467

Approvals

TUV Certification (Z1 17 01 98200 003)

Fire Performance

Flame Retardance (Single Vertical Wire Test)

BS EN 60332-1-2

Voltage Rating

600/1000V

Cable Construction

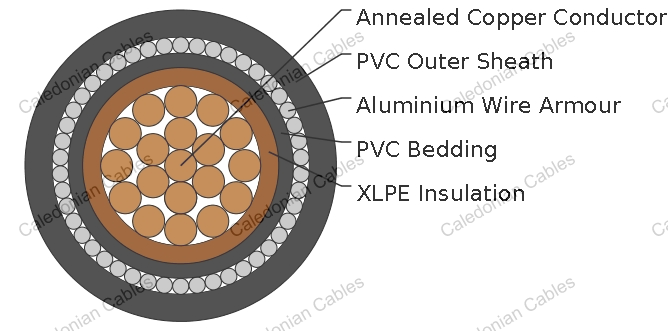

Conductor	Annealed copper wire, stranded according to BS EN 60228 class 2.
Insulation	Extruded XLPE GP 8 according to BS 7655-1.3.
Bedding	PVC or polymeric compound.
Armouring	Aluminium wire
Outer Sheath	PVC Type 9 according to BS 7655-4.2.
Outer Sheath Option	UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

Colour Code

Insulation Colour	Brown or blue
Sheath Colour	Black, other colours can be offered upon request.

Mechanical and Electrical Properties

Maximum temperature range during operation (XLPE)	90°C
Maximum short circuit temperature (5 Seconds)	250°C
Minimum bending radius
Circular copper conductors	6 x Overall Diameter
Shaped copper conductors	8 x Overall Diameter

Construction Parameters

Conductor		FGD300 1RVMAV-R
No. of Cores xCross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Bedding Thickness	Nominal Armour Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
No.xmm²		mm	mm	mm	mm	mm	kg/km
1x50	2	1.0	0.8	0.9	1.5	17.5	800
1x70	2	1.1	0.8	1.25	1.5	20.2	990
1x95	2	1.1	0.8	1.25	1.6	22.3	1280
1x120	2	1.2	0.8	1.25	1.6	24.2	1550
1x150	2	1.4	1.0	1.6	1.7	27.4	1900
1x185	2	1.6	1.0	1.6	1.8	30	2320
1x240	2	1.7	1.0	1.6	1.8	32.8	2930
1x300	2	1.8	1.0	1.6	1.9	35.6	3580
1x400	2	2.0	1.2	2.0	2.0	40.5	4600
1x500	2	2.2	1.2	2.0	2.1	44.2	5680
1x630	2	2.4	1.2	2.0	2.2	48.8	7160
1x800	2	2.6	1.4	2.5	2.4	55.4	9315
1x1000	2	2.8	1.4	2.5	2.5	60.6	11490

ELECTRICAL PROPERTIES

Conductor Operating Temperature	90°C
Ambient Temperature	30°C

Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4E3A

Conductor cross-sectional area	Reference Method C (clipped direct)		Reference Method F (in free air or on a perforated cable tray, horizontal or vertical)
	Touching		Touching			Spaced by on cable diameter
	2 cables, single-phase a.c. or d.c. flat	3 or 4 cables, three-phase a.c. flat	2 cables, single-hase a.c. or d.c. flat	3 or 4 cables, three-phase a.c. flat	3 cables three-phase a.c. trefoil	2 cables, d.c.		2 cables, single-phase a.c.		3 or 4 cables, three-phase a.c.
	2 cables, single-phase a.c. or d.c. flat	3 or 4 cables, three-phase a.c. flat	2 cables, single-hase a.c. or d.c. flat	3 or 4 cables, three-phase a.c. flat	3 cables three-phase a.c. trefoil	Horizontal	Vertical	Horizontal	Vertical	Horizontal	Vertical
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
50	237	220	253	232	222	284	270	282	266	288	266
70	303	277	322	293	285	356	349	357	337	358	331
95	367	333	389	352	346	446	426	436	412	425	393
120	425	383	449	405	402	519	497	504	477	485	449
150	488	437	516	462	463	600	575	566	539	549	510
185	557	496	587	524	529	688	660	643	614	618	574
240	656	579	689	612	625	815	782	749	714	715	666
300	755	662	792	700	720	943	906	842	805	810	755
400	853	717	899	767	815	1137	1094	929	889	848	797
500	962	791	1016	851	918	1314	1266	1032	989	923	871
630	1082	861	1146	935	1027	1528	1474	1139	1092	992	940
800	1170	904	1246	987	1119	1809	1744	1204	1155	1042	978
1000	1261	961	1345	1055	1214	2100	2026	1289	1238	1110	1041

Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4E3B

Nominal Cross Section Area	2 cables d.c.	Ref. Methods C&F(clipped direct, on trays or in free air)
		2 cables, single-phase a.c.						3 or 4 cables, three-phase a.c.
		Touching			Spaced*			Trefoil and touching			Flat and touching			Flat and spaced*
1	2	3			4			5			6			7
mm2	mV/A/m	mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
50	0.98	0.99	0.21	1.0	0.98	0.29	1.0	0.86	0.18	0.87	0.64	0.25	0.88	0.84	0.33	0.9
70	0.67	0.68	0.20	0.71	0.69	0.29	0.75	0.59	0.170	0.62	0.60	0.25	0.65	0.62	0.32	0.70
95	0.49	0.51	0.195	0.55	0.53	0.28	0.60	0.44	0.170	0.47	0.46	0.24	0.52	0.49	0.31	0.58
120	0.39	0.41	0.190	0.45	0.43	0.27	0.51	0.35	0.165	0.39	0.38	0.24	0.44	0.41	0.30	0.51
150	0.31	0.33	0.185	0.38	0.36	0.27	0.45	0.29	0.160	0.33	0.31	0.23	0.39	0.34	0.29	0.45
185	0.25	0.27	0.185	0.33	0.30	0.26	0.40	0.23	0.160	0.28	0.26	0.23	0.34	0.29	0.29	0.41
240	0.195	0.21	0.180	0.28	0.24	0.26	0.35	0.180	0.155	0.24	0.21	0.22	0.30	0.24	0.28	0.37
300	0.155	0.17	0.175	0.25	0.195	0.25	0.32	0.145	0.150	0.21	0.170	0.22	0.28	0.20	0.27	0.34
400	0.115	0.145	0.170	0.22	0.180	0.24	0.30	0.125	0.150	0.195	0.160	0.21	0.27	0.20	0.27	0.33
500	0.093	0.125	0.170	0.21	0.165	0.24	0.29	0.105	0.145	0.180	0.145	0.20	0.25	0.190	0.24	0.31
630	0.073	0.105	0.165	0.195	0.150	0.23	0.27	0.092	0.145	0.170	0.135	0.195	0.24	0.175	0.23	0.29
800	0.056	0.090	0.160	0.190	0.145	0.23	0.27	0.086	0.140	0.165	0.130	0.180	0.23	0.175	0.195	0.26
1000	0.045	0.092	0.155	0.180	0.140	0.21	0.25	0.080	0.135	0.155	0.125	0.170	0.21	0.165	0.180	0.24

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
