600/1000V PVC Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (Single Core)

FGD300 1VV-R (CU/PVC/PVC 600/1000V Class 2)

VDE Code: NYY

Application

IEC 60502-1 600/1000V PVC Insulated, PVC Sheathed Unarmoured Power Cables are mainly use in fixed installations in industrial areas, buildings and similar applications but not for burial in the ground, either directly or in ducts.

Standards

Basic design to to IEC 60502-1

Fire Performance

Flame Retardance (Single Vertical Wire Test)

IEC 60332-1-2

Voltage Rating

600/1000V

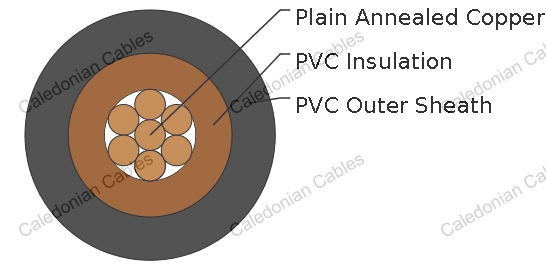

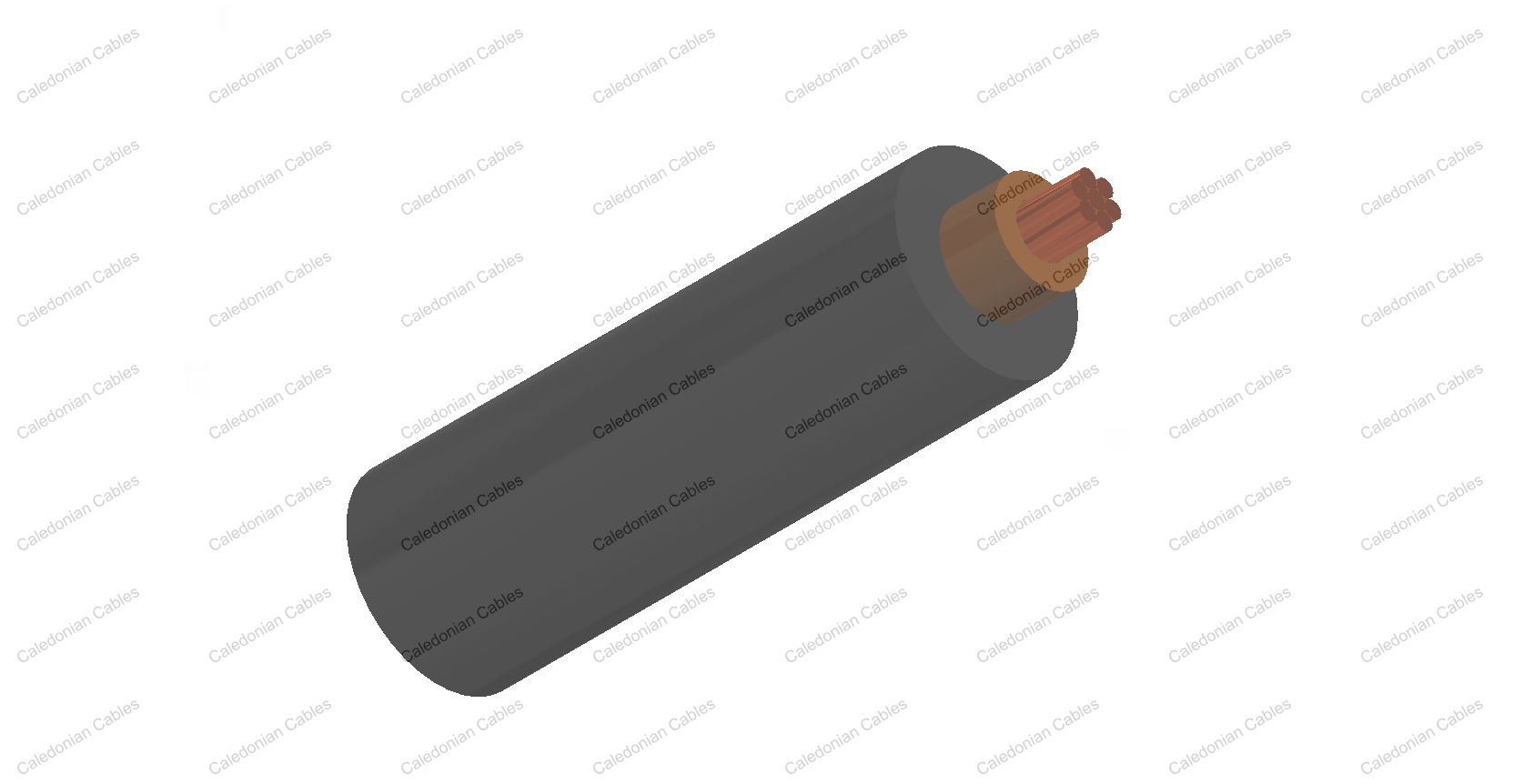

Cable Construction

Conductor	Plain annealed copper, stranded according to IEC 60228 class 2.
Insulation	PVC/A according to IEC 60502-1.
Outer Sheath	Extruded PVC Type ST1/ST2 according to IEC 60502-1.
Outer Sheath Option	UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

Colour Code

Insulation Colour	Brown or blue, other colours can be offered upon request.
Sheath Colour	Black, other colours can be offered upon request.

Mechanical and Electrical Properties

Maximum temperature range during operation

70°C

Maximum short circuit temperature (5 Seconds)

	Conductor cross-section ≤300 mm²	160°C
	Conductor cross-section >300 mm²	140°C

Minimum bending radius

	Circular copper conductor (OD ≤ 25mm)	4 x Overall Diameter
	Circular copper conductor (OD > 25mm)	6 x Overall Diameter
	Shaped copper conductor	8 x Overall Diameter

Construction Parameters

Conductor		FGD300 1RV-R
No. of Cores xCross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
No.xmm2		mm	mm	mm	kg/km
1x1.5	2	0.8	1.4	5.8	55
1x2.5	2	0.8	1.4	6.2	70
1x4.0	2	1	1.4	7.1	98
1x6.0	2	1	1.4	7.6	124
1x10	2	1	1.4	8.4	173
1x16	2	1	1.4	9.3	240
1x25	2	1.2	1.4	10.8	350
1x35	2	1.2	1.4	11.9	468
1x50	2	1.4	1.4	13.6	646
1x70	2	1.4	1.4	15	854
1x95	2	1.6	1.5	17.2	1154
1x120	2	1.6	1.5	18.6	1428
1x150	2	1.8	1.6	20.6	1764
1x185	2	2	1.7	22.7	2160
1x240	2	2.2	1.8	25.5	2796
1x300	2	2.4	1.9	28.1	3449
1x400	2	2.6	2	31.8	4570
1x500	2	2.8	2.1	35	5641
1x630	2	2.8	2.2	38.3	7015
1x800	2	2.8	2.3	42.1	8798
1x1000	2	3	2.5	46.7	10970

ELECTRICAL PROPERTIES

Conductor Operating Temperature	70°C
Ambient Temperature	30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A

Conductor cross-sectional area	Reference Method A (enclosed in conduit in thermally insulating wall etc)		Reference Method B (enclosed in conduit on a wall or in trunking etc)		Reference Method C (clipped direct)		Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)
	2cables, single-phase a.c. or d.c.	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c. flat and touching	3 or 4 cables, three-phase a.c. flat and touching or trefoil	2 cables, single-phase a.c. or d.c. flat	3 cables, three-phase a.c. flat	3 cables, three-phase a.c. trefoil	2 cables, single-phase a.c. or d.c. or 3 cables three-phase a.c. flat
	2cables, single-phase a.c. or d.c.	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c. flat and touching		2 cables, single-phase a.c. or d.c. flat	3 cables, three-phase a.c. flat	3 cables, three-phase a.c. trefoil	Horizontal	Vertical
1	2	3	4	5	6	7	8	9	10	11	12
mm²	A	A	A	A	A	A	A	A	A	A	A
1	11	10.5	13.5	12	15.5	14	-	-	-	-	-
1.5	14.5	13.5	17.5	15.5	20	18	-	-	-	-	-
2.5	20	18	24	21	27	25	-	-	-	-	-
4	26	24	32	28	37	33	-	-	-	-	-
6	34	31	41	36	47	43	-	-	-	-	-
10	46	42	57	50	65	59	-	-	-	-	-
16	61	56	76	68	87	79	-	-	-	-	-
25	80	73	101	89	114	104	131	114	110	146	130
35	99	89	125	110	141	129	162	143	137	181	162
50	119	108	151	134	182	167	196	174	167	219	197
70	151	136	192	171	234	214	251	225	216	281	254
95	182	164	232	207	284	261	304	275	264	341	311
120	210	188	269	239	330	303	352	321	308	396	362
150	240	216	300	262	381	349	406	372	356	456	419
185	273	245	341	296	436	400	463	427	409	521	480
240	321	286	400	346	515	472	546	507	485	615	569
300	367	328	458	394	594	545	629	587	561	709	659
400	-	-	546	467	694	634	754	689	656	852	795
500	-	-	626	533	792	723	868	789	749	982	920
630	-	-	720	611	904	826	1005	905	855	1138	1070
800	-	-	-	-	1030	943	1086	1020	971	1265	1188
1000	-	-	-	-	1154	1058	1216	1149	1079	1420	1337

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B

Nominal Cross Section Area	2 cables d.c.	2 cables, single-phase a.c.									3 or 4 cables, three-phase a.c.
Nominal Cross Section Area	2 cables d.c.	Ref. Methods A and B (enclosed in conduit or trunking)			Ref. Methods C & F(clipped direct, on trays or in free air)						Ref. Methods A & B (enclosed in conduit or trunking			Ref. Methods C & F(clipped direct, on trays or in free air)
					Cables touching			Cables spaced*			Ref. Methods A & B (enclosed in conduit or trunking			Cables touching, Trefoil			Cables touching, Flat			Cables spaced*, Flat
1	2	3			4			5			6			7			8			9
mm²	mV/A/m
1	44	44			44			44			38			38			38			38
1.5	29	29			29			29			25			25			25			25
2.5	18	18			18			18			15			15			15			15
4	11	11			11			11			9.5			9.5			9.5			9.5
6	7.3	7.3			7.3			7.3			6.4			6.4			6.4			6.4
10	4.4	4.4			4.4			4.4			3.8			3.8			3.8			3.8
16	2.8	2.8			2.8			2.8			2.4			2.4			2.4			2.4
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
25	1.75	1.8	0.33	1.8	1.75	0.2	1.75	1.75	0.29	1.8	1.5	0.29	1.55	1.5	0.175	1.5	1.5	0.25	1.55	1.5	0.32	1.55
35	1.25	1.3	0.31	1.3	1.25	0.195	1.25	1.25	0.28	1.3	1.1	0.27	1.1	1.1	0.17	1.1	1.1	0.24	1.1	1.1	0.32	1.15
50	0.93	0.95	0.3	1	0.93	0.19	0.95	0.93	0.28	0.97	0.81	0.26	0.85	0.8	0.165	0.82	0.8	0.24	0.84	0.8	0.32	0.86
70	0.63	0.65	0.29	0.72	0.63	0.185	0.66	0.63	0.27	0.69	0.56	0.25	0.61	0.55	0.16	0.57	0.55	0.24	0.6	0.55	0.31	0.63
95	0.46	0.49	0.28	0.56	0.47	0.18	0.5	0.47	0.27	0.54	0.42	0.24	0.48	0.41	0.155	0.43	0.41	0.23	0.47	0.4	0.31	0.51
120	0.36	0.39	0.27	0.47	0.37	0.175	0.41	0.37	0.26	0.45	0.33	0.23	0.41	0.32	0.15	0.36	0.32	0.23	0.4	0.32	0.3	0.44
150	0.29	0.31	0.27	0.41	0.3	0.175	0.34	0.29	0.26	0.39	0.27	0.23	0.36	0.26	0.15	0.3	0.26	0.23	0.34	0.26	0.3	0.4
185	0.23	0.25	0.27	0.37	0.24	0.17	0.29	0.24	0.26	0.35	0.22	0.23	0.32	0.21	0.145	0.26	0.21	0.22	0.31	0.21	0.3	0.36
240	0.18	0.195	0.26	0.33	0.185	0.165	0.25	0.185	0.25	0.31	0.17	0.23	0.29	0.16	0.145	0.22	0.16	0.22	0.27	0.16	0.29	0.34
300	0.145	0.16	0.26	0.31	0.15	0.165	0.22	0.15	0.25	0.29	0.14	0.23	0.27	0.13	0.14	0.19	0.13	0.22	0.25	0.13	0.29	0.32
400	0.105	0.13	0.26	0.29	0.12	0.16	0.2	0.115	0.25	0.27	0.12	0.22	0.25	0.105	0.14	0.175	0.105	0.21	0.24	0.1	0.29	0.31
500	0.086	0.11	0.26	0.28	0.098	0.155	0.185	0.093	0.24	0.26	0.1	0.22	0.25	0.086	0.135	0.16	0.086	0.21	0.23	0.081	0.29	0.3
630	0.068	0.094	0.25	0.27	0.081	0.155	0.175	0.076	0.24	0.25	0.08	0.22	0.24	0.072	0.135	0.15	0.072	0.21	0.22	0.066	0.28	0.29
800	0.053	-	-	-	0.068	0.15	0.165	0.061	0.24	0.25	-	-	-	0.06	0.13	0.145	0.06	0.21	0.22	0.053	0.28	0.29
1000	0.042	-	-	-	0.059	0.15	0.16	0.05	0.24	0.24	-	-	-	0.052	0.13	0.14	0.052	0.2	0.21	0.044	0.28	0.28

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
