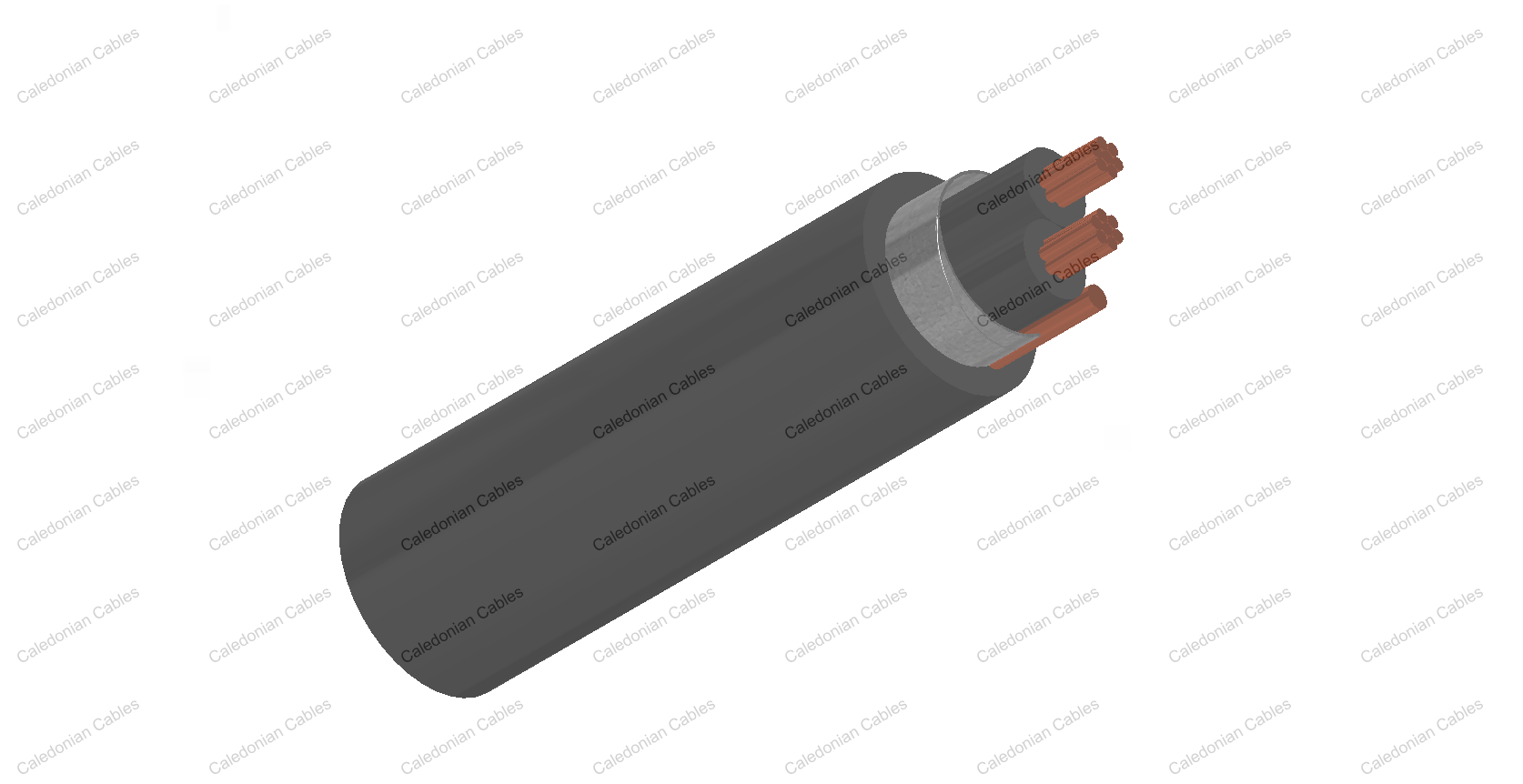

    Flame Retardant Overall Screened Instrumentation Cables (Multicore)

    RE-2X(St)Y

    i

    APPLICATION

    The unarmoured XLPE versions are generally used for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services.

    STANDARDS

    Basic design to BS EN 50288-7 (formerly BS 5308)

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) : BS EN 60332-1-2

    VOLTAGE RATING

    300V, 500V

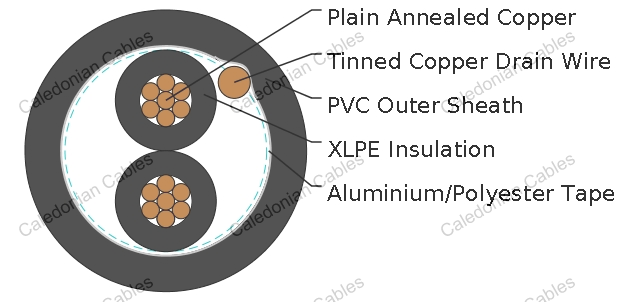

    CABLE CONSTRUCTION

    Conductor : Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.

    Insulation : Extruded XLPE compound according to EN 50290-2-29. PVC, PE, PP compound can be offered as options.

    Overall Screen : Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.

    Outer Sheath : Thermoplastic PVC compound according to EN 50290-2-22.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    Insulation Colour : Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.

    Outer Sheath : Black. Other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation : -30°C - +90°C

    Temperature range fixed installation : -5°C - +50°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius : 7.5 x Overall Diameter

    ELECTRICAL PROPERTIES

    300V

    Conductor Area Size mm² 0.5 0.75 1.0 1.5
    Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
    Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
    Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
    Minimum Insulation Resistance (20°C) Mohm/km 1000
    Maximum Mutual Capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum L/R (ratio) μH/Ω 25 25 25 40
    Operating Voltage V 300
    Dielectric Strength for 1 Minute AC V ≥1000
    DC V ≥2000

    500V

    Conductor Area Size mm² 0.5 0.75 1.0 1.5 2.5
    Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
    Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
    Minimum Insulation Resistance (20°C) Mohm/km 1000
    Maximum Mutual Capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum L/R (ratio) μH/Ω 25 25 25 40 60
    Operating Voltage V 500
    Dielectric Strength for 1 Minute AC V ≥2000
    DC V ≥3000

    CONSTRUCTION PARAMETERS

    300V

    Conductor RE-2X(St)Y
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm²   mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.4 0.9 5.5 40
    3x0.5 2 0.4 0.9 5.7 49
    4x0.5 2 0.4 0.9 6.2 59
    5x0.5 2 0.4 0.9 6.7 69
    8x0.5 2 0.4 1.0 8.0 101
    10x0.5 2 0.4 1.0 9.1 123
    12x0.5 2 0.4 1.0 9.4 139
    14x0.5 2 0.4 1.0 9.8 157
    16x0.5 2 0.4 1.0 10.3 175
    20x0.5 2 0.4 1.1 11.3 215
    24x0.5 2 0.4 1.1 12.8 254
    27x0.5 2 0.4 1.1 13.0 279
    30x0.5 2 0.4 1.2 13.7 311
    37x0.5 2 0.4 1.2 14.7 370
    40x0.5 2 0.4 1.2 15.2 397
    0.75mm²
    2x0.75 2 0.4 0.9 5.8 47
    3x0.75 2 0.4 0.9 6.1 59
    4x0.75 2 0.4 0.9 6.6 72
    5x0.75 2 0.4 1.0 7.4 88
    8x0.75 2 0.4 1.0 8.5 125
    10x0.75 2 0.4 1.1 10.0 158
    12x0.75 2 0.4 1.1 10.3 181
    14x0.75 2 0.4 1.1 10.8 204
    16x0.75 2 0.4 1.1 11.4 228
    20x0.75 2 0.4 1.2 12.4 280
    24x0.75 2 0.4 1.3 14.3 339
    27x0.75 2 0.4 1.3 14.6 372
    30x0.75 2 0.4 1.3 15.1 406
    37x0.75 2 0.4 1.3 16.2 485
    40x0.75 2 0.4 1.4 16.9 528
    1.0mm²
    2x1.0 2 0.4 0.9 6.2 57
    3x1.0 2 0.4 0.9 6.6 72
    4x1.0 2 0.4 0.9 7.1 89
    5x1.0 2 0.4 0.9 7.7 106
    8x1.0 2 0.4 1.0 9.2 158
    10x1.0 2 0.4 1.0 10.7 195
    12x1.0 2 0.4 1.0 11.0 224
    14x1.0 2 0.4 1.0 11.6 255
    16x1.0 2 0.4 1.1 12.4 292
    20x1.0 2 0.4 1.2 13.5 360
    24x1.0 2 0.4 1.2 15.3 427
    27x1.0 2 0.4 1.2 15.6 471
    30x1.0 2 0.4 1.2 16.2 516
    37x1.0 2 0.4 1.3 17.6 630
    40x1.0 2 0.4 1.3 18.3 676
    1.5mm²
    2x1.5 2 0.5 0.9 7.2 74
    3x1.5 2 0.5 0.9 7.6 97
    4x1.5 2 0.5 1.0 8.5 124
    5x1.5 2 0.5 1.0 9.2 149
    8x1.5 2 0.5 1.1 10.9 224
    10x1.5 2 0.5 1.1 12.8 276
    12x1.5 2 0.5 1.1 13.2 318
    14x1.5 2 0.5 1.2 14.0 370
    16x1.5 2 0.5 1.2 14.8 415
    20x1.5 2 0.5 1.3 16.1 512
    24x1.5 2 0.5 1.3 18.3 609
    27x1.5 2 0.5 1.4 18.9 682
    30x1.5 2 0.5 1.4 19.6 748
    37x1.5 2 0.5 1.4 21.1 901
    40x1.5 2 0.5 1.5 22.1 978

    500V

    <
    Conductor RE-2X(St)Y
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm²   mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.6 0.9 6.3 47
    3x0.5 2 0.6 0.9 6.6 57
    4x0.5 2 0.6 0.9 7.1 69
    5x0.5 2 0.6 0.9 7.8 81
    8x0.5 2 0.6 1.0 9.2 119
    10x0.5 2 0.6 1.0 10.7 146
    12x0.5 2 0.6 1.1 11.2 171
    14x0.5 2 0.6 1.1 11.8 192
    16x0.5 2 0.6 1.1 12.4 214
    20x0.5 2 0.6 1.2 13.6 262
    24x0.5 2 0.6 1.2 15.4 310
    27x0.5 2 0.6 1.2 15.7 339
    30x0.5 2 0.6 1.3 16.5 378
    37x0.5 2 0.6 1.3 17.7 449
    40x0.5 2 0.6 1.3 18.3 480
    0.75mm²
    2x0.75 2 0.6 0.9 6.6 54
    3x0.75 2 0.6 0.9 7.0 68
    4x0.75 2 0.6 0.9 7.6 83
    5x0.75 2 0.6 1.0 8.4 102
    8x0.75 2 0.6 1.0 9.8 145
    10x0.75 2 0.6 1.0 11.4 178
    12x0.75 2 0.6 1.0 11.8 203
    14x0.75 2 0.6 1.1 12.6 236
    16x0.75 2 0.6 1.1 13.3 264
    20x0.75 2 0.6 1.2 14.5 324
    24x0.75 2 0.6 1.3 16.7 392
    27x0.75 2 0.6 1.3 17.0 430
    30x0.75 2 0.6 1.3 17.6 469
    37x0.75 2 0.6 1.4 19.2 570
    40x0.75 2 0.6 1.4 19.9 611
    1.0mm²
    2x1.0 2 0.6 0.9 7.0 64
    3x1.0 2 0.6 0.9 7.4 82
    4x1.0 2 0.6 1.0 8.3 105
    5x1.0 2 0.6 1.0 9.0 124
    8x1.0 2 0.6 1.0 10.5 179
    10x1.0 2 0.6 1.1 12.5 226
    12x1.0 2 0.6 1.1 12.9 260
    14x1.0 2 0.6 1.1 13.5 295
    16x1.0 2 0.6 1.2 14.4 337
    20x1.0 2 0.6 1.2 15.6 407
    24x1.0 2 0.6 1.3 17.9 492
    27x1.0 2 0.6 1.3 18.3 541
    30x1.0 2 0.6 1.3 19.0 592
    37x1.0 2 0.6 1.4 20.6 721
    40x1.0 2 0.6 1.4 21.4 774
    1.5mm²
    2x1.5 2 0.6 0.9 7.6 78
    3x1.5 2 0.6 1.0 8.2 106
    4x1.5 2 0.6 1.0 8.9 131
    5x1.5 2 0.6 1.0 9.7 157
    8x1.5 2 0.6 1.1 11.6 236
    10x1.5 2 0.6 1.2 13.8 297
    12x1.5 2 0.6 1.2 14.2 342
    14x1.5 2 0.6 1.2 14.9 389
    16x1.5 2 0.6 1.2 15.7 437
    20x1.5 2 0.6 1.3 17.2 539
    24x1.5 2 0.6 1.4 19.7 650
    27x1.5 2 0.6 1.4 20.2 717
    30x1.5 2 0.6 1.4 20.9 786
    37x1.5 2 0.6 1.5 22.7 958
    40x1.5 2 0.6 1.5 23.6 1028
    2.5mm²
    2x2.5 2 0.7 1.0 9.0 113
    3x2.5 2 0.7 1.0 9.5 149
    4x2.5 2 0.7 1.0 10.4 187
    5x2.5 2 0.7 1.1 11.6 232
    8x2.5 2 0.7 1.2 13.9 351
    10x2.5 2 0.7 1.3 16.4 441
    12x2.5 2 0.7 1.3 17.0 511
    14x2.5 2 0.7 1.3 17.9 584
    16x2.5 2 0.7 1.4 19.0 667
    20x2.5 2 0.7 1.4 20.6 811
    24x2.5 2 0.7 1.5 23.7 977
    27x2.5 2 0.7 1.6 24.4 1093
    30x2.5 2 0.7 1.6 25.3 1200
    37x2.5 2 0.7 1.7 27.5 1463
    40x2.5 2 0.7 1.7 28.5 1572

    Note: Other conductor sizes & core configurations are available upon request.
