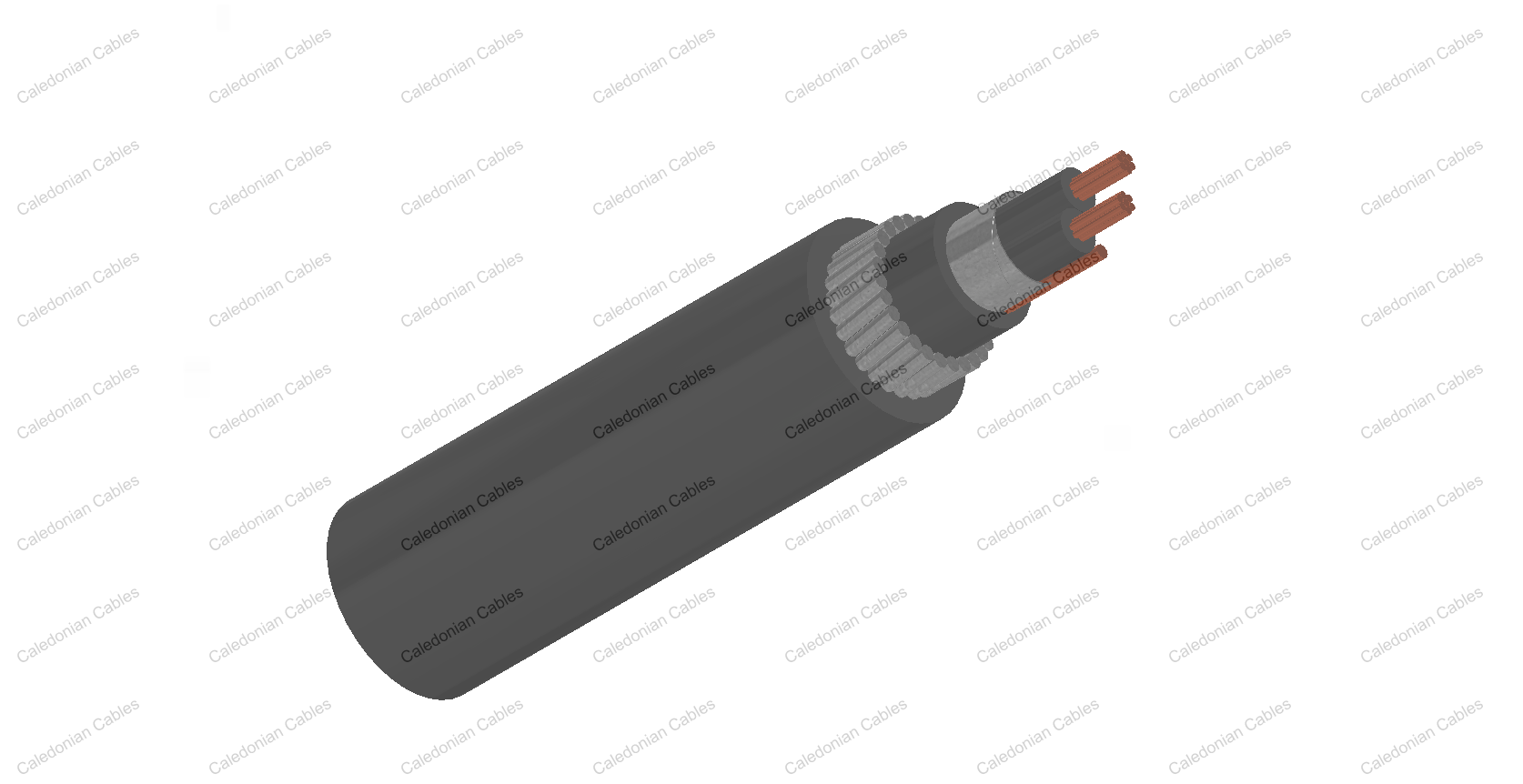

    Flame Retardant Overall Screened, Armoured Instrumentation Cables (Multicore)

    RE-2X(St)YSWAY

    i

    APPLICATION

    The armoured XLPE versions are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services.

    STANDARDS

    Basic design to BS EN 50288-7 (formerly BS 5308)

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) : BS EN 60332-1-2

    VOLTAGE RATING

    300V, 500V

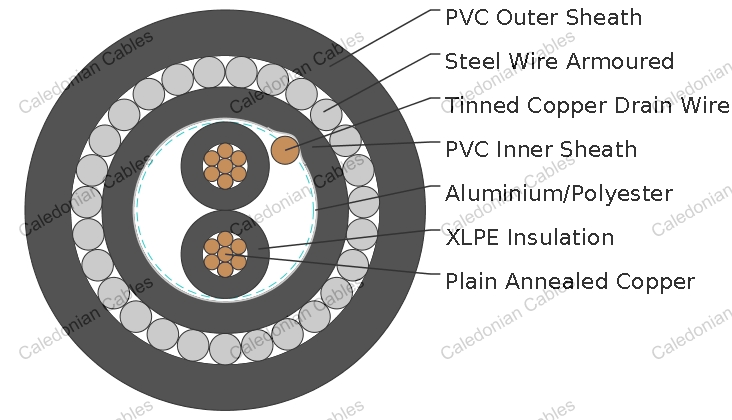

    CABLE CONSTRUCTION

    Conductor : Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.

    Insulation : Extruded XLPE compound according to EN 50290-2-29. PVC, PE, PP compound can be offered as options.

    Overall Screen : Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.

    Inner Sheath : Thermoplastic PVC compound according to EN 50290-2-22.

    Armouring : Galvanised steel wire.

    Outer Sheath : Thermoplastic PVC compound according to EN 50290-2-22.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    Insulation Colour : Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.

    Outer Sheath : Black. Other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation : -30°C - +90°C

    Temperature range fixed installation : -5°C - +50°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius : 10 x Overall Diameter

    ELECTRICAL PROPERTIES

    300V

    Conductor Area Size mm² 0.5 0.75 1.0 1.5
    Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
    Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
    Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
    Minimum Insulation Resistance (20°C) Mohm/km 1000
    Maximum Mutual Capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum L/R (ratio) μH/Ω 25 25 25 40
    Operating Voltage V 300
    Dielectric Strength for 1 Minute AC V ≥1000
    DC V ≥2000

    500V

    Conductor Area Size mm² 0.5 0.75 1.0 1.5 2.5
    Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
    Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
    Minimum Insulation Resistance (20°C) Mohm/km 1000
    Maximum Mutual Capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum L/R (ratio) μH/Ω 25 25 25 40 60
    Operating Voltage V 500
    Dielectric Strength for 1 Minute AC V ≥2000
    DC V ≥3000

    CONSTRUCTION PARAMETERS

    300V

    Conductor RE-2X(St)YSWAY
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² mm mm mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.4 0.9 0.9 1.3 9.9 201
    3x0.5 2 0.4 0.9 0.9 1.3 10.1 217
    4x0.5 2 0.4 0.9 0.9 1.3 10.6 238
    5x0.5 2 0.4 0.9 0.9 1.3 11.1 260
    8x0.5 2 0.4 1.0 0.9 1.4 12.5 329
    10x0.5 2 0.4 1.0 0.9 1.4 13.7 382
    12x0.5 2 0.4 1.0 0.9 1.4 14.0 405
    14x0.5 2 0.4 1.0 0.9 1.4 14.4 434
    16x0.5 2 0.4 1.0 0.9 1.4 15.0 464
    20x0.5 2 0.4 1.1 0.9 1.5 16.1 537
    24x0.5 2 0.4 1.1 0.9 1.5 17.6 614
    27x0.5 2 0.4 1.1 0.9 1.5 17.8 645
    30x0.5 2 0.4 1.2 0.9 1.5 18.5 695
    37x0.5 2 0.4 1.2 0.9 1.6 19.7 789
    40x0.5 2 0.4 1.2 1.25 1.6 20.9 953
    0.75mm²
    2x0.75 2 0.4 0.9 0.9 1.3 10.2 217
    3x0.75 2 0.4 0.9 0.9 1.3 10.5 237
    4x0.75 2 0.4 0.9 0.9 1.4 11.2 266
    5x0.75 2 0.4 1.0 0.9 1.4 12.0 302
    8x0.75 2 0.4 1.0 0.9 1.4 13.1 368
    10x0.75 2 0.4 1.1 0.9 1.5 14.8 447
    12x0.75 2 0.4 1.1 0.9 1.5 15.1 477
    14x0.75 2 0.4 1.1 0.9 1.5 15.6 513
    16x0.75 2 0.4 1.1 0.9 1.5 16.2 551
    20x0.75 2 0.4 1.2 0.9 1.6 17.4 639
    24x0.75 2 0.4 1.3 0.9 1.6 19.3 746
    27x0.75 2 0.4 1.3 0.9 1.6 19.6 787
    30x0.75 2 0.4 1.3 1.25 1.6 20.8 957
    37x0.75 2 0.4 1.3 1.25 1.7 22.1 1084
    40x0.75 2 0.4 1.4 1.25 1.7 22.8 1153
    1.0mm²
    2x1.0 2 0.4 0.9 0.9 1.3 10.6 237
    3x1.0 2 0.4 0.9 0.9 1.3 11.0 261
    4x1.0 2 0.4 0.9 0.9 1.4 11.7 296
    5x1.0 2 0.4 0.9 0.9 1.4 12.3 329
    8x1.0 2 0.4 1.0 0.9 1.4 13.8 419
    10x1.0 2 0.4 1.0 0.9 1.5 15.5 500
    12x1.0 2 0.4 1.0 0.9 1.5 15.8 538
    14x1.0 2 0.4 1.0 0.9 1.5 16.4 583
    16x1.0 2 0.4 1.1 0.9 1.5 17.2 641
    20x1.0 2 0.4 1.2 0.9 1.5 18.3 739
    24x1.0 2 0.4 1.2 1.25 1.6 21.0 987
    27x1.0 2 0.4 1.2 1.25 1.6 21.3 1042
    30x1.0 2 0.4 1.2 1.25 1.6 21.9 1106
    37x1.0 2 0.4 1.3 1.25 1.7 23.5 1278
    40x1.0 2 0.4 1.3 1.25 1.7 24.2 1346
    1.5mm²
    2x1.5 2 0.5 0.9 0.9 1.4 11.8 284
    3x1.5 2 0.5 0.9 0.9 1.4 12.2 316
    4x1.5 2 0.5 1.0 0.9 1.4 13.1 366
    5x1.5 2 0.5 1.0 0.9 1.4 13.8 409
    8x1.5 2 0.5 1.1 0.9 1.5 15.7 536
    10x1.5 2 0.5 1.1 0.9 1.5 17.6 635
    12x1.5 2 0.5 1.1 0.9 1.5 18.0 688
    14x1.5 2 0.5 1.2 0.9 1.5 18.8 762
    16x1.5 2 0.5 1.2 0.9 1.6 19.8 836
    20x1.5 2 0.5 1.3 1.25 1.6 21.8 1100
    24x1.5 2 0.5 1.3 1.25 1.7 24.2 1281
    27x1.5 2 0.5 1.4 1.25 1.7 24.8 1375
    30x1.5 2 0.5 1.4 1.25 1.7 25.5 1464
    37x1.5 2 0.5 1.4 1.25 1.8 27.2 1681
    40x1.5 2 0.5 1.5 1.25 1.8 28.2 1792

    500V

    Conductor RE-2X(St)YSWAY
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² mm mm mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.6 0.9 0.9 1.3 10.7 228
    3x0.5 2 0.6 0.9 0.9 1.3 11.0 247
    4x0.5 2 0.6 0.9 0.9 1.4 11.7 278
    5x0.5 2 0.6 0.9 0.9 1.4 12.4 305
    8x0.5 2 0.6 1.0 0.9 1.4 13.8 381
    10x0.5 2 0.6 1.0 0.9 1.5 15.5 452
    12x0.5 2 0.6 1.1 0.9 1.5 16.0 491
    14x0.5 2 0.6 1.1 0.9 1.5 16.6 527
    16x0.5 2 0.6 1.1 0.9 1.5 17.2 564
    20x0.5 2 0.6 1.2 0.9 1.5 18.4 643
    24x0.5 2 0.6 1.2 1.25 1.6 21.1 872
    27x0.5 2 0.6 1.2 1.25 1.6 21.4 912
    30x0.5 2 0.6 1.3 1.25 1.6 22.2 976
    37x0.5 2 0.6 1.3 1.25 1.6 23.4 1090
    40x0.5 2 0.6 1.3 1.25 1.7 24.2 1153
    0.75mm²
    2x0.75 2 0.6 0.9 0.9 1.3 11.0 245
    3x0.75 2 0.6 0.9 0.9 1.3 11.4 267
    4x0.75 2 0.6 0.9 0.9 1.4 12.2 302
    5x0.75 2 0.6 1.0 0.9 1.4 13.0 343
    8x0.75 2 0.6 1.0 0.9 1.4 14.4 422
    10x0.75 2 0.6 1.0 0.9 1.5 16.2 503
    12x0.75 2 0.6 1.0 0.9 1.5 16.6 537
    14x0.75 2 0.6 1.1 0.9 1.5 17.4 591
    16x0.75 2 0.6 1.1 0.9 1.5 18.1 636
    20x0.75 2 0.6 1.2 0.9 1.6 19.5 738
    24x0.75 2 0.6 1.3 1.25 1.6 22.4 997
    27x0.75 2 0.6 1.3 1.25 1.6 22.7 1047
    30x0.75 2 0.6 1.3 1.25 1.6 23.3 1106
    37x0.75 2 0.6 1.4 1.25 1.7 25.1 1271
    40x0.75 2 0.6 1.4 1.25 1.7 25.8 1335
    1.0mm²
    2x1.0 2 0.6 0.9 0.9 1.3 11.4 265
    3x1.0 2 0.6 0.9 0.9 1.4 12.0 297
    4x1.0 2 0.6 1.0 0.9 1.4 12.9 342
    5x1.0 2 0.6 1.0 0.9 1.4 13.6 380
    8x1.0 2 0.6 1.0 0.9 1.4 15.1 473
    10x1.0 2 0.6 1.1 0.9 1.5 17.3 578
    12x1.0 2 0.6 1.1 0.9 1.5 17.7 622
    14x1.0 2 0.6 1.1 0.9 1.5 18.3 674
    16x1.0 2 0.6 1.2 0.9 1.6 19.4 749
    20x1.0 2 0.6 1.2 1.25 1.6 21.3 976
    24x1.0 2 0.6 1.3 1.25 1.6 23.6 1139
    27x1.0 2 0.6 1.3 1.25 1.7 24.2 1213
    30x1.0 2 0.6 1.3 1.25 1.7 24.9 1286
    37x1.0 2 0.6 1.4 1.25 1.7 26.5 1472
    40x1.0 2 0.6 1.4 1.25 1.8 27.5 1563
    1.5mm²
    2x1.5 2 0.6 0.9 0.9 1.3 12.2 298
    3x1.5 2 0.6 1.0 0.9 1.4 12.8 341
    4x1.5 2 0.6 1.0 0.9 1.4 13.5 385
    5x1.5 2 0.6 1.0 0.9 1.4 14.3 431
    8x1.5 2 0.6 1.1 0.9 1.5 16.4 565
    10x1.5 2 0.6 1.2 0.9 1.5 18.6 682
    12x1.5 2 0.6 1.2 0.9 1.6 19.2 747
    14x1.5 2 0.6 1.2 0.9 1.6 19.9 814
    16x1.5 2 0.6 1.2 1.25 1.6 21.4 1010
    20x1.5 2 0.6 1.3 1.25 1.7 23.1 1172
    24x1.5 2 0.6 1.4 1.25 1.7 25.6 1371
    27x1.5 2 0.6 1.4 1.25 1.7 26.1 1452
    30x1.5 2 0.6 1.4 1.25 1.8 27.0 1558
    37x1.5 2 0.6 1.5 1.25 1.8 28.8 1794
    40x1.5 2 0.6 1.5 1.25 1.8 29.7 1893
    2.5mm²
    2x2.5 2 0.7 1.0 0.9 1.4 13.6 369
    3x2.5 2 0.7 1.0 0.9 1.4 14.1 419
    4x2.5 2 0.7 1.0 0.9 1.4 15.0 479
    5x2.5 2 0.7 1.1 0.9 1.5 16.4 561
    8x2.5 2 0.7 1.2 0.9 1.5 18.6 738
    10x2.5 2 0.7 1.3 1.25 1.6 22.1 1039
    12x2.5 2 0.7 1.3 1.25 1.6 22.7 1127
    14x2.5 2 0.7 1.3 1.25 1.7 23.8 1240
    16x2.5 2 0.7 1.4 1.25 1.7 25.0 1363
    20x2.5 2 0.7 1.4 1.25 1.8 26.7 1572
    24x2.5 2 0.7 1.5 1.25 1.8 29.8 1845
    27x2.5 2 0.7 1.6 1.25 1.9 30.7 2000
    30x2.5 2 0.7 1.6 1.6 1.9 32.3 2339
    37x2.5 2 0.7 1.7 1.6 1.9 34.5 2695
    40x2.5 2 0.7 1.7 1.6 2.0 35.7 2864

    Note: Other conductor sizes & core configurations are available upon request.
