300/500V Mica+SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

FFX200E 05mSOZ1-U/R PH120 (CU/MGT+SR/OSCR/LSZH 300/500V Class 1/2)

APPLICATION

The cables are primarily intended for use in the following applications:

BS 5266-1 for emergency lighting of premises.

BS 5839-1 for fire detection and fire alarm systems in and around building.

BS 5839-8 for voice alarm systems.

BS 5839-9 for emergency voice communication systems.

STANDARDS

Basic design to BS 7629-1:2015

FIRE PERFORMANCE

Circuit Integrity	BS 6387; BS EN50200; BS 8434-2
Flame Retardance (Single vertical wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300/500V

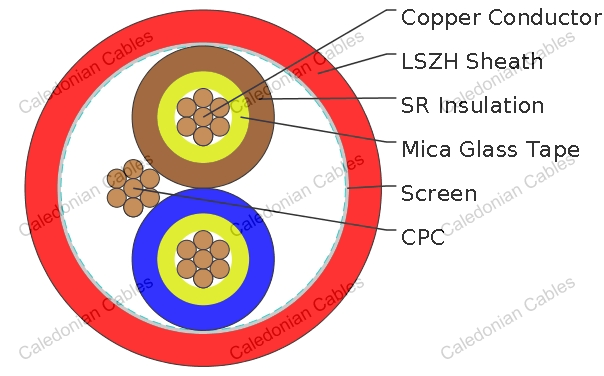

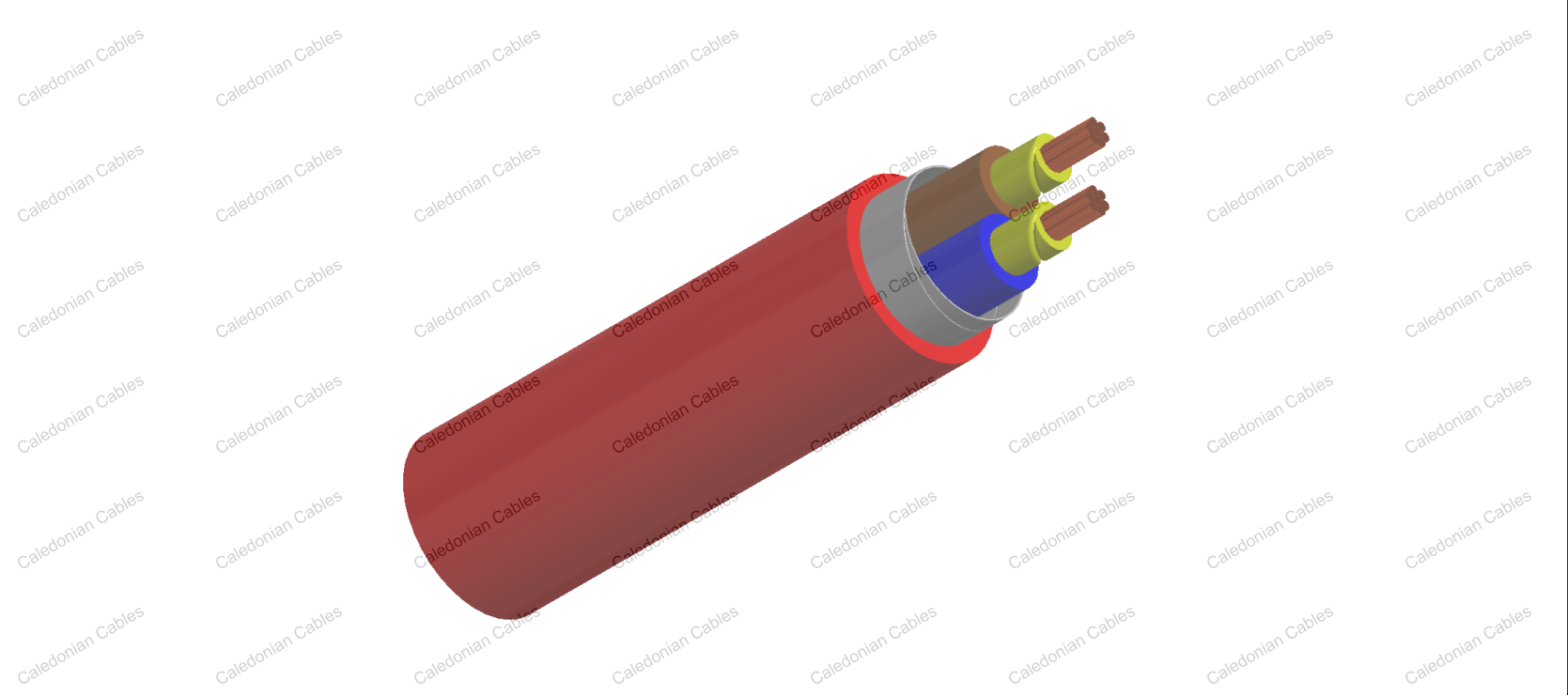

CABLE CONSTRUCTION

Conductor : Copper conductor according to BS EN 60228 class 1/2.

Fire Barrier : Mica glass tape.

Insulation : Fire resistant special ceramized silicone rubber compound type EI 2 as per BS EN 50363-1.

Screened : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor or drain wire.

Circuit Protective Conductor : Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the two,three and four cores cables.

Sheath : Extruded LSZH type LTS 3 according to BS 7655-6.1.

Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour :

Number of cores	Core colours or numbering
2 cores+uninsulated circuit protective conductor	Brown, Blue or Brown, Brown
3 cores+uninsulated circuit protective conductor	Brown, Black, Grey
4 cores+uninsulated circuit protective conductor	Brown, Blue, Black, Grey
7, 12 and19 cores+uninsulated drain wire	Numbers 1, 2, 3, 4, 5, 6, 7 and upwards or, for identification by colour, an identical colour(excluding brown and black),except for two adjacent cores in each layer distinctively coloured brown and black.

Sheath Colour : Colours upon request.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 70°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor	FFX200E 05mSOZ1-U/R PH120
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness	CPC Nominal Cross-sectional Area	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
no.×mm²		mm	mm²	mm	mm	kg/km
2 cores
2x1.0	1/2	0.6	1.0	0.9	10.0	103
2x1.5	1/2	0.7	1.5	0.9	10.5	130
2x2.5	1/2	0.8	2.5	1.0	12.5	181
2x4.0	1/2	0.8	4.0	1.1	14.5	246
3 cores
3x1.5	1/2	0.7	1.5	0.9	11.7	166
3x2.5	1/2	0.8	2.5	1.0	13.7	232
3x4.0	1/2	0.8	4.0	1.1	15.7	318
4 cores
4x1.5	1/2	0.7	1.5	1.0	12.9	211
4x2.5	1/2	0.8	2.5	1.1	14.4	294
4x4.0	1/2	0.8	4.0	1.2	17.4	403
7 cores
7x1.5	1/2	0.7	0.5	1.1	15.5	331
7x2.5	1/2	0.8	0.5	1.2	18.0	698
12 cores
12x1.5	1/2	0.7	0.5	1.2	20.2	537
12x2.5	1/2	0.8	0.5	1.4	24.2	1093
19 cores
19x1.5	1/2	0.7	0.5	1.3	24.0	802

ELECTRICAL PROPERTIES

Conductor operating temperature : 70°C

Ambient temperature : 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D2A

Conductor cross-sectional area	Ref. Method A (enclosed in conduit in thermally insulating wall etc)		Ref. Method B (enclosed in conduit on a wall or in trunking etc)		Ref. Method C (clipped direct)		Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical)
Conductor cross-sectional area	1 two-core cable*, single-phase a.c. or d.c.	1 three-core or 1 four-core cable*, three-phase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three-core or 1 four-core cable*, three-phase a.c.	1 two-core cable*, single-phase a.c. or d.c.	1 three-core or 1 four-core cable*, three-phase a.c.	1 two-core cable*, single-phase a.c. or d.c.	1 three-core or 1 four-core cable*, three-phase a.c.
1	2	3	4	5	6	7	8	9
mm²	A	A	A	A	A	A	A	A
1.0	11	10	13	11.5	15	13.5	17	14.5
1.5	14	13	16.5	15	19.5	17.5	22	18.5
2.5	18.5	17.5	23	20	27	24	30	25
4	25	23	30	27	36	32	40	34

Note: *With or without a protective conductor.

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D2B

Conductor cross-sectional area	Two-core cable d.c.	Two-core cable single-phase a.c.	Three- or four-core cable, three-phase a.c.
1	2	3	4
mm²	mV/A/m	mV/A/m	mV/A/m
1.0	44	44	38
1.5	29	29	25
2.5	18	18	15
4	11	11	9.5
