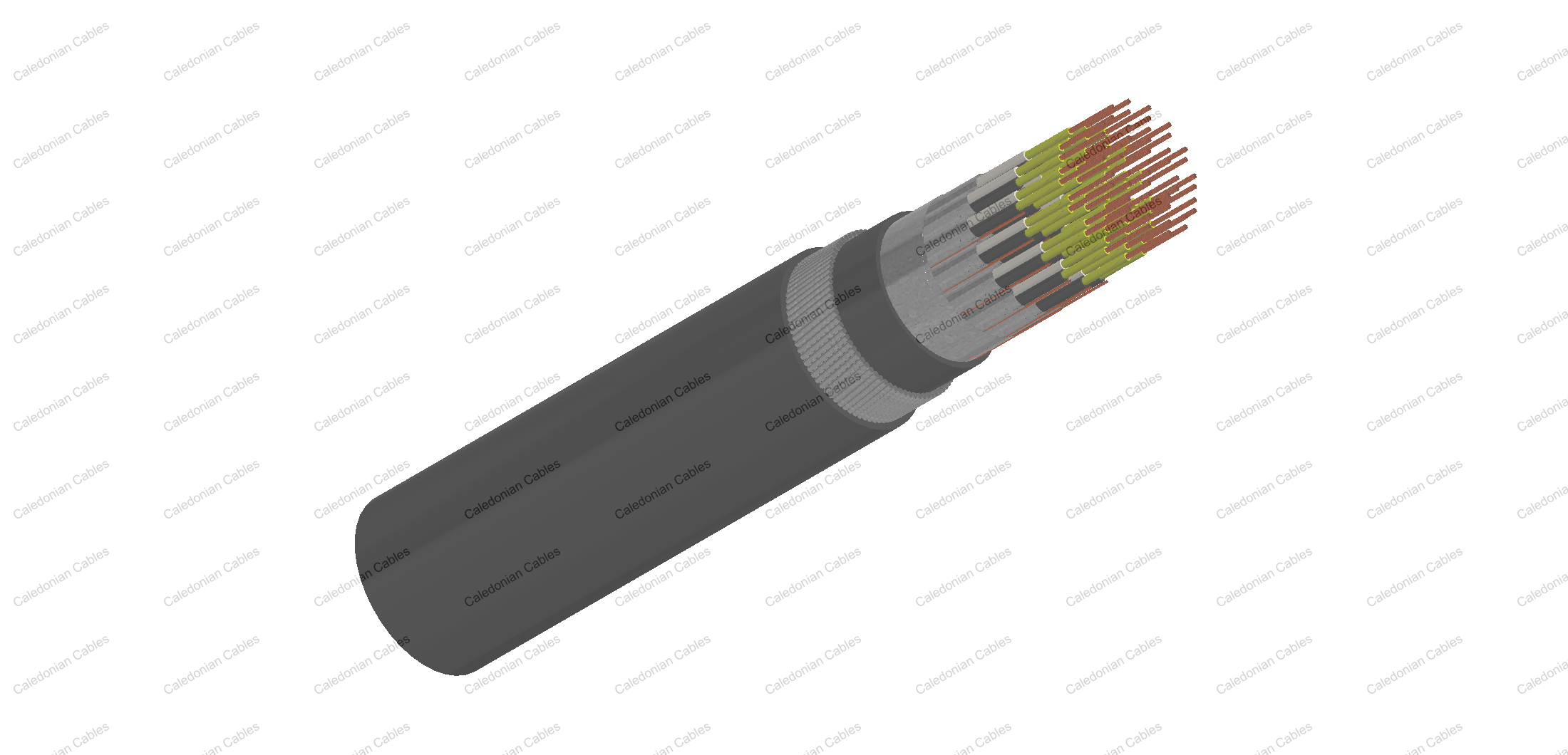

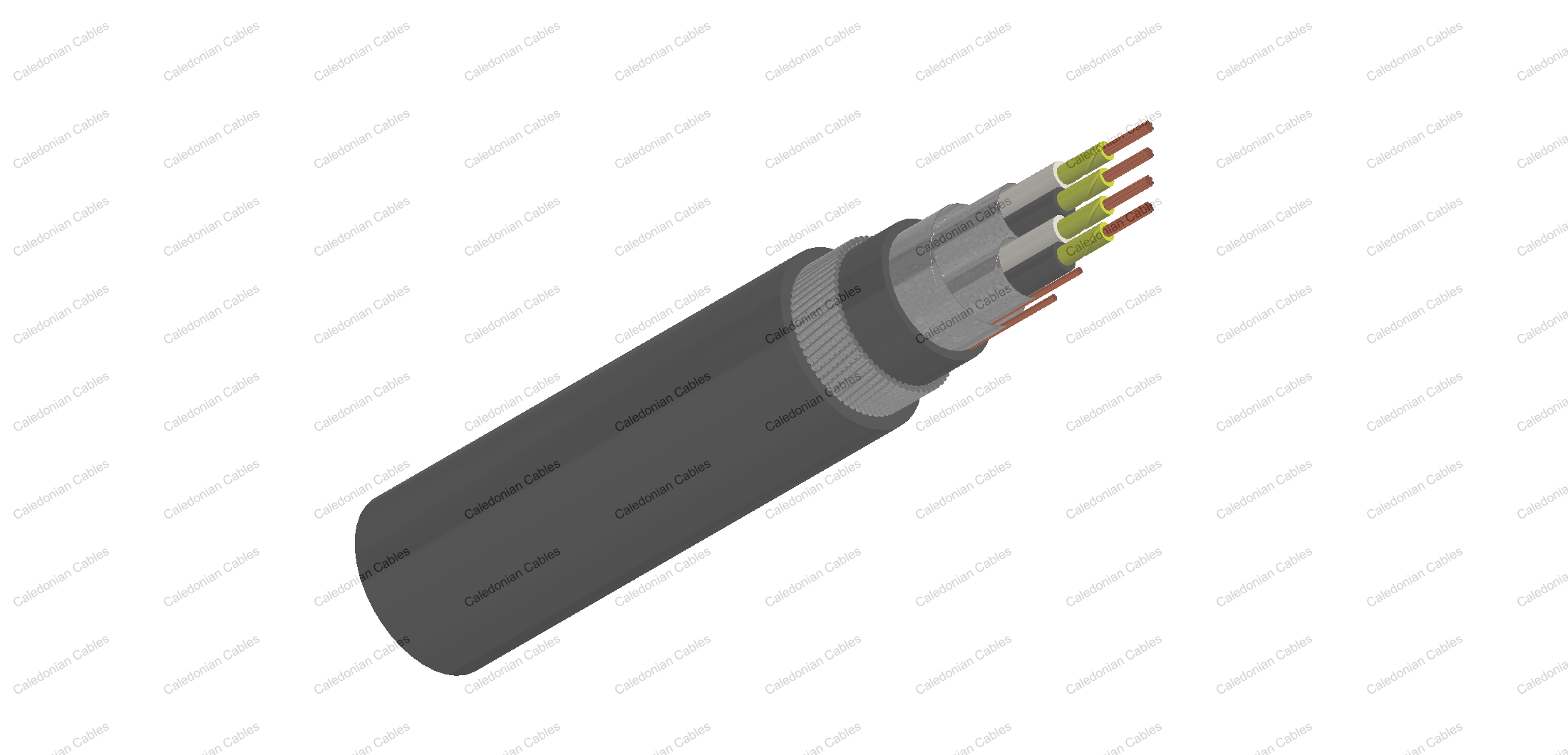

    Fire Resistant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)

    RE-2X(St)HSWAH PiMF...CI

    i

    APPLICATION

    The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    STANDARDS

    Basic design to BS EN 50288-7 (formerly BS 5308)

    FIRE PERFORMANCE

    Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
    Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    300, 500V

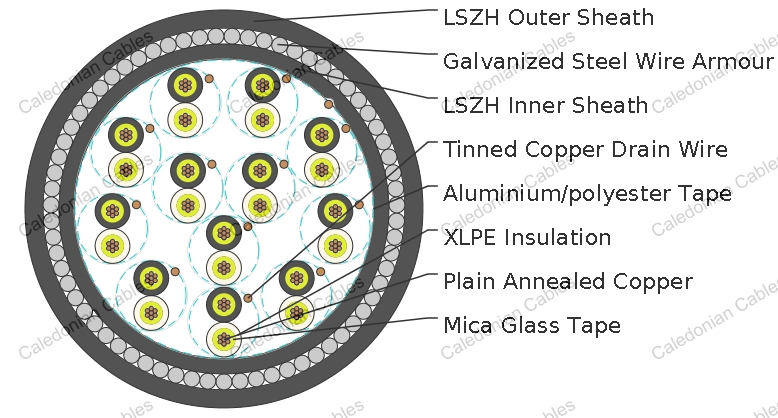

    CABLE CONSTRUCTION

    Conductor Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
    Fire Barrier Mica glass tape.
    Insulation Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
    Pairs Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or 150mm (for 2.5mm²).
    Individual Screen Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm².
    Binder Tape PETP transparent tape.
    Overall Screen Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.
    Inner Sheath Thermoplastic LSZH compound.
    Amouring Galvanized steel wire armour.
    Outer Sheath Thermoplastic LSZH compound according to EN 50290-2-22.
    Outer Sheath Option Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
    Outer Sheath Black. Other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation -30°C - +90°C
    Temperature range during installation -5°C - +50°C
    Maximum short circuit temperature (5 Seconds) 250°C
    Minimum bending radius 10 x Overall Diameter

    ELECTRICAL PROPERTIES

    300V

    Conductor area size mm² 0.5 0.75 1.0 1.5
    Insulation thickness (Nominal) mm 0.4 0.4 0.4 0.5
    Insulation thickness (Minimum) mm 0.26 0.26 0.26 0.35
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40
    Operating Voltage V 300
    Dielectric strength for 1 minute AC V ≥1000
    DC V ≥2000

    500v

    Conductor area size mm² 0.5 0.75 1.0 1.5 2.5
    Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
    Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40 60
    Operating Voltage V 500
    Dielectric strength for 1 minute AC V ≥2000
    DC V ≥3000

    CONSTRUCTION PARAMETERS

    300V

    Conductor RE-2X(St)HSWAH PiMF...CI
    No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² 　 mm mm mm mm mm kg/km
    0.5mm²
    2x2x0.5 2 0.4 1.0 0.9 1.4 16.6 490
    3x2x0.5 2 0.4 1.0 0.9 1.4 17.3 546
    4x2x0.5 2 0.4 1.1 0.9 1.5 19.0 644
    5x2x0.5 2 0.4 1.1 1.25 1.5 20.7 851
    8x2x0.5 2 0.4 1.1 1.25 1.5 24.0 1067
    10x2x0.5 2 0.4 1.2 1.25 1.6 28.0 1309
    12x2x0.5 2 0.4 1.2 1.25 1.6 28.6 1403
    16x2x0.5 2 0.4 1.3 1.6 1.7 32.4 1888
    20x2x0.5 2 0.4 1.4 1.6 1.7 34.8 2152
    24x2x0.5 2 0.4 1.5 1.6 1.8 39.3 2542
    0.75mm²
    2x2x0.75 2 0.4 1.0 0.9 1.4 17.2 524
    3x2x0.75 2 0.4 1.1 0.9 1.5 18.4 613
    4x2x0.75 2 0.4 1.1 0.9 1.5 19.8 697
    5x2x0.75 2 0.4 1.2 1.25 1.5 22.2 937
    8x2x0.75 2 0.4 1.2 1.25 1.6 25.5 1197
    10x2x0.75 2 0.4 1.3 1.25 1.6 29.3 1451
    12x2x0.75 2 0.4 1.3 1.25 1.6 30.0 1578
    16x2x0.75 2 0.4 1.4 1.6 1.7 34.1 2095
    20x2x0.75 2 0.4 1.5 1.6 1.8 36.8 2415
    24x2x0.75 2 0.4 1.5 1.6 1.8 41.3 2800
    1.0mm²
    2x2x1.0 2 0.4 1.0 0.9 1.4 18.0 567
    3x2x1.0 2 0.4 1.1 0.9 1.5 19.2 667
    4x2x1.0 2 0.4 1.2 1.25 1.5 21.6 909
    5x2x1.0 2 0.4 1.2 1.25 1.6 23.4 1036
    8x2x1.0 2 0.4 1.2 1.25 1.6 26.7 1319
    10x2x1.0 2 0.4 1.3 1.6 1.7 31.7 1821
    12x2x1.0 2 0.4 1.4 1.6 1.7 32.8 1982
    16x2x1.0 2 0.4 1.5 1.6 1.8 36.2 2372
    20x2x1.0 2 0.4 1.5 1.6 1.8 38.8 2692
    24x2x1.0 2 0.4 1.6 2.0 1.9 43.9 3516
    1.5mm²
    2x2x1.5 2 0.5 1.1 1.25 1.5 20.7 805
    3x2x1.5 2 0.5 1.2 1.25 1.6 22.1 937
    4x2x1.5 2 0.5 1.2 1.25 1.6 23.8 1072
    5x2x1.5 2 0.5 1.3 1.25 1.6 25.8 1232
    8x2x1.5 2 0.5 1.3 1.25 1.7 29.9 1604
    10x2x1.5 2 0.5 1.4 1.6 1.8 35.5 2198
    12x2x1.5 2 0.5 1.5 1.6 1.8 36.7 2400
    16x2x1.5 2 0.5 1.6 1.6 1.9 40.6 2887
    20x2x1.5 2 0.5 1.7 2.0 2.0 43.9 3679
    24x2x1.5 2 0.5 1.8 2.0 2.0 49.5 4311

    500v

    Conductor RE-2X(St)HSWAH PiMF...CI
    No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² 　 mm mm mm mm mm kg/km
    0.5mm²
    2x2x0.5 2 0.6 1.0 0.9 1.4 18.0 548
    3x2x0.5 2 0.6 1.1 0.9 1.5 19.3 638
    4x2x0.5 2 0.6 1.1 1.25 1.5 21.4 853
    5x2x0.5 2 0.6 1.2 1.25 1.6 23.4 987
    8x2x0.5 2 0.6 1.2 1.25 1.6 26.8 1241
    10x2x0.5 2 0.6 1.3 1.25 1.7 31.1 1522
    12x2x0.5 2 0.6 1.4 1.25 1.7 32.2 1656
    16x2x0.5 2 0.6 1.5 1.6 1.8 36.3 2214
    20x2x0.5 2 0.6 1.5 1.6 1.8 38.9 2493
    24x2x0.5 2 0.6 1.6 2.0 1.9 44.0 3278
    0.75mm²
    2x2x0.75 2 0.6 1.1 0.9 1.5 19.0 608
    3x2x0.75 2 0.6 1.1 1.25 1.5 20.7 806
    4x2x0.75 2 0.6 1.2 1.25 1.6 22.6 943
    5x2x0.75 2 0.6 1.2 1.25 1.6 24.3 1059
    8x2x0.75 2 0.6 1.3 1.25 1.6 28.0 1361
    10x2x0.75 2 0.6 1.4 1.6 1.7 33.3 1882
    12x2x0.75 2 0.6 1.4 1.6 1.7 34.2 2014
    16x2x0.75 2 0.6 1.5 1.6 1.8 37.8 2402
    20x2x0.75 2 0.6 1.6 1.6 1.9 40.9 2769
    24x2x0.75 2 0.6 1.7 2.0 2.0 46.3 3622
    1.0mm²
    2x2x1.0 2 0.6 1.1 0.9 1.5 19.8 652
    3x2x1.0 2 0.6 1.2 1.25 1.5 21.7 883
    4x2x1.0 2 0.6 1.2 1.25 1.6 23.5 1018
    5x2x1.0 2 0.6 1.3 1.25 1.6 25.5 1167
    8x2x1.0 2 0.6 1.3 1.25 1.7 29.6 1504
    10x2x1.0 2 0.6 1.4 1.6 1.7 34.8 2049
    12x2x1.0 2 0.6 1.5 1.6 1.8 36.1 2250
    16x2x1.0 2 0.6 1.6 1.6 1.9 40.0 2692
    20x2x1.0 2 0.6 1.7 2.0 1.9 43.0 3409
    24x2x1.0 2 0.6 1.8 2.0 2.0 48.8 4017
    1.5mm²
    2x2x1.5 2 0.6 1.1 1.25 1.5 21.5 841
    3x2x1.5 2 0.6 1.2 1.25 1.6 22.9 980
    4x2x1.5 2 0.6 1.3 1.25 1.6 24.9 1140
    5x2x1.5 2 0.6 1.3 1.25 1.7 27.0 1305
    8x2x1.5 2 0.6 1.4 1.6 1.7 32.0 1905
    10x2x1.5 2 0.6 1.5 1.6 1.8 37.1 2331
    12x2x1.5 2 0.6 1.6 1.6 1.9 38.5 2566
    16x2x1.5 2 0.6 1.7 2.0 2.0 42.6 3401
    20x2x1.5 2 0.6 1.8 2.0 2.0 45.9 3892
    24x2x1.5 2 0.6 1.9 2.0 2.1 52.1 4590
    2.5mm²
    2x2x2.5 2 0.7 1.2 1.25 1.6 24.1 1022
    3x2x2.5 2 0.7 1.3 1.25 1.0 25.5 1186
    4x2x2.5 2 0.7 1.4 1.25 1.7 27.9 1405
    5x2x2.5 2 0.7 1.5 1.25 1.8 30.6 1639
    8x2x2.5 2 0.7 1.6 1.6 1.8 36.2 2392
    10x2x2.5 2 0.7 1.7 1.6 2.0 42.3 2955
    12x2x2.5 2 0.7 1.8 2.0 2.0 43.7 3567
    16x2x2.5 2 0.7 1.9 2.0 2.1 48.5 4280
    20x2x2.5 2 0.7 2.1 2.5 2.2 52.6 5499
    24x2x2.5 2 0.7 2.2 2.5 2.4 59.9 6505
