    Fire Resistant Overall Screened, Armoured Instrumentation Cables (Multicore)

    RE-2X(St)HSWAH...CI

    i

    APPLICATION

    The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    STANDARDS

    Basic design to BS EN 50288-7 (formerly BS 5308)

    FIRE PERFORMANCE

    Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
    Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    300, 500V

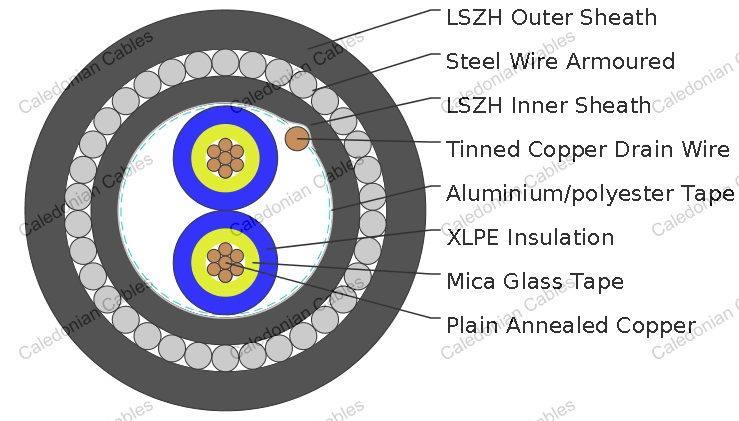

    CABLE CONSTRUCTION

    Conductor Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
    Fire Barrier Mica glass tape.
    Insulation Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
    Overall Screen Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.
    Inner Sheath Thermoplastic LSZH compound.
    Armouring Galvanised steel wire.
    Outer Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
    Outer Sheath Black. Other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation -30°C - +90°C
    Temperature range fixed installation -5°C - +50°C
    Maximum short circuit temperature (5 Seconds) 250°C
    Minimum bending radius 10 x Overall Diameter

    ELECTRICAL PROPERTIES

    300V

    Conductor area size mm² 0.5 0.75 1.0 1.5
    Insulation thickness (Nominal) mm 0.4 0.4 0.4 0.5
    Insulation thickness (Minimum) mm 0.26 0.26 0.26 0.35
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40
    Operating Voltage V 300
    Dielectric strength for 1 minute AC V ≥1000
    DC V ≥2000

    500v

    Conductor area size mm² 0.5 0.75 1.0 1.5 2.5
    Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
    Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40 60
    Operating Voltage V 500
    Dielectric strength for 1 minute AC V ≥2000
    DC V ≥3000

    CONSTRUCTION PARAMETERS

    300V

    Conductor RE-2X(St)HSWAH...CI
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath
    Thickness    		 Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² 　 mm mm mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.4 0.9 0.9 1.3 11.8 287
    3x0.5 2 0.4 0.9 0.9 1.3 12.2 312
    4x0.5 2 0.4 0.9 0.9 1.3 12.9 346
    5x0.5 2 0.4 0.9 0.9 1.3 13.7 383
    8x0.5 2 0.4 1.0 0.9 1.4 15.7 491
    10x0.5 2 0.4 1.0 0.9 1.4 17.6 579
    12x0.5 2 0.4 1.0 0.9 1.4 18.0 616
    14x0.5 2 0.4 1.0 0.9 1.4 18.7 663
    16x0.5 2 0.4 1.0 0.9 1.4 19.4 713
    20x0.5 2 0.4 1.1 1.25 1.5 21.8 960
    24x0.5 2 0.4 1.1 1.25 1.5 24.0 1103
    27x0.5 2 0.4 1.1 1.25 1.5 24.5 1155
    30x0.5 2 0.4 1.2 1.25 1.5 25.4 1239
    37x0.5 2 0.4 1.2 1.25 1.6 27.1 1403
    40x0.5 2 0.4 1.2 1.25 1.6 27.9 1474
    0.75mm²
    2x0.75 2 0.4 0.9 0.9 1.3 12.1 304
    3x0.75 2 0.4 0.9 0.9 1.3 12.6 333
    4x0.75 2 0.4 0.9 0.9 1.4 13.5 380
    5x0.75 2 0.4 1.0 0.9 1.4 14.5 433
    8x0.75 2 0.4 1.0 0.9 1.4 16.3 536
    10x0.75 2 0.4 1.1 0.9 1.5 18.7 657
    12x0.75 2 0.4 1.1 0.9 1.5 19.1 702
    14x0.75 2 0.4 1.1 0.9 1.5 19.9 758
    16x0.75 2 0.4 1.1 1.25 1.5 21.4 945
    20x0.75 2 0.4 1.2 1.25 1.6 23.1 1089
    24x0.75 2 0.4 1.3 1.25 1.6 25.7 1273
    27x0.75 2 0.4 1.3 1.25 1.6 26.2 1337
    30x0.75 2 0.4 1.3 1.25 1.6 26.9 1414
    37x0.75 2 0.4 1.3 1.25 1.7 28.8 1607
    40x0.75 2 0.4 1.4 1.25 1.7 29.9 1712
    1.0mm²
    2x1.0 2 0.4 0.9 0.9 1.3 12.6 326
    3x1.0 2 0.4 0.9 0.9 1.3 13.0 360
    4x1.0 2 0.4 0.9 0.9 1.4 14.0 413
    5x1.0 2 0.4 0.9 0.9 1.4 15.0 461
    8x1.0 2 0.4 1.0 0.9 1.4 17.0 591
    10x1.0 2 0.4 1.0 0.9 1.5 19.3 713
    12x1.0 2 0.4 1.0 0.9 1.5 19.8 767
    14x1.0 2 0.4 1.0 1.25 1.5 21.3 960
    16x1.0 2 0.4 1.1 1.25 1.5 22.4 1052
    20x1.0 2 0.4 1.2 1.25 1.5 23.0 1204
    24x1.0 2 0.4 1.2 1.25 1.6 26.8 1406
    27x1.0 2 0.4 1.2 1.25 1.6 27.3 1483
    30x1.0 2 0.4 1.2 1.25 1.6 28.1 1574
    37x1.0 2 0.4 1.3 1.25 1.7 30.3 1823
    40x1.0 2 0.4 1.3 1.60 1.7 31.9 2121
    1.5mm²
    2x1.5 2 0.5 0.9 0.9 1.4 13.7 379
    3x1.5 2 0.5 0.9 0.9 1.4 14.2 423
    4x1.5 2 0.5 1.0 0.9 1.4 15.4 491
    5x1.5 2 0.5 1.0 0.9 1.4 16.4 552
    8x1.5 2 0.5 1.1 0.9 1.5 18.9 727
    10x1.5 2 0.5 1.1 1.25 1.5 22.1 1000
    12x1.5 2 0.5 1.1 1.25 1.5 22.6 1075
    14x1.5 2 0.5 1.2 1.25 1.5 23.8 1184
    16x1.5 2 0.5 1.2 1.25 1.6 25.0 1294
    20x1.5 2 0.5 1.3 1.25 1.6 26.8 1488
    24x1.5 2 0.5 1.3 1.25 1.7 30.0 1741
    27x1.5 2 0.5 1.4 1.25 1.7 30.7 1866
    30x1.5 2 0.5 1.4 1.6 1.7 32.4 2191
    37x1.5 2 0.5 1.4 1.6 1.8 34.7 2502
    40x1.5 2 0.5 1.5 1.6 1.8 35.9 2663

    500v

    Conductor RE-2X(St)HSWAH...CI
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm² 　 mm mm mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.6 0.9 0.9 1.3 12.6 317
    3x0.5 2 0.6 0.9 0.9 1.3 13.1 346
    4x0.5 2 0.6 0.9 0.9 1.4 14.1 393
    5x0.5 2 0.6 0.9 0.9 1.4 14.9 437
    8x0.5 2 0.6 1.0 0.9 1.4 17.0 553
    10x0.5 2 0.6 1.0 0.9 1.5 19.4 664
    12x0.5 2 0.6 1.1 0.9 1.5 20.0 723
    14x0.5 2 0.6 1.1 1.25 1.5 21.5 908
    16x0.5 2 0.6 1.1 1.25 1.5 22.4 973
    20x0.5 2 0.6 1.2 1.25 1.5 24.0 1106
    24x0.5 2 0.6 1.2 1.25 1.6 26.8 1288
    27x0.5 2 0.6 1.2 1.25 1.6 27.3 1350
    30x0.5 2 0.6 1.3 1.25 1.6 28.3 1447
    37x0.5 2 0.6 1.3 1.25 1.6 30.1 1623
    40x0.5 2 0.6 1.3 1.6 1.7 32.0 1925
    0.75mm²
    2x0.75 2 0.6 0.9 0.9 1.3 12.9 335
    3x0.75 2 0.6 0.9 0.9 1.3 13.4 368
    4x0.75 2 0.6 0.9 0.9 1.4 14.5 420
    5x0.75 2 0.6 1.0 0.9 1.4 15.6 481
    8x0.75 2 0.6 1.0 0.9 1.4 17.6 598
    10x0.75 2 0.6 1.0 0.9 1.5 20.1 720
    12x0.75 2 0.6 1.0 1.25 1.5 21.3 900
    14x0.75 2 0.6 1.1 1.25 1.5 22.3 986
    16x0.75 2 0.6 1.1 1.25 1.5 23.3 1059
    20x0.75 2 0.6 1.2 1.25 1.6 25.2 1222
    24x0.75 2 0.6 1.3 1.25 1.6 28.1 1431
    27x0.75 2 0.6 1.3 1.25 1.6 28.6 1504
    30x0.75 2 0.6 1.3 1.25 1.6 29.5 1592
    37x0.75 2 0.6 1.4 1.6 1.7 32.5 2041
    40x0.75 2 0.6 1.4 1.6 1.7 33.5 2143
    1.0mm²
    2x1.0 2 0.6 0.9 0.9 1.3 13.4 357
    3x1.0 2 0.6 0.9 0.9 1.4 14.1 403
    4x1.0 2 0.6 1.0 0.9 1.4 15.2 466
    5x1.0 2 0.6 1.0 0.9 1.4 16.2 521
    8x1.0 2 0.6 1.0 0.9 1.4 18.3 655
    10x1.0 2 0.6 1.1 1.25 1.5 21.8 939
    12x1.0 2 0.6 1.1 1.25 1.5 22.4 1003
    14x1.0 2 0.6 1.1 1.25 1.5 23.3 1084
    16x1.0 2 0.6 1.2 1.25 1.6 24.7 1200
    20x1.0 2 0.6 1.2 1.25 1.6 26.3 1353
    24x1.0 2 0.6 1.3 1.25 1.6 29.4 1587
    27x1.0 2 0.6 1.3 1.25 1.7 30.1 1691
    30x1.0 2 0.6 1.3 1.6 1.7 31.7 1995
    37x1.0 2 0.6 1.4 1.6 1.7 34.0 2274
    40x1.0 2 0.6 1.4 1.6 1.8 35.2 2411
    1.5mm²
    2x1.5 2 0.6 0.9 0.9 1.3 14.1 394
    3x1.5 2 0.6 1.0 0.9 1.4 14.9 453
    4x1.5 2 0.6 1.0 0.9 1.4 15.9 513
    5x1.5 2 0.6 1.0 0.9 1.4 17.0 577
    8x1.5 2 0.6 1.1 0.9 1.5 19.6 760
    10x1.5 2 0.6 1.2 1.25 1.5 23.1 1064
    12x1.5 2 0.6 1.2 1.25 1.6 23.9 1157
    14x1.5 2 0.6 1.2 1.25 1.6 24.9 1254
    16x1.5 2 0.6 1.2 1.25 1.6 25.9 1355
    20x1.5 2 0.6 1.3 1.25 1.7 28.0 1575
    24x1.5 2 0.6 1.4 1.6 1.7 32.1 2052
    27x1.5 2 0.6 1.4 1.6 1.7 32.7 2164
    30x1.5 2 0.6 1.4 1.6 1.8 33.9 2316
    37x1.5 2 0.6 1.5 1.6 1.8 36.3 2651
    40x1.5 2 0.6 1.5 1.6 1.8 37.3 2793
    2.5mm²
    2x2.5 2 0.7 1.0 0.9 1.4 15.5 474
    3x2.5 2 0.7 1.0 0.9 1.4 16.2 537
    4x2.5 2 0.7 1.0 0.9 1.4 17.3 616
    5x2.5 2 0.7 1.1 0.9 1.5 19.0 723
    8x2.5 2 0.7 1.2 1.25 1.5 22.5 1090
    10x2.5 2 0.7 1.3 1.25 1.6 26.0 1336
    12x2.5 2 0.7 1.3 1.25 1.6 26.7 1446
    14x2.5 2 0.7 1.3 1.25 1.7 28.0 1593
    16x2.5 2 0.7 1.4 1.25 1.7 29.4 1751
    20x2.5 2 0.7 1.4 1.6 1.8 32.3 2223
    24x2.5 2 0.7 1.5 1.6 1.8 36.2 2608
    27x2.5 2 0.7 1.6 1.6 1.9 37.3 2814
    30x2.5 2 0.7 1.6 1.6 1.9 38.4 2998
    37x2.5 2 0.7 1.7 1.6 1.9 41.2 3451
    40x2.5 2 0.7 1.7 1.6 2.0 42.7 3670

    Note: Other conductor sizes & core configurations are available upon request.
