Tight Buffer PVC/LSZH Jacketed Simplex/Duplex Cord

Application

This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

Description

Simplex

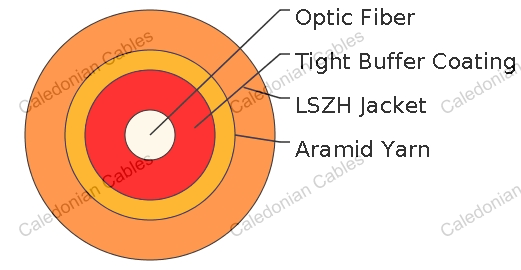

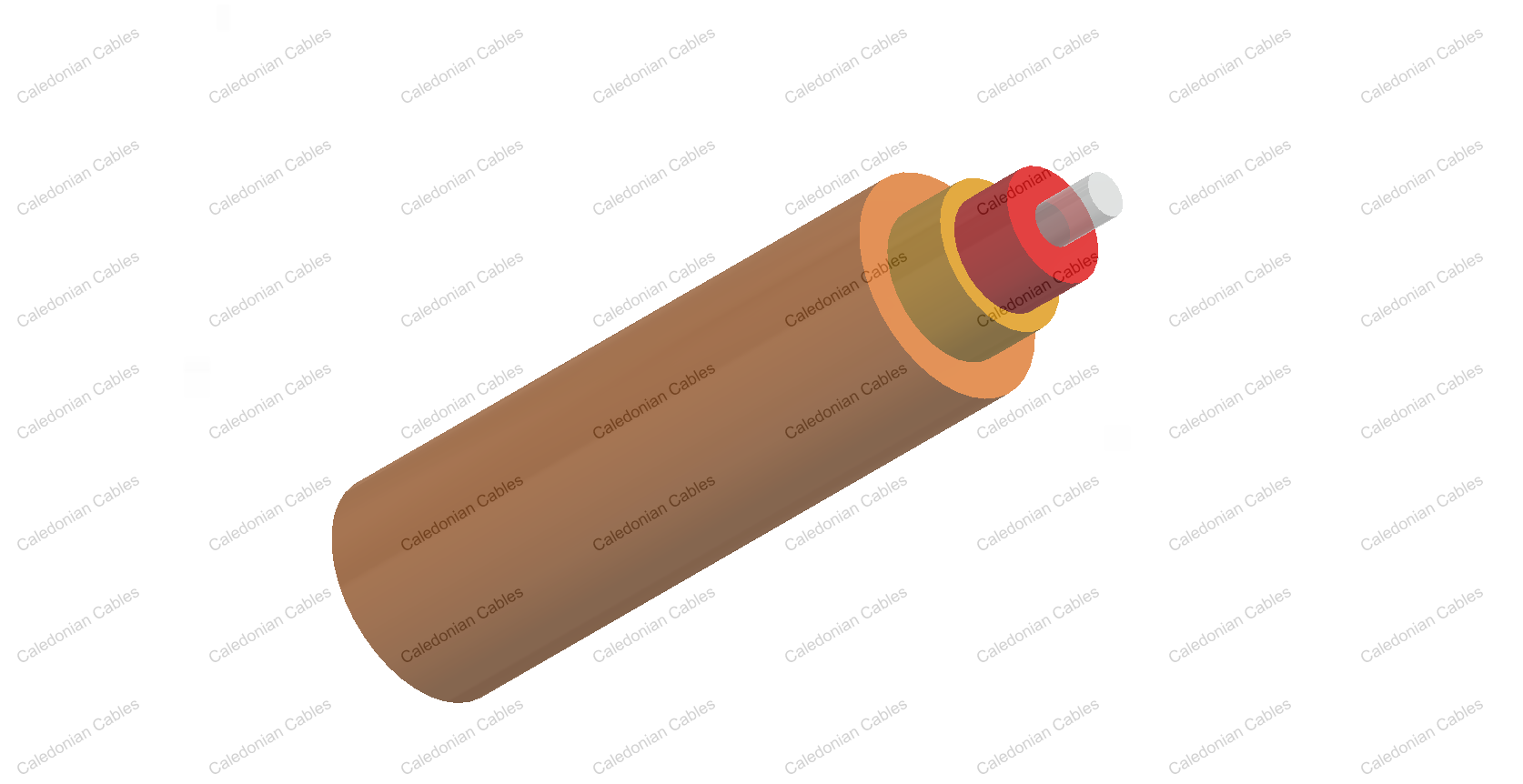

Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

Duplex Flat

Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

Duplex Round

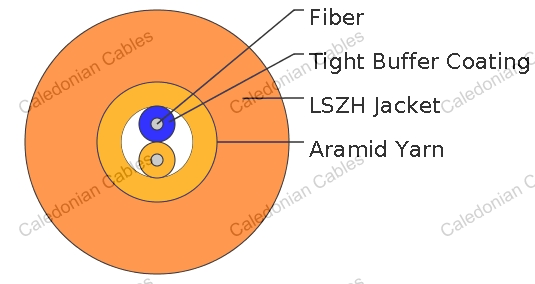

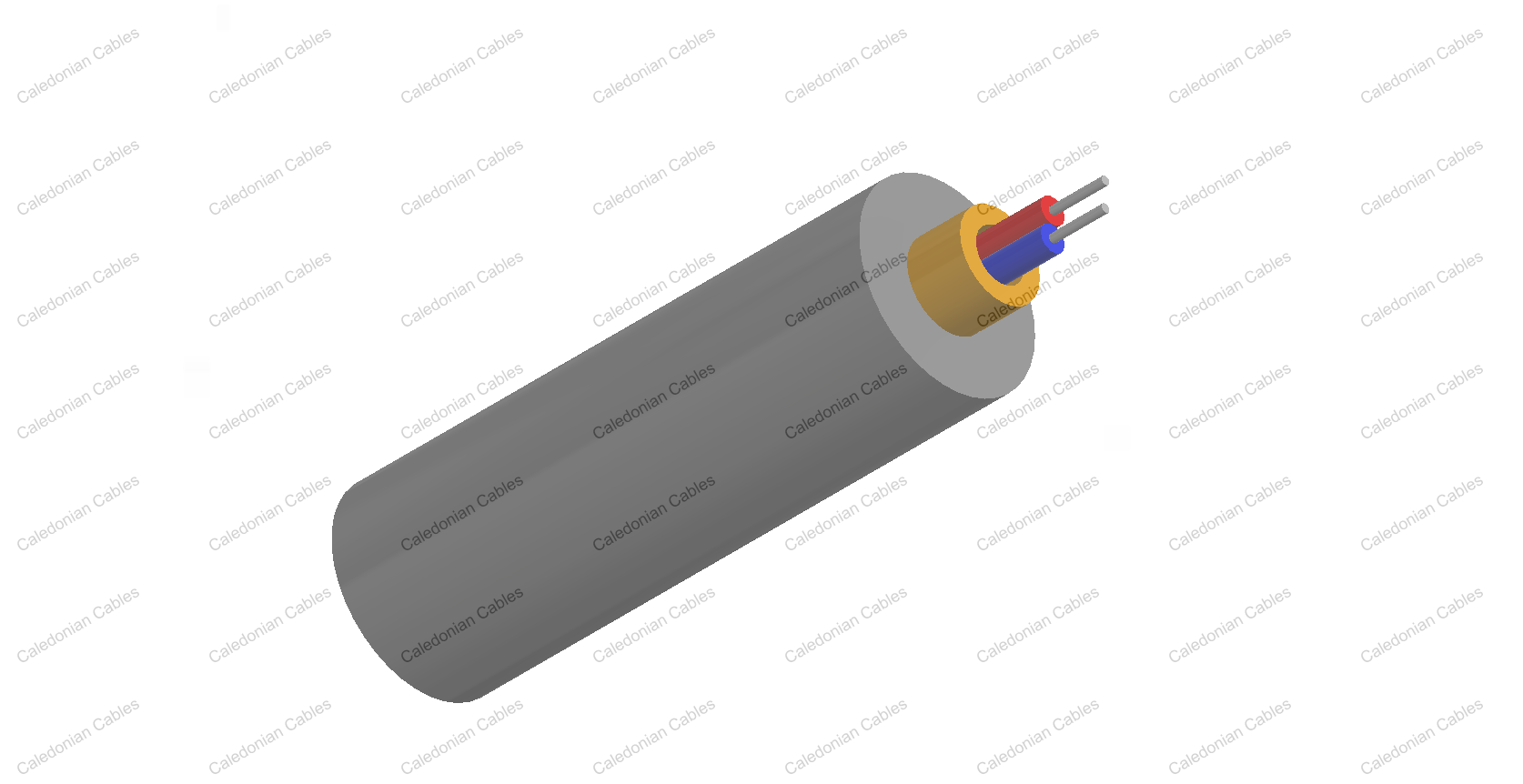

Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

Duplex Zip

Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.

Construction

Physical Properties

Fiber Count	Cable Type	Nominal Weight(kg/km)	Nominal Weight(lb/kft)	Nominal Outer Diameter(mm)	Nominal Outer Diameter(in)	Maximum Pulling Load
Fiber Count	Cable Type	Nominal Weight(kg/km)	Nominal Weight(lb/kft)	Nominal Outer Diameter(mm)	Nominal Outer Diameter(in)	Installation(N/Ib)	In Service(N/Ib)
1	Simplex 2.0mm	7.6	5.10	2.0	0.079	490/110	290/65
1	Simplex 2.5mm	7.8	5.23	2.5	0.098	490/110	290/65
1	Simplex 2.8mm	8.0	5.37	2.8	0.110	490/110	290/65
1	Simplex 3.0mm	8.2	5.50	3.0	0.118	490/110	290/65
2	Duplex Flat	28.0	18.79	4.0X6.8	0.157X0.267	980/220	580/130
2	Duplex Round	18.4	12.35	4.2	0.165	980/220	580/130
2	Duplex Zip	15.0	10.07	2.4X4.8	0.094X0.188	980/220	580/130

Mechanical Properties

Minimum Bending Radius:

Under installation:20hOD

During operation:10hOD

Temperature Range:

Operating Temperature Range:-40℃(-40℉) to +70℃(+158℉)

Storage Temperature Range:-50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load:2000N

Repeated Impact: 2.9 N.m (J)3h2 impacts

Twist (Torsion):180h10 times, 125hOD

Cyclic Flexing:25 cycles for armoured cables.;

100 cycles for unarmoured cables.

Crush Resistance:875N/cm (500lb/in)

Fiber Compliance

Temperature Cycling	IEC60794-1-2-F2	Repeated Bending	IEC60794-1-2-E6
Tensile Strength	IEC60794-1-2-E17	ATorsion	IEC60794-1-2-E
Crush	IEC60794-1-2-E3	Kink	IEC60794-1-2-E10
Impact	IEC60794-1-2-E4	Cable Bend	IEC60794-1-2-E11
		Cool Bend	IEC60794-1-2-E11

Safety Compliance

General Purpose Grade

Flammability Test: OFN (UL1581)

Riser Grade

Plenum Grade

FRPVC Grade

LSZH Grade

LSFROH Grade

FR Grade

Flammability Test: OFNR/FT4 (UL1666)

Flammability Test: OFNP/FT6 (UL 910)

Flammability Test: IEC60332-1

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Flammability Test: IEC60332-1 & IEC 60332-3C/A

Fire Resistance Test: IEC 60331 / BS 6387 CWZ

Standard Compliance

GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596

Features

Suitable for indoor use, such as routing connections in patching systems
Short "patch cord" cables ideal for links between electronic equipment and fiber panels
Compatible with wide variety of fiber optic connectors
High quality tight-buffer coating on fiber for environmental and mechanical protection
Customized jacket colors available for matching connectors.
Private labeling on the cable outer jacket is also available.
