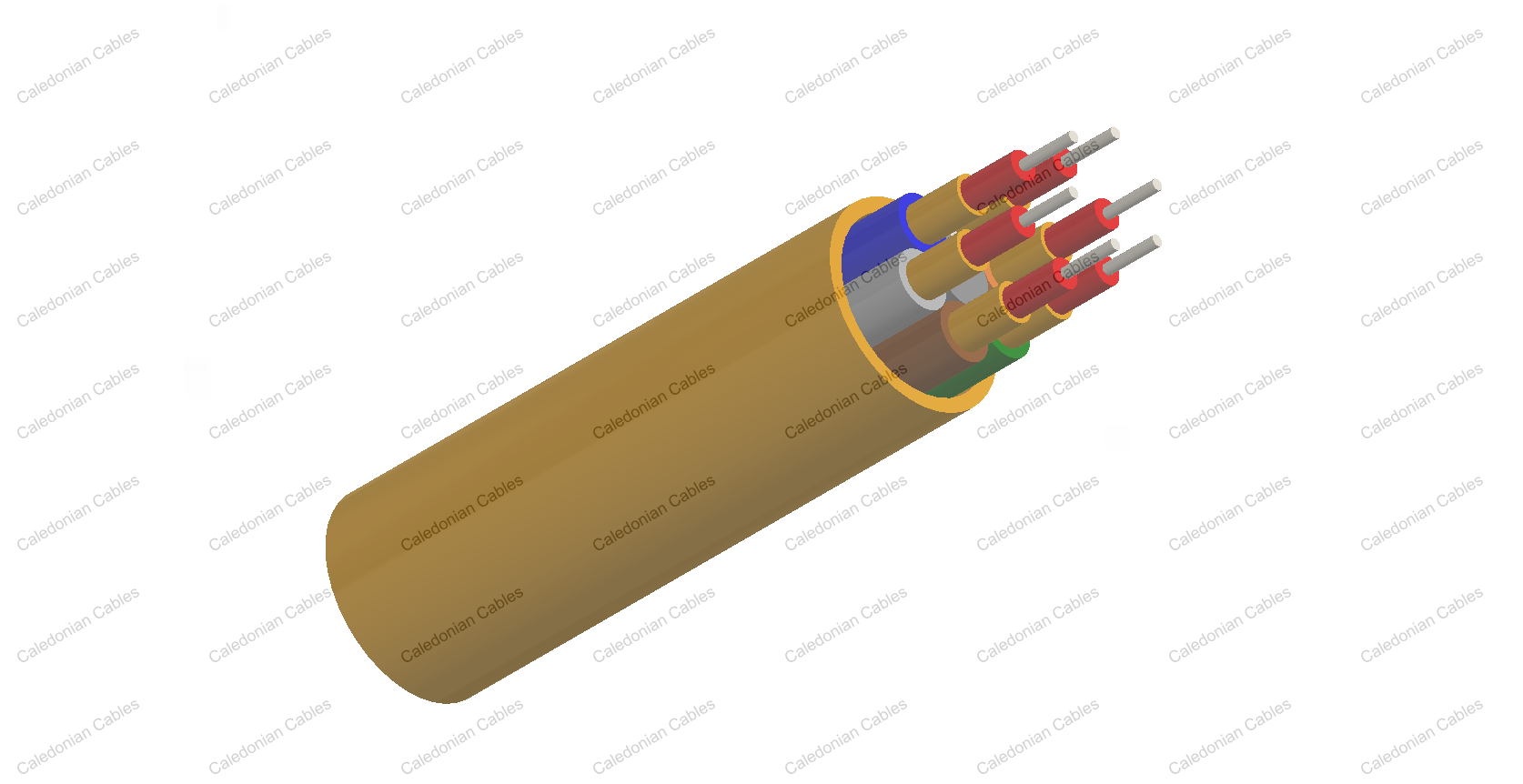

Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.
| Fiber Count | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load | |
| Installation(N/Ib) | In Service(N/Ib) | |||||
| 2 | 50．0 | 33．56 | 5．5 | 0．217 | 1200/270 | 490/100 |
| 6 | 110．0 | 73．83 | 12．5 | 0．493 | 2000/450 | 800/180 |
| 12 | 160．0 | 107．38 | 13．0 | 0．512 | 3515/790 | 1200/270 |
| 24 | 230．0 | 154．36 | 15．5 | 0．611 | 5470/1230 | 2000/450 |
Physical Properties
| Minimum Bending Radius: | Maximum Compressive Load: | 3000N for unarmoured | |
| Under installation: | 20×OD | 5000N for armoured | |
| During operation | 10×OD for unarmoured cables | Repeated Impact: | 2.9 N.m (J) 3×2 impacts |
| 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD | |
| Temperature Range: | Cyclic Flexing: | 25 cycles for armoured cables. | |
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | 100 cycles for unarmoured cables. | |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: | 1750N/cm (1000lb/in) |
| Temperature Cycling Tensile Strength Crush Impact Repeated Bending Torsion Kink Cable Bend Cool Bend |
IEC60794-1-2-F2 IEC60794-1-2-E1A IEC60794-1-2-E3 IEC60794-1-2-E4 IEC60794-1-2-E6 IEC60794-1-2-E7 IEC60794-1-2-E10 IEC60794-1-2-E11 IEC60794-1-2-E11 |
| General Purpose Grade | Flammability Test: OFN (UL1581) |
| Riser Grade | Flammability Test: OFNR/FT4 (UL1666) |
| Plenum Grade | Flammability Test: OFNP/FT6 (UL 910) |
| FRPVC Grade | Flammability Test: IEC60332-1 |
| LSZH Grade | Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 |
| LSFROH Grade | Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Flammability Test: IEC60332-1 & IEC 60332-3C/A |
| FR Grade | Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
