Augmented Category 6 Cables

Applications :

  • 10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

Standards :

  • ISO / IEC 11801, EN50173, TIA / EIA 568-B

Product Construction Matrix :

  •   U/UTP F/UTP U/FTP SF/UTP S/FTP
    Conductor 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper
    Insulation PE PE PE PE PE
    Screen Nil OverallAluminum Tape Screen IndividualAluminum Tape Screen OverallAluminum Tape Screen & Copper Wire Braid IndividualAluminum Tape Screen & Copper Wire Braid
    Drain Wire Nil 1/0.5 mm 1/0.5 mm Nil Nil
    Jacket PE/PVC/LSF/ LSZH/LFLSFROH PE/PVC/LSF/ LSZH PE/PVC/LSF/LSZH/LSFROH
  • Remark : PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP.

Working Frequency :

  • 1 - 500 MHz
  •
  •

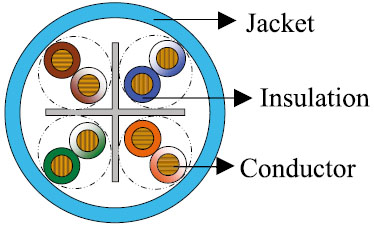

    Cat6A U/UTP

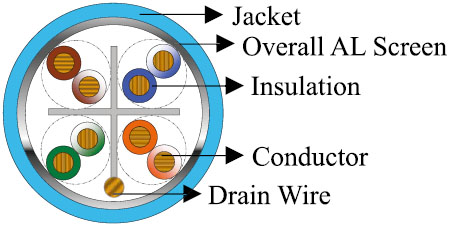

    Cat6A F/UTP

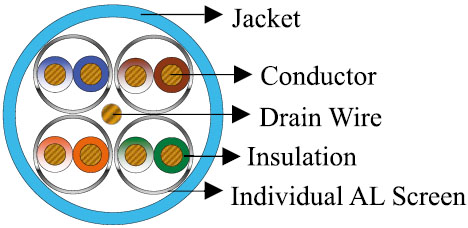

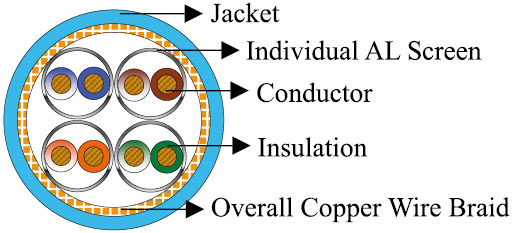

    Cat6A U/FTP

Technical Parameters :

  • Characteristic Impedance: 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
    Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%
    Maximum Mutual Capacitance: 5.6nF/100m
    Maximum Capacitance Unbalance: 330pF/100m
    Maximum DC Resistance: 7.5Ω/100m
    Maximum Resistance Unbalance: 3%
    Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)
    Maximum Propagation Delay: 536 ns/100m @ 100MHz
    Minimum Bending Radius: 10 x Overall Diameter
    Maximum Pulling Load: 80N
    Working Temperature: -20℃ ~ +60℃
    Storage Temperature: -5℃ ~ +50℃
    Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

Product Certification :

  • E222756

Product Categories :

  • Construction Conductor Diameter (mm) Diameter Over Insulation (mm) Pairs Screen Overall Diameter (mm) Jacket
    U/UTP 0.57/0.58 1.02 4 Nil 8.5 PVC/LSZH
    U/UTP 0.57/0.58 1.02 4 Nil 8.9 LSFROH
    U/UTP 0.57/0.58 1.02 4 Nil 8.7 PE
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3 PVC/LSZH
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.5 PE
    U/FTP 0.57/0.58 1.02 4 Individual Aluminum Tape Screen 7.5 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 7.2 LSFROH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.0 PVC/LSZH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.4 LSFROH

Product Highlights :

  • Provide excellent NEXT and attenuation performance beyond 500 MHz.
  • Support 10 Gigabit Ethernet application.
  • Meet the strict flame retardancy and environmental requirements in Europe and US.
  • Different jacket materials available for choice.
  • Special purpose cables can be offered according to customer request.
  • Different jacket color options available for choice.

UTP Cat 6A Transmission Properties :

  • FREQ (MHz) NEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 IL (dB/100m) RL (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSNEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value
    1 74.3/95.0/74.3 2.0 20.0/28.0/20.0 72.2/94.0/72.2 67.8/92.0/67.8 72.3/92.0/72.3 70.2/90.0/70.2 64.8/85.0/64.8
    4 65.3/88.0/65.3 3.7 23.0/30.0/23.0 61.4/88.0/61.4 55.8/80.0/55.8 63.3/83.0/63.3 59.5/80.0/59.5 52.8/73.0/52.8
    8 60.8/85.0/60.8 5.3 24.5/33.0/24.5 55.4/83.0/55.4 49.7/75.0/49.7 58.8/80.0/58.8 53.5/76.0/53.5 46.7/70.0/46.7
    10 59.3/83.0/59.3 5.9 25.0/36.0/25.0 53.3/78.0/53.3 47.8/72.0/47.8 57.3/77.0/57.3 51.3/72.0/51.3 44.8/65.0/44.8
    16 56.2/80.0/56.2 7.6 25.0/36.0/25.0 48.6/74.0/48.6 43.7/68.0/43.7 54.2/74.0/54.2 46.6/68.0/46.6 40.7/61.0/40.7
    20 54.8/78.0/54.8 8.3 25.0/36.0/25.0 46.3/71.0/46.3 41.8/65.0/41.8 52.8/73.0/52.8 44.3/66.0/44.3 38.8/59.0/38.8
    25 53.3/77.0/53.3 9.5 24.3/35.0/24.3 43.8/69.0/43.8 39.8/63.0/39.8 51.3/71.0/51.3 41.8/63.0/41.8 36.8/57.0/36.8
    31.25 51.9/76.0/51.9 10.4 23.6/34.0/23.6 41.1/67.0/41.1 37.9/62.0/37.9 49.9/70.0/49.9 39.1/60.0/39.1 34.9/55.0/34.9
    62.5 47.4/70.0/47.4 14.9 21.5/33.5/21.5 31.9/57.0/31.9 31.9/56.0/31.9 45.4/65.0/45.4 29.9/51.0/29.9 28.9/49.0/28.9
    100 44.3/68.0/44.3 19.0 20.1/33.0/20.1 24.4/50.0/24.4 27.8/52.0/27.8 42.3/62.0/42.3 22.4/44.0/22.4 24.8/45.0/24.8
    200 39.8/65.0/39.8 27.4 18.0/31.0/18.0 10.6/38.0/10.6 21.8/46.0/21.8 37.8/58.0/37.8 8.6/32.0/8.6 18.8/39.0/18.8
    250 38.3/62.0/38.3 31.0 17.3/30.5/17.3 5.3/33.0/5.3 19.8/44.0/19.8 36.3/56.0/36.3 3.3/27.0/3.3 16.8/37.0/16.8
    300 37.1/61.0/37.1 34.2 16.8/29.0/16.8 0.5/29.0/0.5 18.3/42.0/18.3 35.1/55.0/35.1 -1.5/24.0/-1.5 15.3/35.0/15.3
    350 36.1/60.0/36.1 37.1. 16.3/28.0/16.3 -3.8/26.0/-3.8 16.9/41.0/16.9 34.1/54.0/34.1 -5.8/20.0/-5.8 13.9/34.0/13.9
    400 35.3/59.0/35.3 40.0 15.9/27.0/15.9 -7.9/21.0/-7.9 15.8/40.0/15.8 33.3/53.0/33.3 -9.9/15.0/-9.9 12.8/33.0/12.8
    450 34.5/58.0/34.5 46.3 15.5/26.5/15.5 -10.5/18.0/-10.5 14.7/40.5/14.7 32.5/52.0/32.5 -12.5/11.0/-12.5 11.7/32.5/11.7
    500 33.8/57.0/33.8 45.3 15.2/26.0/15.2 -15.3/15.0/-15.3 13.8/39.0/13.8 31.8/51.0/31.8 -17.3/9.0/-17.3 10.8/32.0/10.8
    625 32.4/53.0/32.4 51.1 14.5/25.0/14.5 -23.1/31.0/-23.1 11.8/36.0/11.8 30.4/50.0/30.4 -25.1/5.0/-25.1 8.8/29.0/8.8
  • * Data for 250MHz above are for reference only

F/UTP & SF/UTP Cat 6A Transmission Properties :

  • FREQ (MHz) NEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 IL (dB/100m) RL (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSNEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value
    1 74.3/86.0/74.3 2.0 20.0/33.0/20.0 72.2/84.0/72.2 67.8/91.0/67.8 72.3/81.0/72.3 70.2/80.5/70.2 64.8/84.0/64.8
    4 65.3/77.0/65.3 3.7 23.0/35.5/23.0 61.4/73.0/61.4 55.8/79.0/55.8 63.3/72.0/63.3 59.5/70.0/59.5 52.8/72.0/52.8
    8 60.8/75.0/60.8 5.3 24.5/36.0/24.5 55.4/70.0/55.4 49.7/74.0/49.7 58.8/69.0/58.8 53.5/66.0/53.5 46.7/69.0/46.7
    10 59.3/71.0/59.3 5.9 25.0/38.0/25.0 53.3/66.0/53.3 47.8/71.0/47.8 57.3/65.0/57.3 51.3/62.0/51.3 44.8/64.0/44.8
    16 56.2/68.0/56.2 7.6 25.0/35.2/25.0 48.6/61.0/48.6 43.7/67.0/43.7 54.2/62.0/54.2 46.6/58.0/46.6 40.7/60.0/40.7
    20 54.8/67.0/54.8 8.3 25.0/35.0/25.0 46.3/59.0/46.3 41.8/65.0/41.8 52.8/61.0/52.8 44.3/55.0/44.3 38.8/59.0/38.8
    25 53.3/65.0/53.3 9.5 24.3/34.0/24.3 43.8/57.0/43.8 39.8/63.0/39.8 51.3/60.0/51.3 41.8/53.0/41.8 36.8/57.0/36.8
    31.25 51.9/64.0/51.9 10.4 23.6/33.1/23.6 41.1/54.0/41.1 37.9/61.0/37.9 49.9/54.0/49.9 39.1/50.0/39.1 34.9/54.0/34.9
    62.5 47.4/59.0/47.4 14.9 21.5/32.2/21.5 31.9/44.0/31.9 31.9/55.0/31.9 45.4/58.0/45.4 29.9/41.0/29.9 28.9/48.0/28.9
    100 44.3/56.0/44.3 19.0 20.1/31.6/20.1 24.4/38.0/24.4 27.8/51.0/27.8 42.3/50.0/42.3 22.4/34.0/22.4 24.8/44.0/24.8
    200 39.8/52.0/39.8 27.4 18.0/29.8/18.0 10.6/25.0/10.6 21.8/45.0/21.8 37.8/45.0/37.8 8.6/20.5/8.6 18.8/38.0/18.8
    250 38.3/50.0/38.3 31.0 17.3/28.7/17.3 5.3/19.0/5.3 19.8/43.0/19.8 36.3/44.0/36.3 3.3/15.0/3.3 16.8/36.0/16.8
    300 37.1/49.0/37.1 34.2 16.8/28.0/16.8 0.5/14.0/0.5 18.3/38.0/18.3 35.1/43.0/35.1 -1.5/10.0/-1.5 15.3/31.0/15.3
    350 36.1/48.0/36.1 37.1 16.3/27.5/16.3 -3.8/9.0/-3.8 16.9/37.0/16.9 34.1/41.0/34.1 -5.8/7.0/-5.8 13.9/30.0/13.9
    400 35.3/47.0/35.3 40.0 15.9/27.0/15.9 -7.9/7.0/-7.9 15.8/36.0/15.8 33.3/40.0/33.3 -9.9/3.0/-9.9 12.8/29.0/12.8
    450 34.5/47.0/34.5 46.3 15.5/26.5/15.5 -10.5/6.0/-10.5 14.7/35.0/14.7 32.5/39.0/32.5 -12.5/2.0/-12.5 11.7/27.5/11.7
    500 33.8/47.0/33.8 45.3 15.2/26.0/15.2 -15.3/5.0/-15.3 13.8/34.0/13.8 31.8/38.0/31.8 -17.3/0.0/-17.3 10.8/27.0/10.8
    625 32.4/45.0/32.4 51.1 14.5/25.0/14.5 -23.1/1.0/-23.1 11.8/33.0/11.8 30.4/37.0/30.4 -25.1/-3.9/-25.1 8.8/26.0/8.8

U/FTP & S/FTP Cat 6A Transmission Properties :

  • FREQ (MHz) NEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 IL (dB/100m) RL (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSNEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value
    1 87.0/90.0/74.3 2.0 20.0/28.0/20.0 85.0/88.0/72.2 73.8/75.0/67.8 85.0/88.0/72.3 83.0/86.0/70.2 70.8/72.0/64.8
    4 80.0/90.0/65.3 3.7 23.0/30.0/23.0 76.0/86.0/61.4 61.8/75.0/55.8 78.0/88.0/63.3 74.0/84.0/59.5 58.0/72.0/52.8
    8 80.0/90.0/60.8 5.3 24.5/33.0/24.5 74.7/84.0/55.4 55.7/75.0/49.7 78.0/88.0/58.8 72.7/82.0/53.5 52.7/72.0/46.7
    10 80.0/90.0/59.3 5.9 25.0/36.0/25.0 74.0/84.0/53.3 53.8/74.0/47.8 78.0/88.0/57.3 72.0/82.0/51.3 50.8/71.0/44.8
    16 80.0/90.0/56.2 7.6 25.0/36.0/25.0 72.4/82.0/48.6 49.7/70.0/43.7 78.0/88.0/54.2 70.4/80.0/46.6 46.7/67.0/40.7
    20 80.0/90.0/54.8 8.3 25.0/36.0/25.0 71.5/81.0/46.3 47.8/68.0/41.8 78.0/88.0/52.8 69.5/79.0/44.3 44.8/65.0/38.8
    25 80.0/90.0/53.3 9.5 24.3/35.0/24.3 70.5/80.0/43.8 45.8/68.0/39.8 78.0/88.0/51.3 68.5/78.0/41.8 42.8/65.0/36.8
    31.25 80.0/90.0/51.9 10.4 23.6/34.0/23.6 69.3/79.0/41.1 43.9/64.0/37.9 78.0/88.0/49.9 67.3/77.0/39.1 40.9/61.0/34.9
    62.5 75.3/90.0/47.4 14.9 21.5/33.5/21.5 59.9/74.0/31.9 37.9/58.0/31.9 69.1/83.0/45.4 57.9/72.0/29.9 34.9/55.0/28.9
    100 71.1/85.0/44.3 19.0 20.1/33.0/20.1 51.3/65.0/24.4 33.8/54.0/27.8 69.1/83.0/42.3 49.3/63.0/22.4 30.8/51.0/24.8
    200 71.1/85.0/39.8 27.4 18.0/31.0/18.0 42.1/56.0/10.6 27.8/51.0/21.8 69.1/83.0/37.8 40.1/54.0/8.6 24.8/48.0/18.8
    250 71.1/85.0/38.3 31.0 17.3/30.5/17.3 38.2/52.0/5.3 25.8/48.0/19.8 61.7/78.0/36.3 36.2/50.0/3.3 22.8/45.0/16.8
    300 63.7/80.0/37.1 34.2 16.8/29.0/16.8 27.3/43.0/0.5 24.3/45.0/18.3 61.7/78.0/35.1 25.3/41.0/-1.5 21.2/42.0/15.3
    350 63.7/80.0/36.1 37.1 16.3/28.0/16.3 23.9/40.0/-3.8 23.9/45.0/16.9 61.7/78.0/34.1 21.9/38.0/-5.8 19.9/42.0/13.9
    400 63.7/80.0/35.3 40.0 15.9/27.0/15.9 20.7/37.0/-7.9 21.8/45.0/15.8 61.7/78.0/33.3 18.7/35.0/-9.9 19.7/42.0/12.8
    450 63.7/80.0/34.5 46.3 15.5/26.5/15.5 17.4/33.0/-10.5 20.5/42.0/14.7 61.7/78.0/32.5 15.4/31.0/-12.5 17.5/39.0/11.7
    500 63.7/80.0/33.8 45.3 15.2/26.0/15.2 14.8/31.0/-15.3 19.8/42.0/13.8 61.7/78.0/31.8 12.8/29.0/-17.3 16.8/39.0/10.8
    625 60.0/70.0/32.4 51.1 14.5/25.0/14.5 5.5/15.5/-23.1 18.8/42.0/11.8 58.0/68.0/30.4 9.9/26.0/-25.1 16.0/39.0/8.8
  •
  •

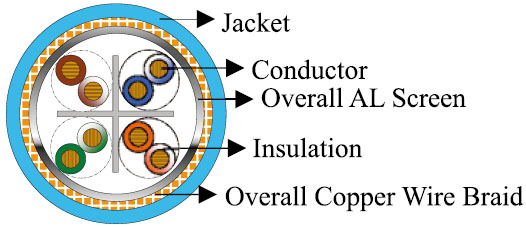

    Cat6A S/FTP
