Category 3 Multipair Cables

Applications :

  • 10Base-T, 100Base-T4

Standards :

  • ISO/IEC11801, ANSI/TIA/EIA-568-B

Product Construction Matrix :

  •     U/UTP F/UTP
    Conductor Material Solid Plain Copper Solid Plain Copper
    Stranding( No./mm ) 1/0.5 1/0.5
    Gauge 24AWG 24AWG
    Insulation Material PE PE
    Diameter 0.86 mm 0.86 mm
    Screen Material Nil Aluminum /Polyester Tape
    Drain Wire Material Nil 1/0.5 mm
    Assembly No of Pairs 25/50/100 25/50/100
    Jacket Material PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH
  • Remark : PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP

Working Frequency :

  • 1 - 16 MHz
  •
  •

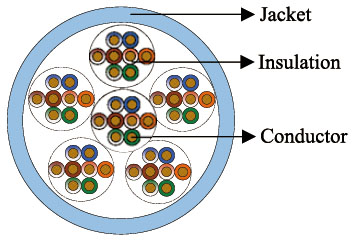

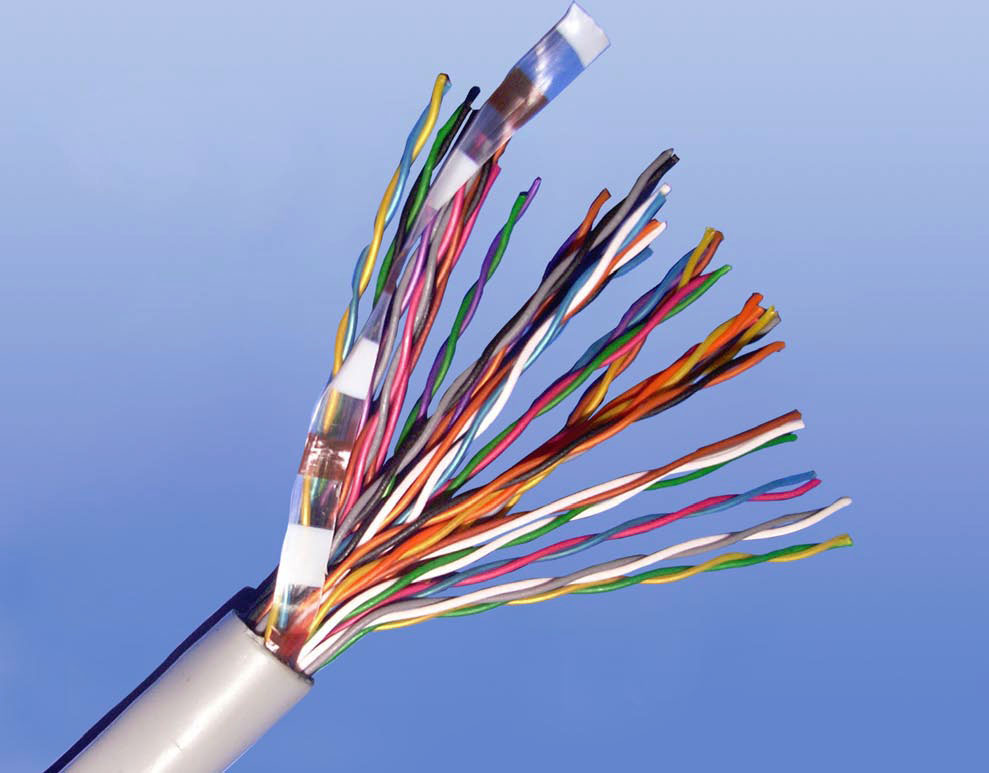

    Cat3 U/UTP

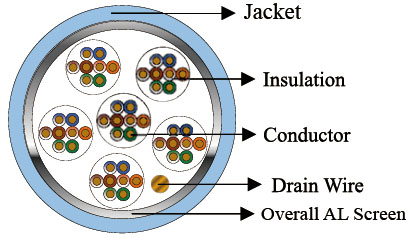

    Cat3 F/UTP
    Category 3 Multipair Cables

Technical Parameters :

  • Characteristic Impedance: 100±15Ω
    Nominal Velocity of Propagation (NVP): 69%
    Maximum DC Resistance: 9.38Ω/100m
    Maximum Resistance Unbalance: 5%
    Maximum Propagation Delay Skew: 30 ns/100m
    Maximum Propagation Delay: 536 ns/100m@100 MHz
    Minimum Bending Radius: 10 x Overall Diameter
    Voltage Rating: 60V rms
    Maximum Pulling Load: 80N
    Working Temperature: -20℃ ~ +60℃
    Storage Temperature: -5℃ ~ +50℃
    Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 and IEC 60332-3C (LSFROH Jacket)

Product Certification :

  • E222756

Product Categories :

  • FREQ (MHz) NEXT(dB/100m) Minmum Value/Typical Value/Standard Value IL (dB/100m) SRL(dB/100m)Minmum Value/Typical Value/Standard Value
    1 43.0/48.0/41.0 2.6 13.0/16.0/12.0
    4 34.0/38.0/32.0 5.6 13.0/16.0/12.0
    8 29.0/33.0/26.0 8.5 13.0/16.0/12.0
    10 28.0/33.0/26.0 9.8 13.0/16.0/12.0
    16 25.0/30.0/23.0 13.1 11.0/14.0/10.0

Product Highlights :

  • Provide excellent bandwidth beyond 600 MHz.
  • Support 10 Gigabit Ethernet application.
  • Meet the strict flame retardancy and environmental requirements in Europe and US.
  • Different jacket materials available for choice.
