    Category 7 Cables (CAT7)

    Applications

    155MbpsATM, 622MbpsATM, 1000Base-T, 10GBase-T

    Standards

    • IEC61156-5 CAT7
    • EN 50288-4-1

    Product Construction Matrix

      U/FTP S/FTP
    Conductor 22/23AWG Solid Plain Copper 22/23AWG Solid Plain Copper
    Insulation PE PE
    Screen IndividualAluminum Tape Screen Individual Aluminum Tape Screen & Overall Copper Wire Braid
    Drain Wire 7/0.2 mm Nil
    Jacket PE/PVC/LSF/LSZH/LSFROH PE/PVC/LSF/LSZH/LSFROH

    Remark :

    PE- Polyethylene

    PVC- Polyvinyl Chloride

    LSF- Low Smoke & Fume

    LSZH- Low Smoke Zero Halogen

    LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

    PVC can be classified as CMX, CM, CMR and CMP.

    Working Frequency

    1 - 600 MHz

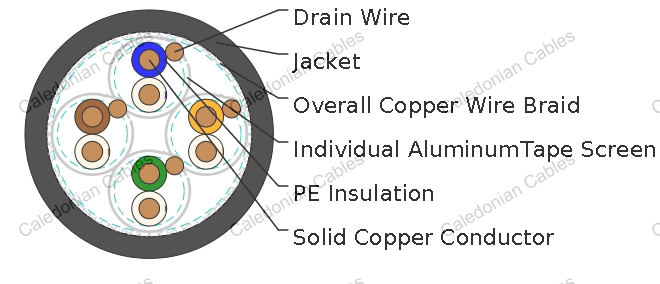

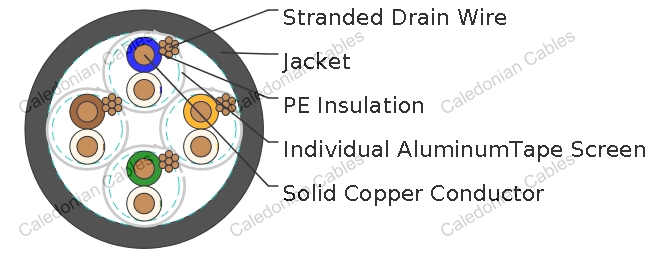

    Cat7 U/FTP Cat7 S/FTP
    Cat7 U/FTP Cat7 S/FTP

    Technical Parameters

    Characteristic Impedance 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
    Nominal Velocity of Propagation (NVP) 79%
    Maximum Mutual Capacitance 5.6nF/100m
    Maximum DC Resistance 5.9Ω/100m (22AWG); 7.5Ω/100m (23AWG)
    Maximum Resistance Unbalance 5%
    Maximum Propagation Delay Skew 30ns/100m (1-125MHz)
    Maximum Propagation Delay 536 ns/100m@100MHz
    Minimum Bending Radius 10 x Overall Diameter
    Voltage Rating 60V rms
    Maximum Pulling Load 80N
    Working Temperature -20℃ ~ +60℃
    Storage Temperature -5℃ ~ +50℃
    Flame Retardancy UL 1581 (CM Jacket)
    UL 1666 (CMR Jacket )
    UL 910 (CMP Jacket)
    IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1and IEC 60332-3C (LSFROH Jacket)

    Product Categories

    Construction Conductor Diameter Diameter Over Insulation Pairs Screen Overall Diameter Jacket
      mm mm     mm
    S/FTP 0.57/0.64 1.02 4 Individual Aluminum Tape Screen & Overall Copper Wire Braid 8.4/9.1 PVC/LSZH
    S/FTP 0.57/0.64 1.02 4 Individual Aluminum Tape Screen & Overall Copper Wire Braid 8.4/9.1 LSFROH
    U/FTP 0.57/0.64 1.02 4 Individual Aluminum Tape Screen 7.5/8.5 PVC/LSZH
    U/FTP 0.57/0.64 1.02 4 Individual Aluminum Tape Screen 7.5/8.5 LSFROH

    Product Highlights

    • Provide excellent bandwidth beyond 600 MHz.
    • Support 10 Gigabit Ethernet application.
    • Meet the strict flame retardancy and environmental requirements in Europe and US.
    • Different jacket materials available for choice.

    Transmission Properties

    FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value PP ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
    1 90.0/100.0/80.0 2.0 20.0/23.0/20.0 88.0/98.0/78.0 85.0/90.0/80.0 87.0/97.0/77.0 85.0/95.0/75.0 82.0/87.0/77.0
    4 90.0/100.0/80.0 3.6 23.0/26.0/23.0 86.4/96.0/76.4 85.0/90.0/80.0 87.0/97.0/77.0 83.4/93.0/73.4 82.0/87.0/77.0
    10 90.0/100.0/80.0 5.7 25.0/28.0/25.0 84.3/94.0/74.3 79.0/90.0/74.0 87.0/97.0/77.0 81.3/91.0/71.3 76.0/87.0/71.0
    16 90.0/100.0/80.0 7.2 25.0/28.0/25.0 83.3/92.0/72.8 74.9/90.0/69.9 87.0/97.0/77.0 80.3/89.0/69.8 71.9/87.0/66.9
    20 90.0/100.0/80.0 8.1 25.0/28.0/25.0 82.5/91.0/71.9 73.0/90.0/68.0 87.0/97.0/77.0 79.5/88.0/68.9 70.0/87.0/65.0
    31.25 90.0/100.0/80.0 10.1 23.6/26.0/23.6 80.0/90.0/69.9 69.1/90.0/64.1 87.0/97.0/77.0 77.0/87.0/66.9 66.1/87.0/61.1
    62.5 90.0/100.0/75.5 14.5 21.5/24.0/21.5 76.0/85.0/61.0 63.1/85.0/58.1 80.0/97.0/72.5 73.0/82.0/58.0 60.1/82.0/55.1
    100 90.0/100.0/72.4 18.5 20.1/23.0/20.1 72.5/75.0/53.9 59.0/80.0/54.0 87.0/97.0/69.4 69.5/72.0/50.9 56.0/77.0/51.0
    200 90.0/100.0/67.9 26.8 18.0/23.0/18.0 65.0/70.0/41.1 53.0/75.0/78.0 87.0/97.0/64.9 62.0/67.0/38.1 50.0/72.0/45.0
    250 95.0/90.0/66.5 30.2 17.3/23.0/17.3 50.0/58.0/36.3 51.0/70.0/46.0 92.0/87.0/63.5 47.0/55.0/33.3 48.0/67.0/43.0
    300 95.0/90.0/65.3 33.3 17.3/23.0/17.3 59.0/55.0/32.0 49.5/66.0/44.5 92.0/87.0/63.3 56.0/52.0/29.0 46.5/63.0/41.5
    600 80.0/90.0/60.8 48.9 17.3/20.0/17.3 32.0/50.0/11.9 43.4/60.0/38.4 77.0/87.0/57.8 29.0/47.0/8.9 40.4/57.0/35.4
    Cat7 U/FTP Cat7 S/FTP
    Cat7 U/FTP Cat7 S/FTP
