2X(2C1.5mm2) Audio Cable + Cat6 F/UTP LSZH Sheathed Unarmoured Composite Cable

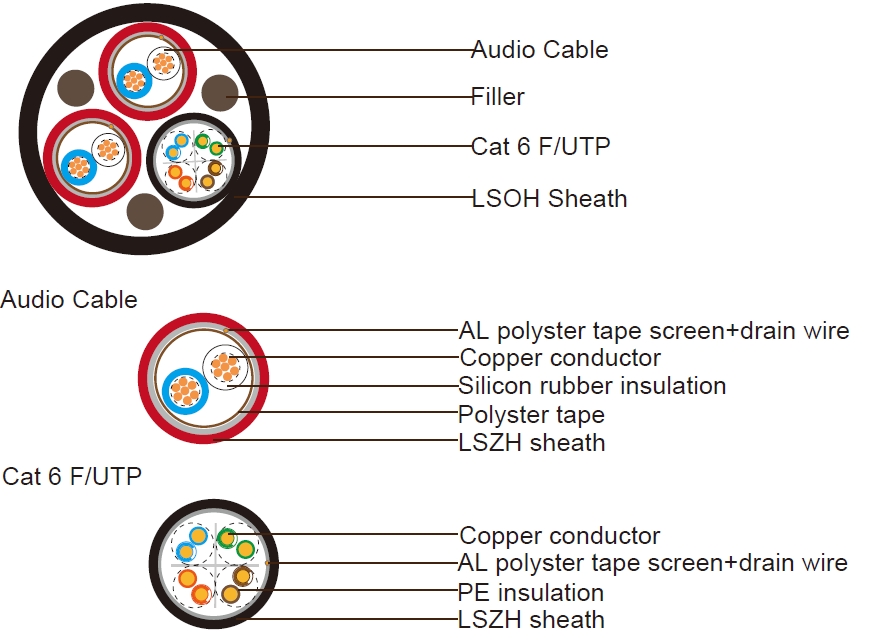

Construction:

Composite Cable

2Cx1.5mm² Audio Cable

Conductor 1.5mm2 Stranded copper wire, class 5 to IEC60228.
Insulation Fire resistant silicone rubber compound. Nominal thickness 0.8mm.
Insulation Color White and blue
Shield Aluminium tape with tinned copper drain wire
Sheath LSZH sheath. Nominal thickness 1.0mm.
Sheath Color Red
General Standard Basic design to EN50288-7

Cat 6 F/UTP

Conductor 24 AWG stranded plain copper.
Insulation PE material. Nominal diameter is 0.97mm
Insulation Color White-orange,Orange;White-blue,Blue;White-green,Green;White-brown,Brown
Shield Alumminum tape with tinned copper drain wire.
Sheath LSZH sheath. Nominal overall diameter is 6.5mm
Sheath Color Black or Grey or Blue. Other colors also available upon request.
Applications IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
General Standard ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B.

Element Assembly

Filler PP material if necessary
Wrapping Tape Polyester tape or woven tape
Outer Sheath High flexible LSZH. Nominal thickness 1.8mm.
Sheath Color Black. Other colors also available upon request

Electrical and Physical Properties@20°C:

Audio Cable

  • Max.Electrical Resistance: 12.3Ohm/km
  • Min. Insulation Resistance: 1000 MOhm/km
  • Operating Temperature: -20°C/+90°C
  • Voltage rating: 300/500V
  • Insulation spark test: 7000 V r.m.s./H.F.
  • Max. Attenuation: 0.88 dB/km @800HZ
  • Max. Inductance: 0.75mH/km

Cat6 F/UTP

  • Max.Electrical Resistance: 93.8 Ohm/km
  • Min.Insulation Resistance: 2000 MOhm/km
  • Operating Temperature: -20°C/+70°C
  • Max.Resistance Unbalance: 5%
  • Max. Mutual Capacitance: 5.6nF/100m
  • Max. Capacitance Unbalance: 330pF/100m
  • Characteristic Impedance : 100 ± 15 (1-250MHz)
  • Nominal Velocity of Propagation: 69%
  • Max. Propagation Delay : 536ns/100m@100MHz
  • Max.Propagation Delay skew : 45ns/100m(1-125MHz)
  • Test voltage (DC, 1 min) Core/Core : 1000V

Fire Performance:

Audio Cable

  • Flame Retardance : IEC60332-1-2
  • Fire Propagation : IEC60332-3-22
  • Low Smoke Capacity: IEC61034-1/2
  • Halogen Free: IEC60754-1/2
  • Temperature Index : ISO 4589-3
  • Oxygen Index : ISO 4589-2

Cat6 F/UTP

  • Flame Retardance : IEC60332-1-2
  • Fire Propagation : IEC60332-3-22
  • Low Smoke Capacity: IEC61034-1/2
  • Halogen Free: IEC60754-1/2
  • Temperature Index : ISO 4589-3
  • Oxygen Index : ISO 4589-2

Element Assembly

  • Flame Retardance : IEC60332-1-2
  • Fire Propagation : IEC60332-3-22
  • Low Smoke Capacity: IEC61034-1/2
  • Halogen Free: IEC60754-1/2
  • Temperature Index : ISO 4589-3
  • Oxygen Index : ISO 4589-2
