Power Cable + RS 485 + Belden 9104 +Fiber Optic Cable Steel Wire Braid Armored Composite Cable

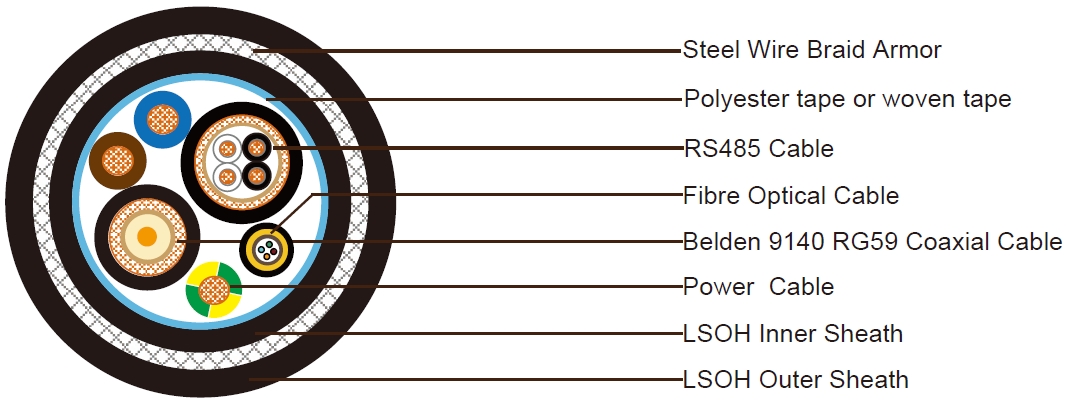

Construction:
3x12AWG Power Cable
| Conductor | 12AWG(19/0.455mm) stranded copper wire |
| Insulation | XLPE compound. Nominal outer diameter 3.75mm |
| Insulation Color | Blue, Brown and Green/Yellow |
2 Pair 24AWG RS485
| Conductor | 24AWG (7/0.2mm) stranded copper to IEC228 Class 2 |
| Insulation | PE material. Thickness 0.8mm |
| Shield | Aluminium polyester tape with 24 AWG drain wire |
| Braid | Copper wire braiding |
| Sheath | LSZH sheath. Nominal outer diameter is 9.0mm |
| Sheath Color | Black |
Belden 9104 RG59 Coaxial Cable
| Conductor | 20AWG bare copper covered steel wire |
| Insulation | Foam high density polyethylene. Norminal outer diameter 3.66mm |
| Shield | Aluminium foil with 100% coverage |
| Braid | Aluminium wire braiding with 67% coverage |
| Sheath | PVC sheath. Norminal outer diameter 6.02mm |
| Sheath Color | Black |
4 Core Central Loose Tube Fiber Optic Cable
| Optical Fiber | Multi-mode cabled fibers meet or exceed the requirements of ITUT G.651 specification |
| Loose Tube | PBT tubes1.80±0.1mm outer diameter, contains 4 fibers. The tubes are filled with a thixotropic gel to prevent the ingress of water |
| Aramid Yarn | Aramid Yarn is laid over the tube core to serve as peripheral strength member |
| Sheath | LSZH outer Sheathis extruded over the glass yarn. Nominal outer diameter is about 3.40mm |
| Sheath Color | Black |
Element Assembly
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 1.20mm |
| Armor | Steel wire braid, coverage 80% |
| Outer Sheath | LSZH, thickness 1.80mm, nominal outer diameter 22.0±2.0mm |
| Sheath Color | Black |
Optical Characteristics:
Optical Fiber
The Multi-mode fibers meet the ITU G.651 specification, as listed below:
| Property | 50/125 fibers | 62.5/125 fibers |
| Attenuation @ 850 nm (dB/km) | ≤3.0 | ≤3.2 |
| Attenuation @ 1300 nm (dB/km) | ≤1.0 | ≤1.2 |
| Added Attenuation with Bending | ≤0.5 dB (850 and 1300 nm for 100 turns around a 75 mm mandrel | |
| Numerical Aperture | 0.20 ±0.02 | 0.275±0.015 |
| Bandwidth @ 850 nm | 400 MHz*km | 160 MHz*km |
| Bandwidth @ 1300 nm | 800 MHz*km | 500 MHz*km |
| Core diameter | 50±3μm | 62.5 ±3μm |
| Cladding diameter | 125±2μm | |
| Core-Claddingoffset | ≤6% | |
| Cladding non-circularity | ≤2% | |
| Core non-circularity | ≤6% | |
| Coating diameter | 245±10 m | |
| Coating / Cladding offset | 12μm | |
| Proof Test | ≥0.69 GN/m2 (100 kpsi) | |
The fibers contain no splices.
