Fire Resistant SWA 16 Conductors UV Resistant & Vermin Proof FRPVC Composite Cable
Construction:
1 Pair Power cable and 1 ground wire
| Conductor | 2.10mm²(42/0.25mm) annealed copper |
| Insulation | PVC material. Thickness 0.5mm |
| Insulation Color | Black and white |
| Ground wire color | Yellow-Green |
6 Page and party pairs, 1 control wire
| Conductor | 0.93mm²(19/0.25mm) annealed copper |
| Insulation | PVC material. Thickness 0.5mm |
| Insulation Pair Color | Red-Black/Red, Violet-black/violet, Green-black/green, Blue-black/ blue,Yellow-black/yellow, Brown-black/brown |
| Control wire color | Orange |

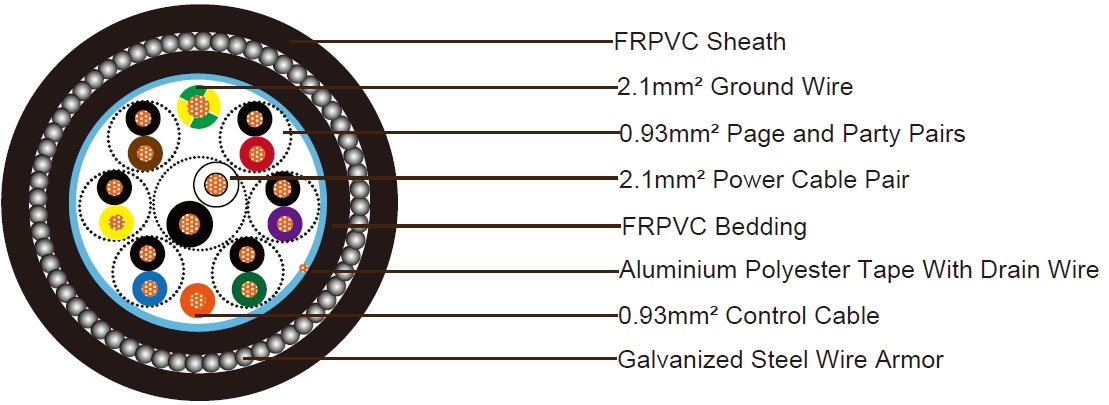

Element Assembly
| Core make-up | Six pairs and control wire laid around power pair and ground wire |
| Collective screen | Aluminium/p.e.t.p. laminated tape applied with the metallic side down
in electrical contact with 7 stranded 0.25mm copper drain wire over the p.e.t.p. binder tape |
| Bedding | 1.0mm FRPVC compound |
| Armor | 1.6mm Galvanized steel wire. 0.2mm 80% Steel wire braid/1.25mm galvanized steel wire are optional |
| Sheath | UV Resistant & Vermin Proof FRPVC compound is applied over armour.. Thickness 1.7mm, Overall diameter 26.75±1.25mm |
| Sheath Color | Black |
