1xRG59 + 4 Core 62.5 Fiber Cable + 3xPower Cable + 2x1x2x24AWG Pairs SWB LSZH Sheathed Composite Cable
Construction:
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid coppe rconductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
4 core 62.5/125 Multi Loose Tube Type Fiber Cable
| Fibers | 4Cx62.5/125 |
| Central Member | Galvanized steel wire |
| Sheath | Nominal outer diameter 9.6mm |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair
| Conductor | 7/0.2mm |
| Insulation | PVC material. Thickness 0.47mm |
| Insulation Color | Black and white |
| Shield | Aluminium polyester tape with 0.5mm² drain wire. Nominal outer diameter 3.5mm |
| Sheath | LSZH (SHF1) sheath. Norminal outer diameter 5.2mm |
3x2.5mm² Power Cable
| Conductor | 1.5mm² wire |
| Insulation | Thickness 0.85mm. Outer diameter 3.6mm |
| Insulation Color | Blue, Brown and Green/Yellow |

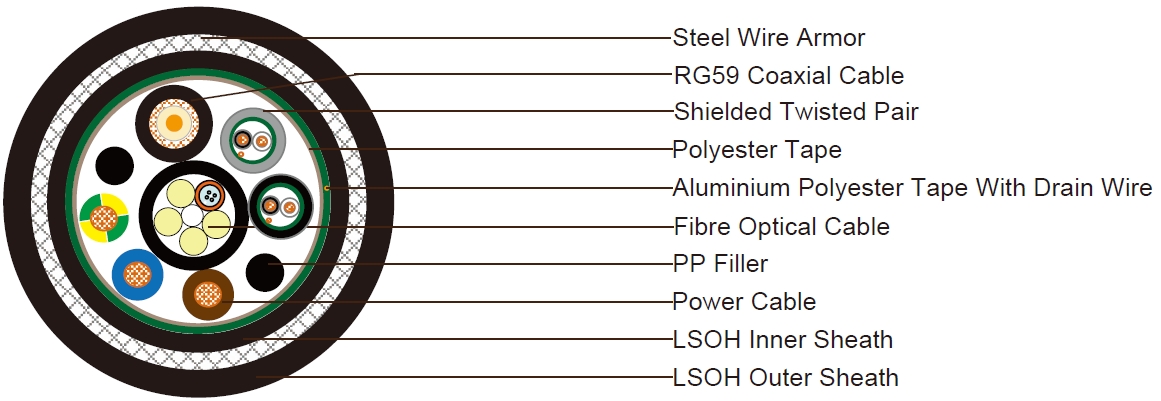

Element Assembly
| Filler | PE or PP material |
| Wrapping Tape | Polyester tape |
| Shield | Aluminium polyester tape with 0.5mm² tinned copper drain wire |
| Inner Sheath | Black LSZH (SHF1) , thickness 1.0-1.2mm |
| Armor | Steel wire braid, coverage 85% |
| Outer Sheath | LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm |
| Sheath Color | Black |
