1xRG179 + 3x1.5mm² Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

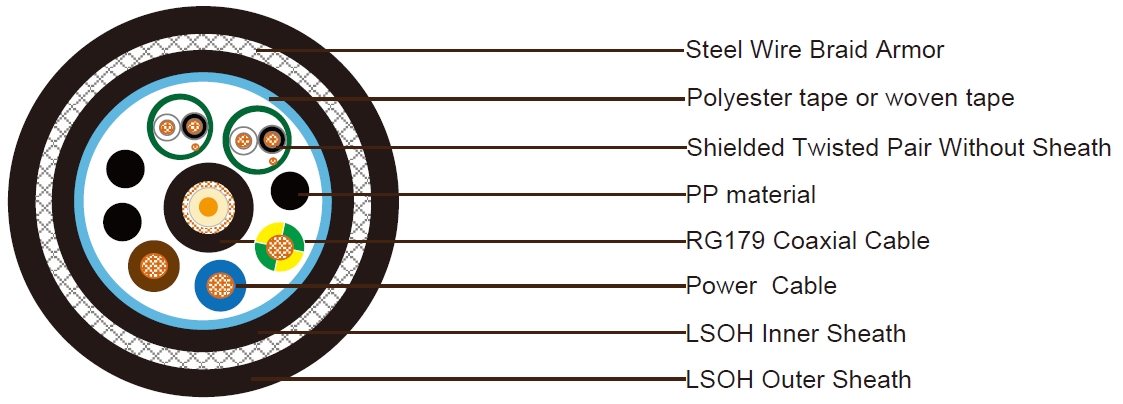

Construction:
1x75Ohm RG179 Coaxial Cable(in the center of the cable core)
| Conductor | 7/0.1mm Sliver plated copper conductor |
| Insulation | Solid PTFE. Diameter: 1.6mm |
| Shield | Braid of silver plated copper wire. Coverage ≥ 95% |
| Sheath | FEP sheath. Nominal outer diameter 2.5mm |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair
| Conductor | 7/0.2mm |
| Insulation | PVC material. Thickness 0.4mm |
| Insulation Color | Black and white |
| Shield | Aluminium polyester tape |
| Drain Wire | 24 AWG drain wire,Nominal outer diameter 3.5mm |
| Sheath | LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm |
| Sheath Color | Black , Grey and Orange |
3x1.5mm² Power Cable
| Conductor | 1.5mm² wire |
| Insulation | XLPE. Outer diameter 3.0mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PE or PP material |
| Wrapping Tape | Polyester tape |
| Inner Sheath | Black LSZH, thickness 0.8mm. Diameter Over Bedding: 11.2mm±0.8mm |
| Armor | Steel wire braid,coverage 85% |
| Outer Sheath | LSZH, thickness 1.5mm, nominal outer diameter is15.8±2.0mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C:
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal capacitance: 63pF/m
- Max. Attenuation: 28dB/100m @50MHz
Power Cable
- Electrical Resistance: 12.1Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance:90Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
- Min Bending Radius: 420mm
- Operating Temperature: -35°C/+80°C
Fire Performance:
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
