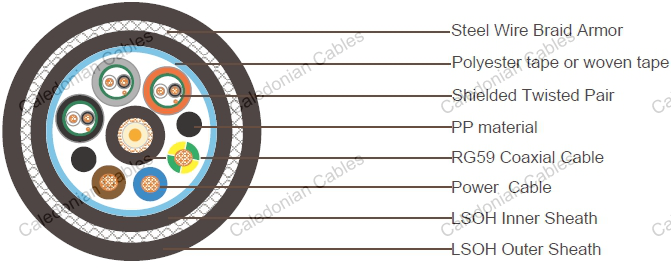

1x RG59+3x12AWG Power Cable+3x1x2x24 AWG Shield Pairs SWB LSZH Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable( in the center of the cable core)

CONDUCTOR	0.58mm Solid copper conductor
INSULATION	Polyethylene. Thickness 1.56mm
SHIELD	Braid of bare copper wire. Coverage ≥ 92%
SHEATH	LSZH sheath. Nominal outer diameter 6.2mm
SHEATH COLOR	Black

3x1x2x24/7 AWG Shielded Twisted Pair ( around coaxial cable)

CONDUCTOR	7/0.2mm Stranded tinned copper
INSULATION	PVC material. Thickness 0.47mm
INSULATION COLOR	Black and white
SHIELD	Aluminium polyester tape
DRAIN WIRE	24 AWG stranded tinned copper drain wire
SHEATH	LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
SHEATH COLOR	Black , Grey and Orange

3x3mm² Power Cable ( around coaxial cable)

CONDUCTOR	3.0mm² Stranded tinned copper wire
INSULATION	XLPE. Thickness 0.85mm. Outer diameter 3.65mm
INSULTION COLOR	Blue, Brown and Green/Yellow

FILLER	PVC or PE material (around coaxial cable)
WRAPPING TAPE	Polyester tape
INNER SHEATH	Black LSZH, thickness 0.8mm
ARMOR	Steel wire braid,coverage 85%
OUTER SHEATH	LSZH, thickness 1.5mm, nominal outer diameter is 22.0mm
SHEATH COLOR	Black

Electrical and Physical Properties @20°C:

Max. Electrical Resistance: 158Ohm/km
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz

Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm

Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C

Flame Propagation: IEC60332-1 & IEC60332-2
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
