    RG59 Coaxial Cable + 2C0.75 NYM Cable + 1P18AWG Instrumentation Cable + 1C18AWG Grounding Cable + Messenger Wire Unarmored PVC Elastomer Sheathed Elevator Composite Cable

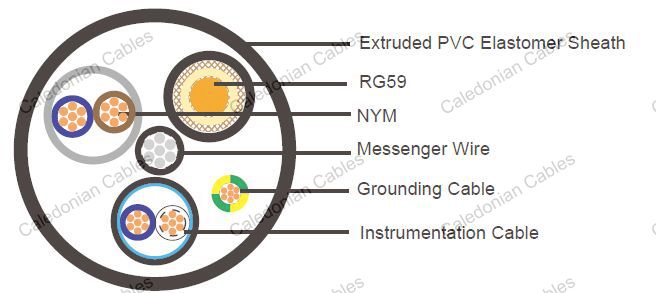

    Construction:

    75Ohm RG59 Coaxial Cable

    CONDUCTOR Copper Clad Steel Conductor
    INSULATION Polyethylene
    SHIELD Braid of bare copper wire, coverage ≥ 85%
    SHEATH PVC elastomer
    SHEATH COLOR Black

    2C0.75MMSQ NYM 500V

    CONDUCTOR Flexible stranded copper
    INSULATION PVC. Thickness 0.6mm
    INSULATION COLOR Blue and Brown
    SHEATH PVC elastomer. Thickness 0.6mm. Gray color

    1P18AWG Instrumentation Cable 300V

    CONDUCTOR Flexible stranded copper
    INSULATION XLPE. Thickness 0.6mm
    INSULATION COLOR Blue and White
    SHIELD Braid of bare copper wire, coverage ≥ 85%
    SHEATH PVC elastomer. Thickness 0.6mm
    SHEATH COLOR Black

    1C18AWG Grounding Cable 300V

    CONDUCTOR Flexible stranded copper conductor
    INSULATION PVC. Thickness 0.6mm
    INSULTION COLOR Green/Yellow

    Messenger Wire

    CONDUCTOR Stranded steel wire
    INSULATION PVC. Thickness 0.6mm
    INSULTION COLOR Black

    Element Assembly

    OUTER SHEATH Extruded PVC elastomer. Thickness 2.5mm.
    OVERALL DIAMETER Nominal outer diameter 21.0±2.0mm
    SHEATH COLOR Black. Other color available as per request

    Electrical and Physical Properties @20°C:

    RG59 Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)
    Max. Attenuation: 7.5dB/100m @50MHz

    2C0.75MMSQ NYM Cable

    Working Voltage: 500V
    Test Voltage: 2000V
    Insulation Resistance: >20 MOhmxkm

    1P18AWG Instrumentation Cable

    Working Voltage: 300V
    Test Voltage: 1500V
    Insulation Resistance: ≥1000 MOhmxkm
