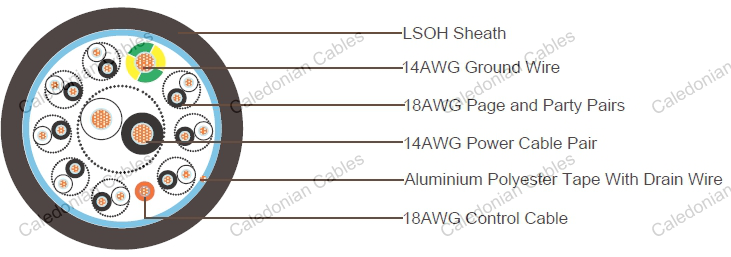

1 Pair Power cable and 1 ground wire
| CONDUCTOR | 14AWG (19/0.361mm) annealed copper |
|---|---|
| FIRE BARRIER | Mica/Glass Tape |
| INSULATION | XLPE material. Thickness 0.7mm |
| INSULATION COLOR | Black and white |
| GROUND WIRE COLOR | Yellow-Green |
8 Party Line and Spare Pair, 1 control wire
| CONDUCTOR | 18AWG (19/0.254mm) annealed copper |
|---|---|
| FIRE BARRIER | Mica/Glass Tape |
| INSULATION | XLPE material. Thickness 0.7mm |
| INSULATION PAIR COLOR | Black & White with Pair Number |
| CONTROL WIRE COLOR | Orange |
| CORE MAKE-UP | The power pair, ground wire, Party Line and Spare Pair, and control wire are twistedtogether. Fillers will be used if necessary. |
|---|---|
| BINDER TAPE | The polyester tape is wrapped over the cable cores |
| SHEATH | UV Resistant, Flame Retardant LSZH is applied over armour.. Thickness 1.5mm, Overall diameter 29.5±2.0mm |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 566 kg/km |
Electrical and Physical Properties @20°C:
Power Pair, Ground Wire
Max. Conductor Resistance: 8.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm
Party Line and Spare Pair, Control Wire
Max. Conductor Resistance: 17.9Ohm/km at 20ºC
Insulation Resistance: ≥1000 MOhmxkm Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
Fire Resistance: IEC 60331
Flame Propagation: IEC60332-1 & IEC60332-3C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
