DVI Digital Single Link Cable(5 Pair + 3c)

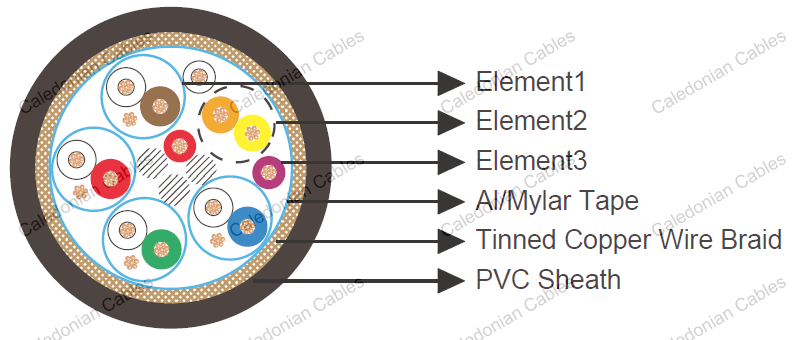

Construction

ELEMENT 1: 4PR×28AWG(CU/S.S. CELL/INDIVIDUAL AL-MYLAR SCREEN+ TC DRAIN WIRE)

CONDUCTOR	Stranded annealed tinned copper wire, 7/36AWG
INSULATION	S.S. cell. Thickness 0.305mm. Outer diameter 0.98+0.07mm
CORE IDENTIFICATION	1PR=White/Brown, 2PR=White/Red, 3PR=White/Green, 4PR=White/Blue
TWISTING	The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm
INDIVIDUAL SHIELD	Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 28AWG tinned copper drain wire (7 strands formation). A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap.

ELEMENT 2: 1PR×28AWG(7/36AWG) STRANDED TC/PE

CONDUCTOR	Stranded annealed tinned copper wire, 7/36AWG
INSULATION	High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.03mm
INSULATION COLOR	Yellow and orange
TWISTING	The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm, Outer diameter 1.4mm

ELEMENT 3: 3C×28AWG(7/36AWG) STRANDED TC/PE

CONDUCTOR	Stranded annealed tinned copper wire, 7/36AWG
INSULATION	High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.03mm
INSULATION COLOR	Red/Purple/White

ELEMENT ASSEMBLY

OVERALL SCREEN	Aluminum/ mylar tape
BRAID SHIELD	Braid of tinned copper wire. Coverage ≥ 85%
OUTER SHEATH	PVC sheath,Thickness 0.87mm. Outer diameter 7.3+0.2mm, other materail is optional
SHEATH COLOR	Black or as per the client's requirement

Physical Properties:

Temperature rating: -25°C to +80°C
Minimum bending radius: 3 x Overall Diameter

Electrical Properties:

Rated voltage: 30V
Max conductor resistance at 20°C: ≤237 Ohm/Km
Min insulation resistance: ≥100M Ohm/m
Spark test: Min. AC 500V/0.15second
Nom. differential impedance: 100+5 Ohm
Mutual capacitance: 46pF/m

Fire Performance in General:

Vertical flame propagation for a single insulated wire or cable
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101

Fire Performance Relating to Rolling Stock Application:

DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
