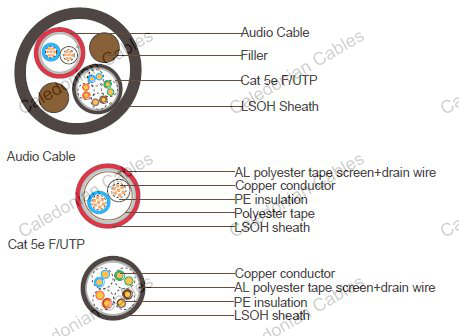

2C x0.75mm² Audio Cable
| CONDUCTOR | 0.75mm2 stranded copper wire, class 5 to IEC60228. |
|---|---|
| INSULATION | PE. Nominal thickness 0.6mm. |
| INSULATION COLOR | White and blue. |
| SCREEN | Alumminum tape with tinned copper drain wire. |
| SHEATH | LSZH sheath. Nominal thickness 1.0 mm. |
| SHEATH COLOR | Red. |
| GGENERAL STANDA R D | Basic design to EN50288-7. |
Cat 5e F/UTP
| CONDUCTOR
|
Cat 5e F/UTP |
|---|---|
| INSULATION
|
PE material. Nominal diameter is 0.91mm. |
| INSULATION COLOR | White-orange,Orange;White-blue,Blue; |
| White-green,Green;White-brown,Brown. | |
| SCREEN | LSZH sheath. Nominal overall diameter is 6.7 mm. |
| SHEATH | LSZH sheath. Nominal thickness 0.76 mm. Overall diameter 4.8mm |
| SHEATH COLOR | Black or Grey or Blue. Other colors also available upon request. |
| APPLICA T I O N S | IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; |
| IEEE 802.5 16 MB; ISDN; TPDDI; ATM. | |
| STANDARDS | ISO/IEC 11801, ANSI/TIA/EIA 568B. |
| FILLER | PE material. |
|---|---|
| WRAPPING TAPE | Polyester tape or woven tape. |
| OUTER SHEATH | LSZH. Nominal thickness 1.8mm. |
| SHEATH COLOR | Black. Other colors also available upon request. |
Max.Electrical Resistance: 26 Ohm/km
Min. Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+90°C
Voltage rating: 300/500V
Max.Electrical Resistance: 93.8 Ohm/km
Min.Insulation Resistance: 2000 MOhm/km
Operating Temperature: -20°C/+90°C
Max.Resistance Unbalance: 5%
Max. Mutual Capacitance: 5.6nF/100m
Max. Capacitance Unbalance: 330pF/100m
Characteristic Impedance : 100 ± 15 (1-100MHz)
Nominal Velocity of Propagation: 69%
Max. Propagation Delay : 536ns/100m@100MHz
Max.Propagation Delay skew : 30ns/100m
