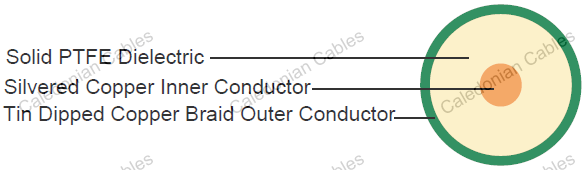

| Inner conductor | Silver plated copper | Φ0.91 mm |
| Dielectric | Solid PTFE | Φ2.98 ± 0.10 mm |
| Outer conductor | Tin Dipped Copper Braid | Φ3.58± 0.10mm |
| Shield coverage | 100% |
| Impedance | 50±2 Ohm |
| Nominal capacitance | 95.1 pF/m |
| Velocity of propagation | - |
| Insulation resistance | - |
| Inner conductor resistance | - |
| Outer conductor resistance | - |
| Max. operating voltage | 1.9KV |
| Operating temperature range | -55°C - +155 °C |
| Min. bending radius | 8 mm |
| Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
| 0.5 | 26 | 8.0 |
| 1 | 39 | 12.0 |
| 5 | 99 | 30.0 |
| 10 | 152 | 46.0 |
| 20 | 239 | 73.0 |
