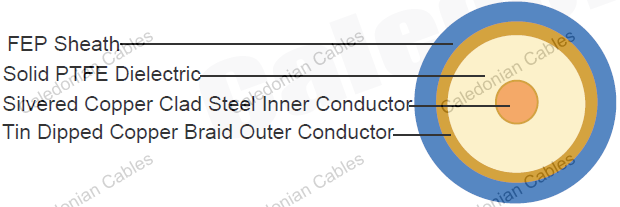

Inner conductor | Silver plated copper clad steel | Φ0.91 mm |
Dielectric | Solid PTFE | Φ2.98 ± 0.10 mm |
Outer conductor | Tin Dipped Copper Braid | Φ3.58± 0.10mm |
Shield coverage | 100% | |
Sheath | FEP | Φ4.10 mm |
Impedance | 50±2 Ohm |
Nominal capacitance | 95.1 pF/m |
Velocity of propagation | - |
Insulation resistance | - |
Inner conductor resistance | - |
Outer conductor resistance | - |
Max. operating voltage | 1.9KV |
Operating temperature range | -55°C - +155 °C |
Min. bending radius | 8 mm |
Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
---|---|---|
0.5 | 26 | 8.0 |
1 | 39 | 12.0 |
5 | 99 | 30.0 |
10 | 152 | 46.0 |
20 | 239 | 73.0 |
