    SF047-FEP

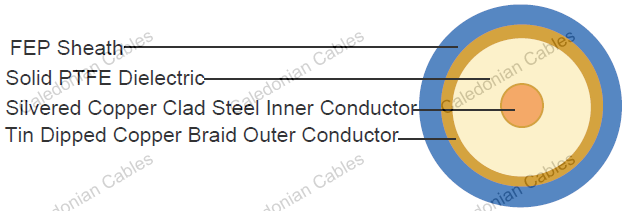

    Construction

    Inner conductor Silver plated copper clad steel Φ0.29 mm
    Dielectric Solid PTFE Φ0.94 ± 0.10 mm
    Outer conductor Tin Dipped Copper Braid Φ1.19 ± 0.10mm
    Shield coverage   100%
    Sheath FEP Φ1.60 mm

    Electrical & Mechanical Characteristics

    Impedance 50±2 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance -
    Inner conductor resistance -
    Outer conductor resistance -
    Max. operating voltage 1.5KV
    Operating temperature range -55°C - +155 °C
    Min. bending radius 4 mm

    Attenuation

    Frequency (GHz) Max. Attenuation (dB/100m) Max. Attenuation (dB/100ft)
    0.5 82 25
    1 118 36
    5 269 82
    10 420 128
    20 578 176
