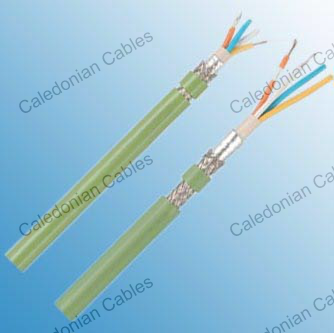

    ProfiNet Type B+C

    • ProfiNet Type B+C

    Application and Description

    Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

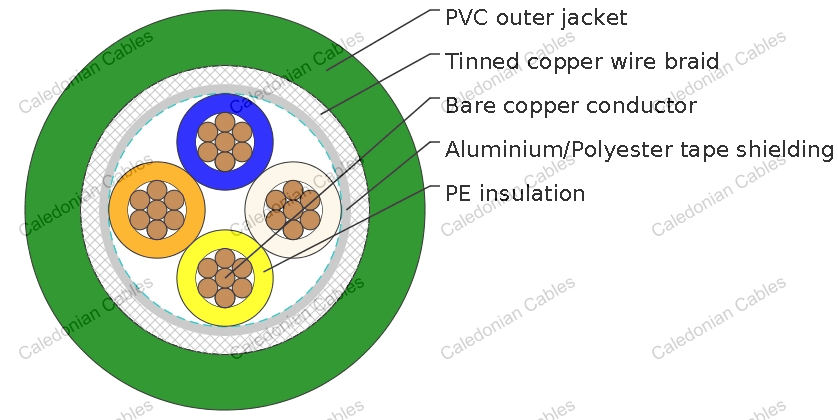

    Construction

    Type/Area of Application Mobile Use Drag Chain Applications
    Cable Construction 2x2x0.64 mm (stranded) 2x2x0.64 mm (stranded)
    Inner Conductor Diamete Copper, tinned (AWG 22/7) Copper, tinned (AWG 22/7)
    Conductor Insulation PE PE
    Conductor Colors white, yellow, blue, orange white, yellow, blue, orange
    Stranding Element Star quad Star quad
    Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
    Shielding Polyester foil, aluminum-lined Polyester foil, aluminum-lined
    Total Shielding Cu braid, tinned Cu braid, tinned
    Inner Jacket Material PVC FRNC
    Outer Jacket Material PVC PUR
    Outer Diameter 6.5 mm ± 0.2 mm 6.5 mm ± 0.2 mm
    Outer Jacket Color Green Green

    Electrical Data

    Characteristic Impedance@1-100 MHz 100 Ω ± 15 Ω
    Conductor Resistance 60.0 Ohm/km max.
    Insulation Resistance 0.50 GOhm x km min.
    Mutual Capacitance 52.0 nF/km nom.
    Working Voltage 300V
    Test Voltage 1.5 KV
      10 MHz 6.0 dB/100m
    Attenuation 16 MHz 7.6 dB/100m
      62.5 MHz 16 dB/100m
      100 MHz 21 dB/100m

    Technical Data

    Weight approximately 63.0 kg/km
    Min. Bending Radius (Laying) 5 x OD mm
    Operating Temp.Range, min. -40 °C
    Operating Temp.Range, max. +70 °C
