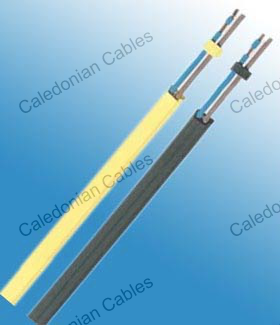

ASI is standardized Europe-wide in EN 50295 and internationally in IEC 62026-2.Network system for the lowest field level (binary sensors and actuators). Data and energy are transmitted between control unit and peripherals via an unscreened, geometrically coded two-core flat cable (pole safe). The conductor is contacted by piercing technology within the ASI-modules. The special outer jacket provides protection against bio-oil, grease, and refrigerant lubricants, and the cable is therefore even suitable for applications in wet surroundings, in machinery and plant construction, as well as in the machine tool and automotive industry.
| Type/Area of Application | Actuator Sensor Interface |

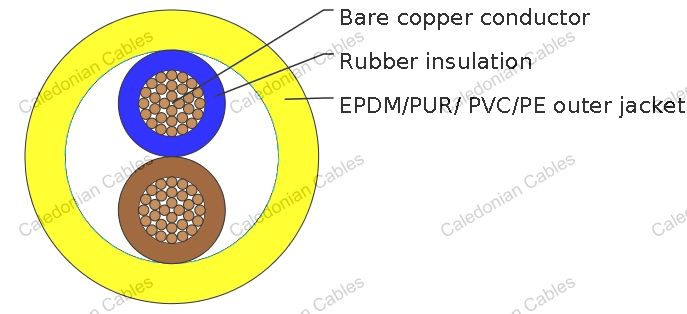

| Cable Construction | 2x1.5 mm2 |
| Inner Conductor Diameter | Copper, tinned |
| Conductor Insulation | Rubber Compound /TPE |
| Conductor Colors | Blue, brown |
| Stranding Element | - |
| Shielding | - |
| Shielding 2 | - |
| Total Shielding | - |
| Outer Jacket Material | EPDM/PUR/ PVC/PE |
| Outer Jacket Color | Yellow /Black |
| Conductor Resistance | 27.4 Ohm/km max. |
| Insulation Resistance | 1.00 GOhm x km min. |
| Working Voltage | Max: 300 V |
| Test Voltage | 1.0 KV at 15 min. |
| Weight | approximately 57.0 kg/km |
| Min. Bending Radius (Laying) | 6 x OD mm |
| Operating Temp.Range, min. | - 40 °C |
| Operating Temp.Range, max. | +85 °C |
