Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9844

These cables have pairs laid up in a foil/braid screen, suitable for RS 485 applications.

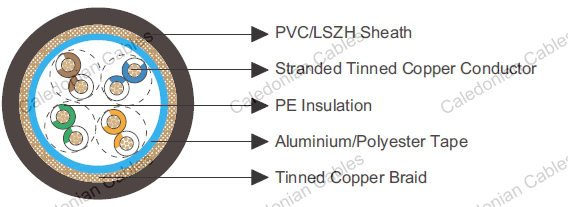

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 90% coverage.

Sheath: PVC/LSZH.

Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White.

AWG		24
CONDUCTOR CONSTRUCTION		7x0.2
UL STYLE		2919
MAXIMUM CONDUCTOR RESISTANCE	Ω/KM	85
VOLTAGE RATING	V	30
NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR	PF/M	42
NOMINAL CAPACITANCE CONDUCTOR TO SCREEN	PF/M	76
BENDING RADIUS		10xOverall Diameter
OPERATING TEMPERATURE	℃	-30~80

ORDERING CODE	NO. OF PAIRS	INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER
		MM	MM	MM
BE119844V	4	0.6	0.81	9.9
BE119844H	4	0.6	0.81	9.9
