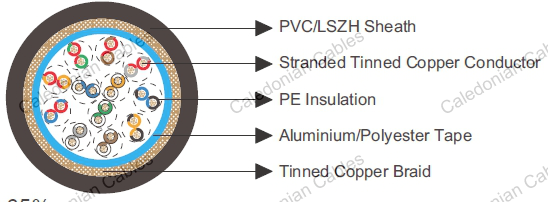

These cables have pairs laid up in a foil/braid screen, suitable for RS 232 & RS 422 applications.
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 65% coverage.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/ Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black.
| AWG | 24 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.2 | |
| UL STYLE | 2919 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 85 |
| VOLTAGE RATING | V | 30 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 51 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 90 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -30~80 |
| ORDERING CODE | NO. OF PAIRS | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119836V | 12 | 0.38 | 0.97 | 12.2 |
| BE119836H | 12 | 0.38 | 0.97 | 12.2 |
