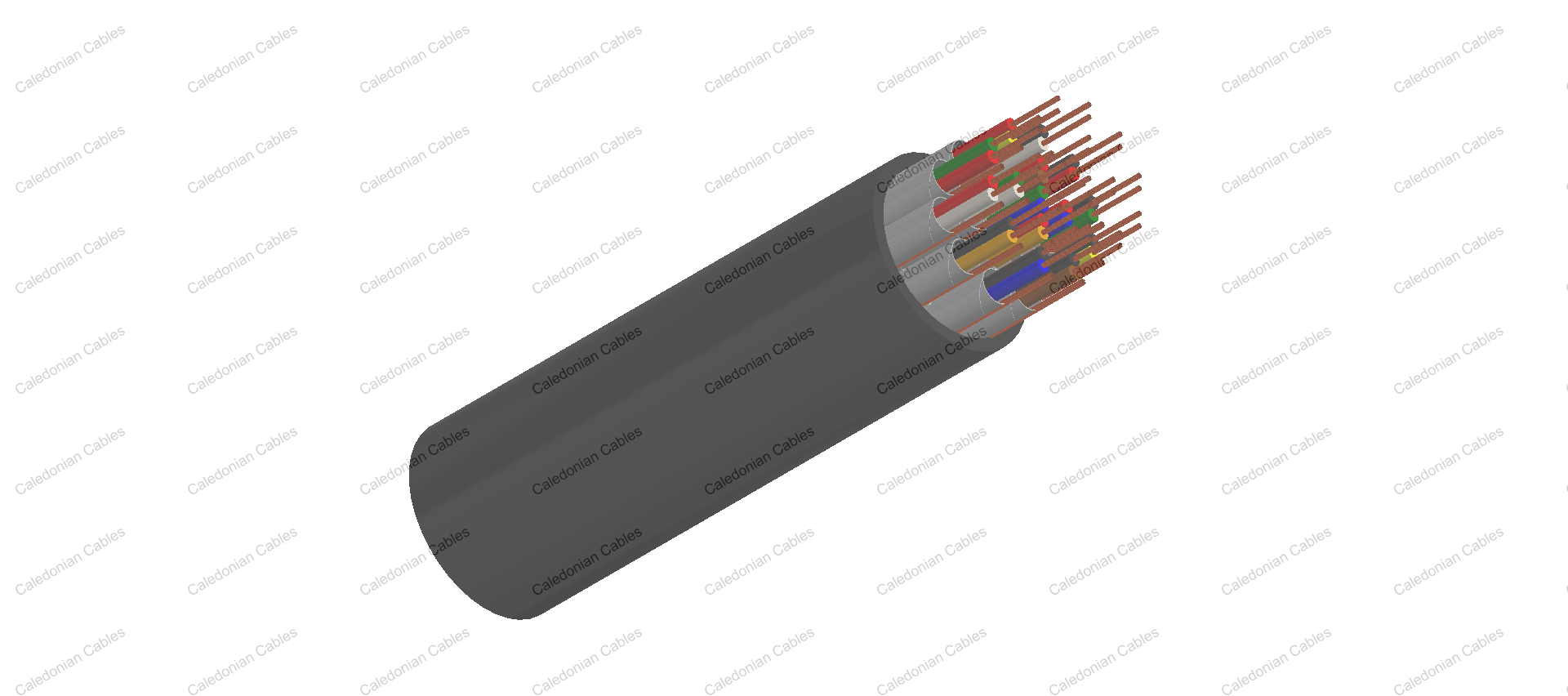

    Multipair Individually Screened Cables-Belden Equivalent 9777

    • Multipair Individually Screened Cables-Belden Equivalent 9777 BE119777H
    • Multipair Individually Screened Cables-Belden Equivalent 9777 BE119777H
    • Multipair Individually Screened Cables-Belden Equivalent 9777 BE119777V
    • Multipair Individually Screened Cables-Belden Equivalent 9777 BE119777V

    Application

    These cables have individually screened pairs laid up. Each individually screened pair has a 20AWG stranded tinned copper drain wire. These cables are used as computer cables.

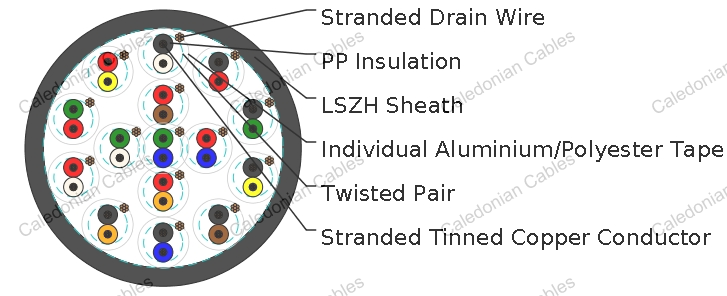

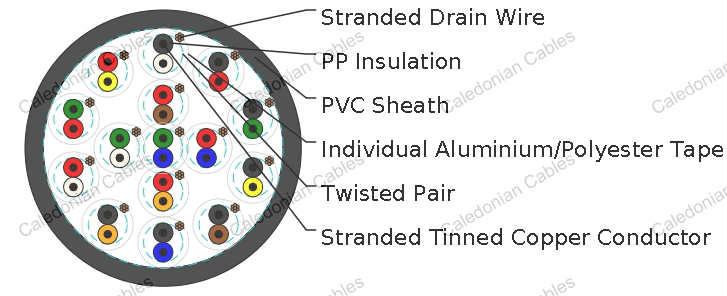

    Construction

    Conductor: Tinned copper wire.

    Insulation: PP.

    Individual Screen: Aluminium/Polyester Tape.

    Drain Wire: Tinned copper wire.

    Sheath: PVC/LSZH.

    Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue.

    Electrical & Mechanical Characteristics

    AWG   18
    CONDUCTOR CONSTRUCTION   19x0.254
    UL STYLE   2919
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 21
    VOLTAGE RATING V 30
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 98
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 180
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE -20~80

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119777V 15 0.4 1.22 20.8
    BE119777H 15 0.4 1.22 20.8
