These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

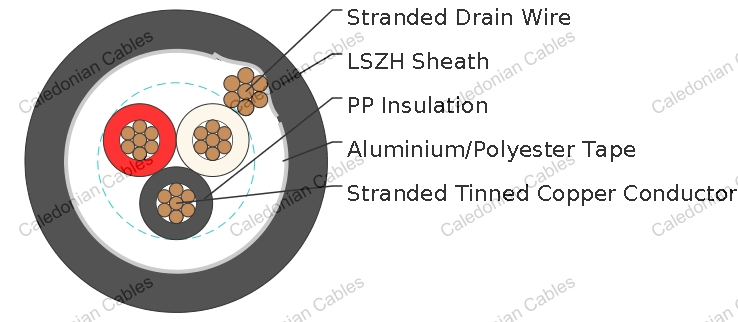

Conductor: Tinned copper wire. Insulation: PP. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Red, White.
| AWG | 22 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.254 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 54.8 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 105 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 197 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~90 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119770V | 3 | 0.20 | 0.51 | 3.7 |
| BE119770H | 3 | 0.20 | 0.51 | 3.7 |
