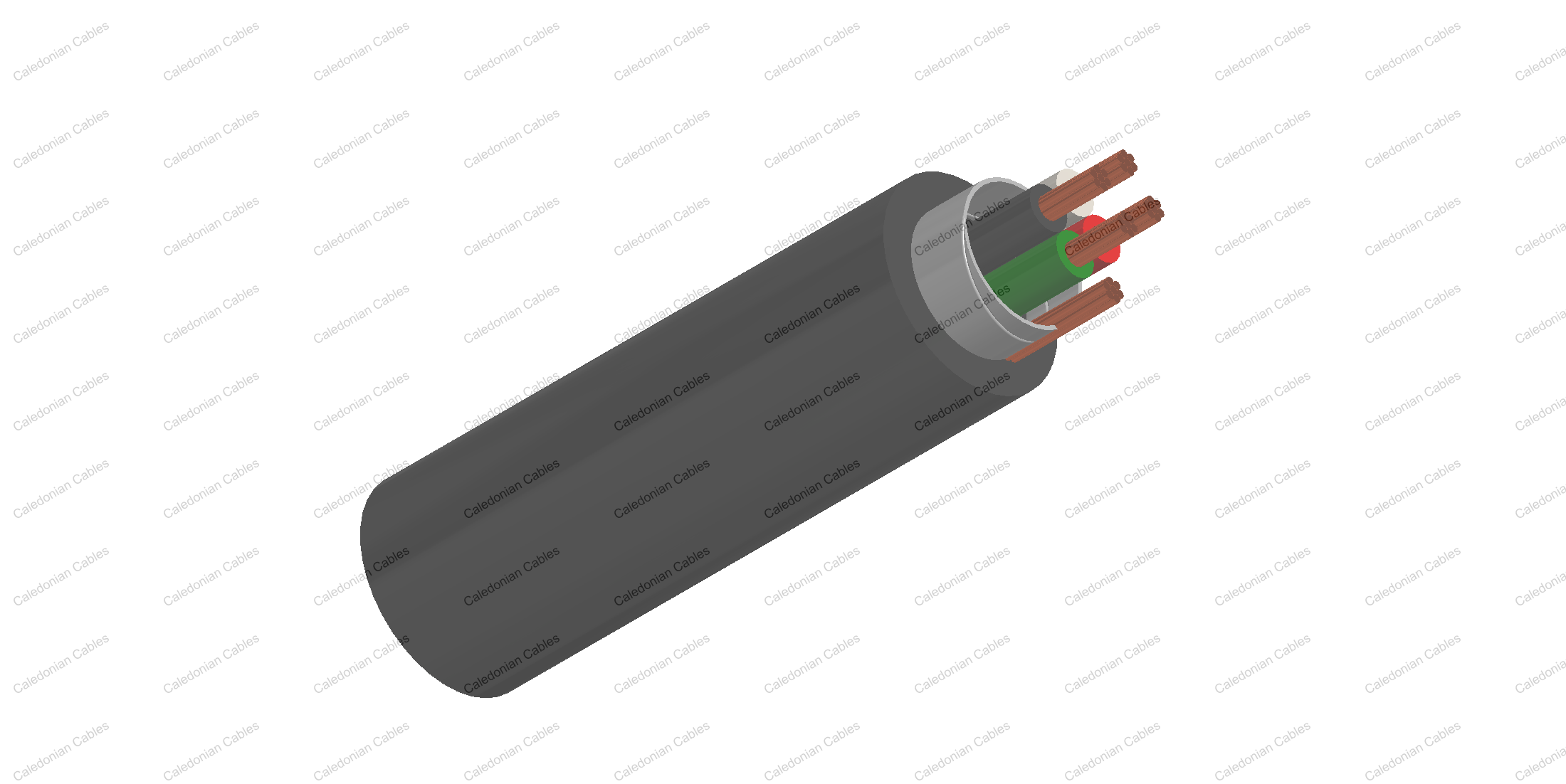

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

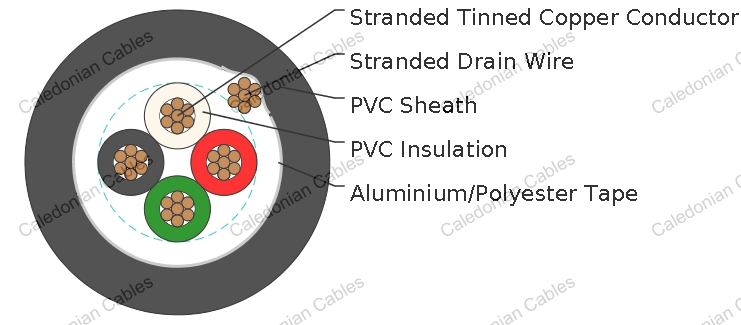

Conductor: Tinned copper wire. Insulation: PVC. Overall Screen: Aluminium/Polyester tape. Drain Wire: Stranded tinned copper, 7x0.20. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, White, Red, Green.
| AWG | 24 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.20 | |
| UL STYLE | 2464 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 85 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 108 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 213 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -30~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119534V | 4 | 0.25 | 0.81 | 4.7 |
| BE119534H | 4 | 0.25 | 0.81 | 4.7 |
