These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Conductor: Tinned copper wire. Insulation: Semi-Rigid PVC. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue.
| AWG | 24 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.2 | |
| UL STYLE | 2464 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 85 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 98 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 164 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -30~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||

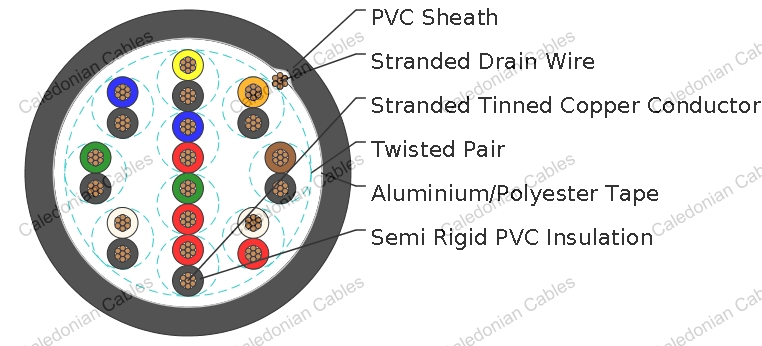

| BE119510V | 10 | 0.25 | 1.02 | 9.4 |

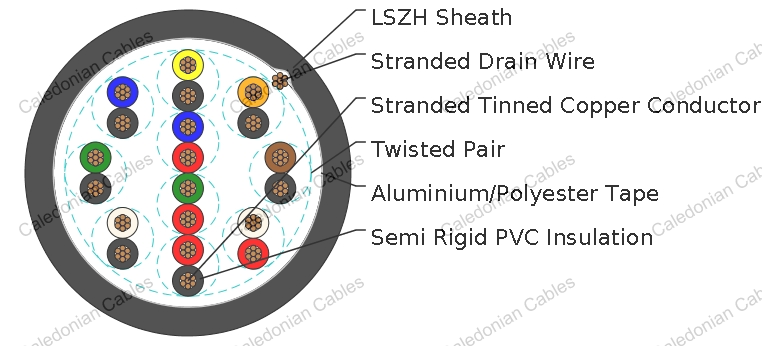

| BE119510H | 10 | 0.25 | 1.02 | 9.4 |
