Application

These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG solid tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

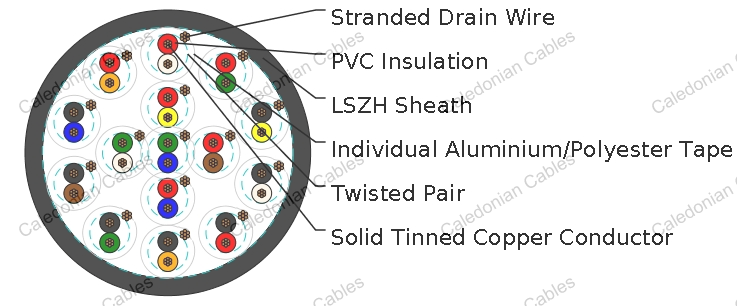

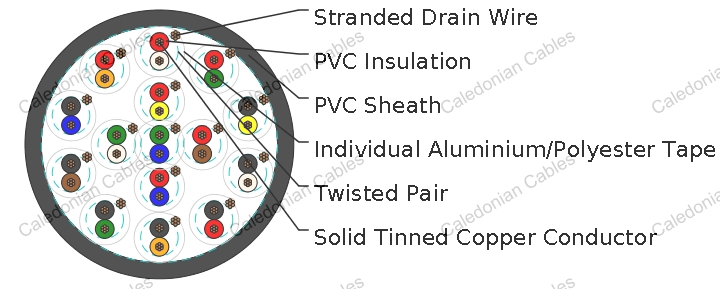

Construction

Conductor: Tinned copper wire.

Insulation: PVC.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Solid tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue.

Electrical & Mechanical Characteristics

Dimensions
