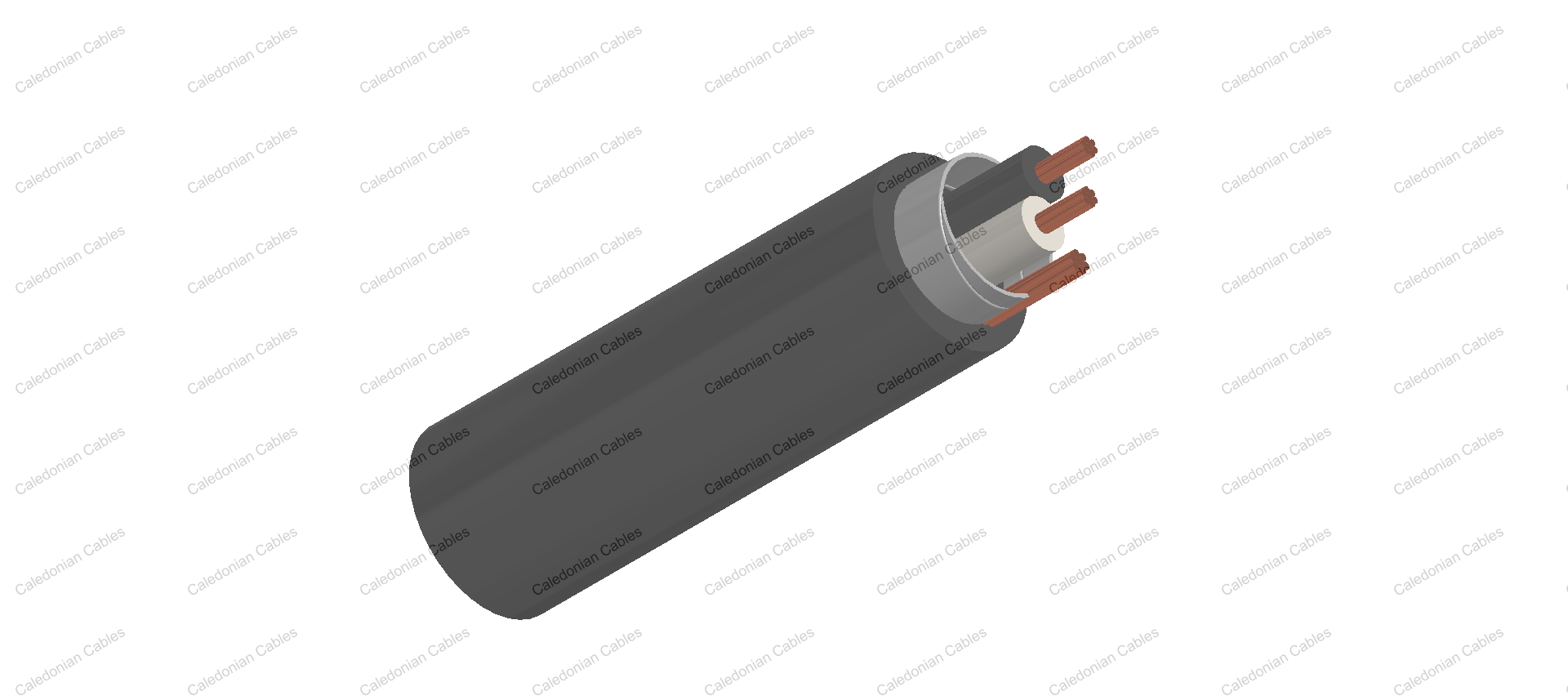

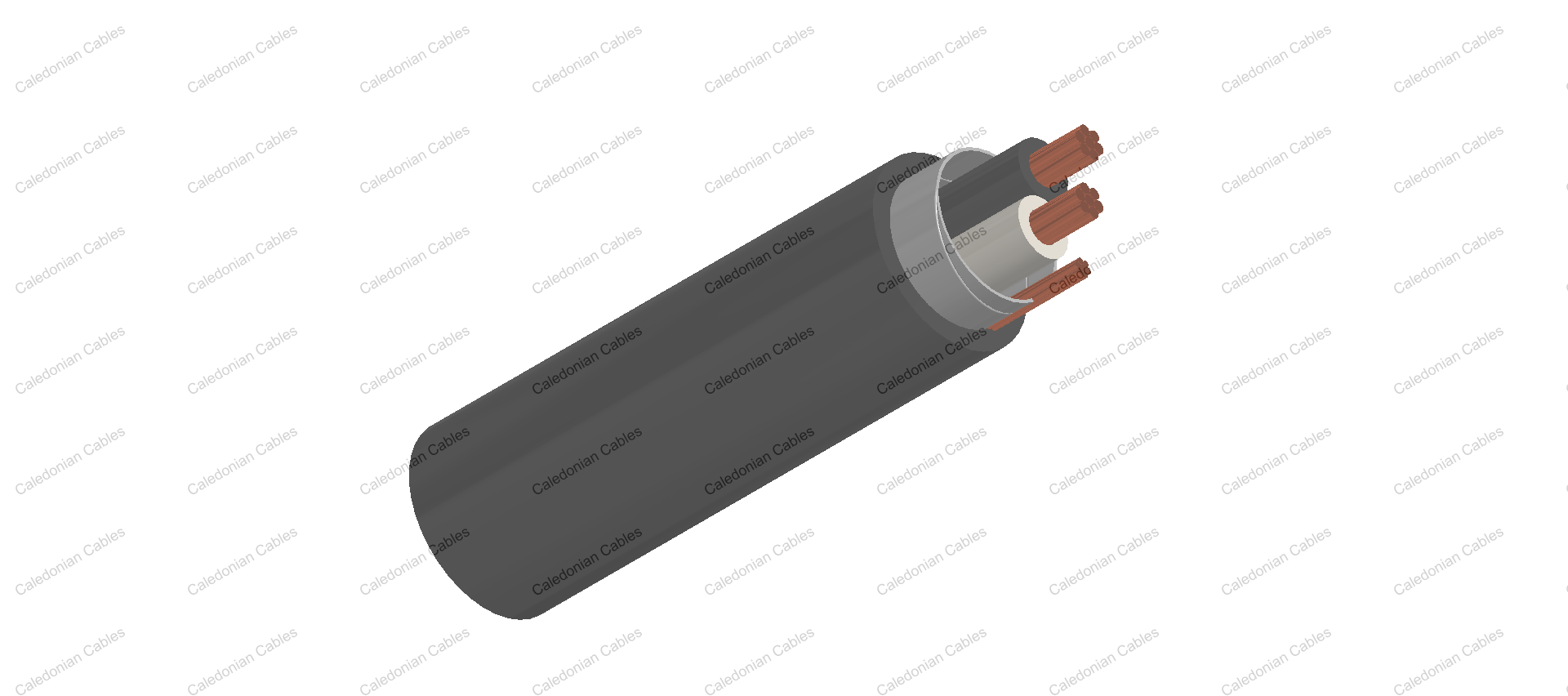

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a stranded tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

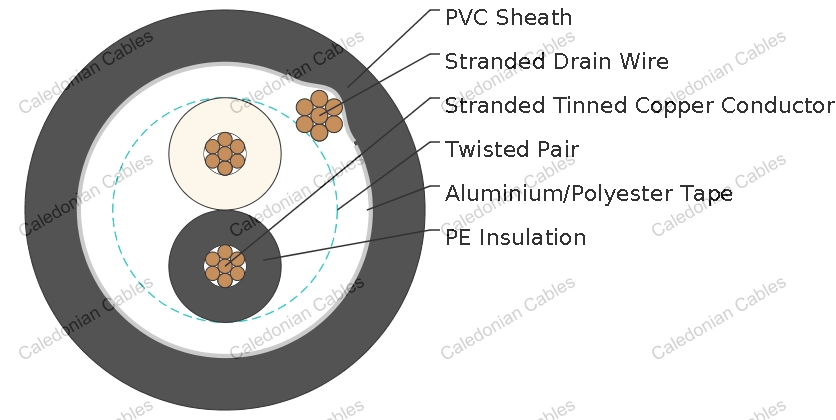

Conductor: Tinned copper wire. Insulation: PE. Overall Screen: Aluminium/Polyester tape. Drain Wire: Tinned copper wire. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, Clear.
| AWG | 24 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.2 | |
| UL STYLE | 2092 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 85 |
| VOLTAGE RATING | V | 300 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 72 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 138 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF CORES | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE118641V | 1 | 0.41 | 0.64 | 4.3 |
| BE118641H | 1 | 0.41 | 0.64 | 4.3 |
