Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8307

These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS-232 and CAD/CAM applications, used as computer cables.

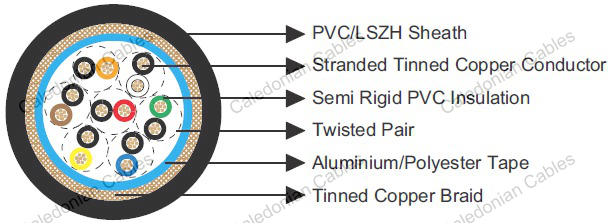

Conductor: Tinned copper wire.

Insulation: Semi Rigid PVC.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange.

AWG		22
CONDUCTOR CONSTRUCTION		7x0.254
UL STYLE		2464
MAXIMUM CONDUCTOR RESISTANCE	Ω/KM	54.8
VOLTAGE RATING	V	300
NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR	PF/M	115
NOMINAL CAPACITANCE CONDUCTOR TO SCREEN	PF/M	207
BENDING RADIUS		10xOverall Diameter
OPERATING TEMPERATURE	℃	-30~80

ORDERING CODE	NO. OF PAIRS	INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER
		MM	MM	MM
BE118307V	7	0.25	0.81	8.8
BE118307H	7	0.25	0.81	8.8
