Application

These cables have individually screened pairs laid up in a foil/braid screen. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for EIA RS-232 and EIA RS-422 applications, used as computer cables.

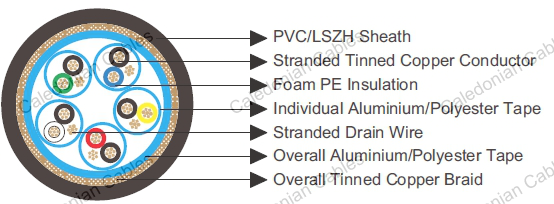

Construction

Conductor: Tinned copper wire.

Insulation: FoamPE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow.

Electrical & Mechanical Characteristics

AWG   24 CONDUCTOR CONSTRUCTION   7x0.2 UL STYLE   2493 MAXIMUM CONDUCTOR RESISTANCE Ω/KM 85 VOLTAGE RATING V 300 NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 41 NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 72 BENDING RADIUS   10xOverall Diameter OPERATING TEMPERATURE ℃ -40~60

Dimensions
