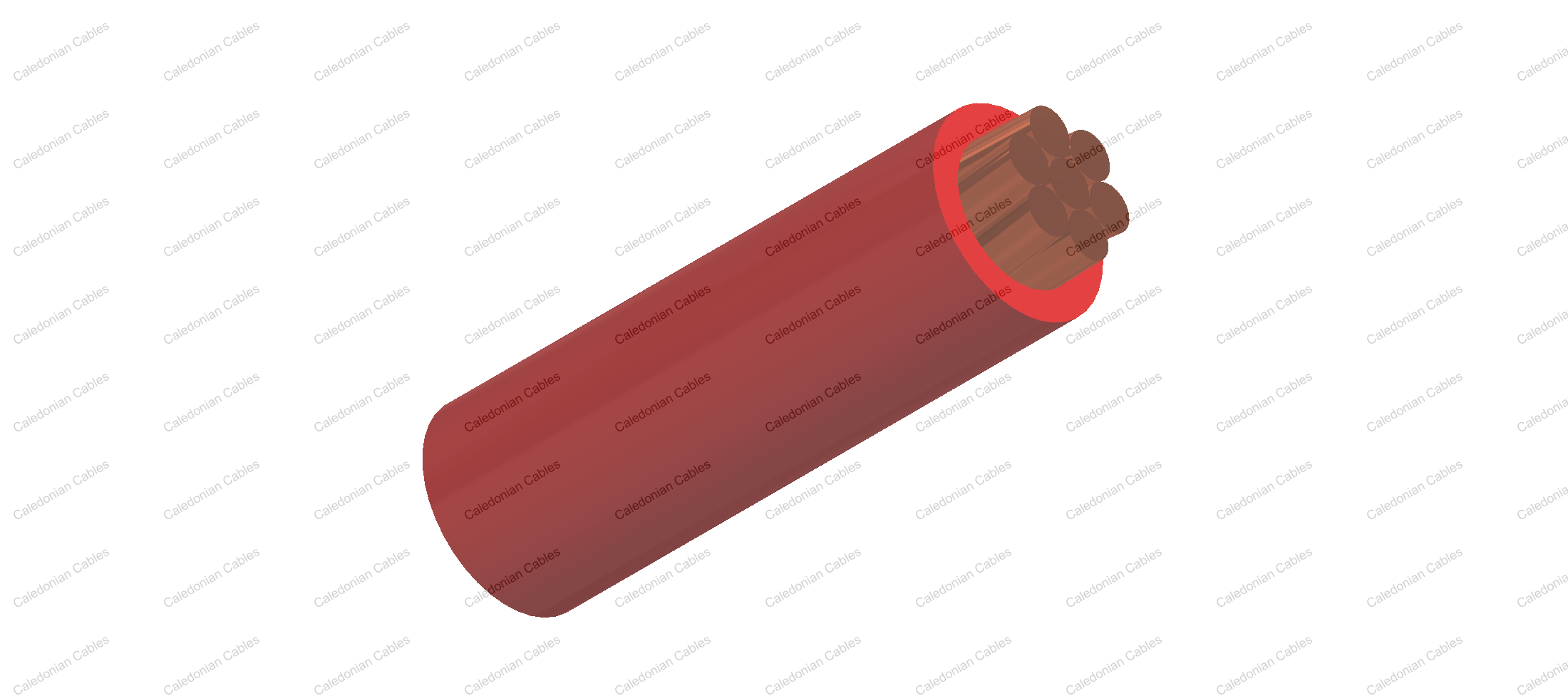

    WTA

    Application and Description

    This PVC insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

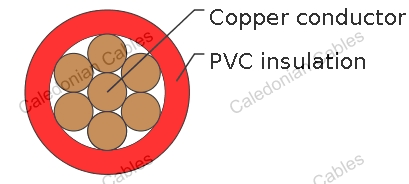

    Construction

    • Conductor: Soft-annealed copper according to ASTM B
    • Insulation: PVC Ultra-Thin wall according to SAE J 1678 ford WSBM1 L134-A/Chrysler MS 9532/Lear UTMS 12501/SAEJ 1678
    • Standard Compliance: SAE J1678

    Special properties:

    Flexible

    Technical Parameters

    Operating temperature:–40 °C to +85°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter of
    Conductor
    max.    		 Nominal
    thickness    		 Overall
    Diameter
    max.    		 Weight
    Approx.
    AWG mm2 No./mm mm mm mm kg/km
    22 1x0.35 7/0.25 0.76 0.20 1.35 4
    20 1x0.50 7/0.32 0.97 0.20 1.55 7
    18 1x0.80 19/0.23 1.17 0.20 1.75 8
    16 1x1.3 19/0.28 1.45 0.20 2.03 12
    14 1x2 19/0.36 1.8 0.20 2.39 19
    12 1x3 19/0.45 2.3 0.24 3.00 30

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
