    SGT

    • SGT American Standard Automotive Cable

    Application and Description

    This PVC insulated single-core cable is used for automotive starters or battery grounds.

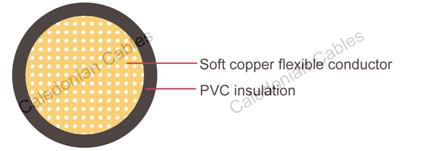

    Construction

    • Conductor: Soft copper flexible conductor
    • Insulation: PVC
    • Standard Compliance: SAE J1127

    Technical Parameters

    Operating temperature:–40 °C to +80 °C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Size Nominal cross- section No. and Dia. of Wires Diameter
    max.    		 Thickness
    Wall
    nom.    		 Overall
    Diameter
    max.    		 Weight
    Approx.
    AWG mm2 No./mm mm mm mm kg/km
    6 1 x 13.48 266/0.26 4.12 1.52 6.58 152
    4 1 x 21.28 420/0.26 6.72 1.65 9.40 243
    2 1 x 33.70 665/0.26 8.58 1.65 11.26 368
    1 1 x 42.36 836/0.26 9.77 1.65 12.45 454
    1/0 1 x 53.91 1064/0.26 11.10 1.65 13.78 568
    2/0 1 x 67.04 1323/0.26 12.47 1.65 15.15 697
    3/0 1 x 84.42 1666/0.26 14.10 1.98 17.30 886
    4/0 1 x 106.76 2107/0.26 15.97 1.98 19.17 1105

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
