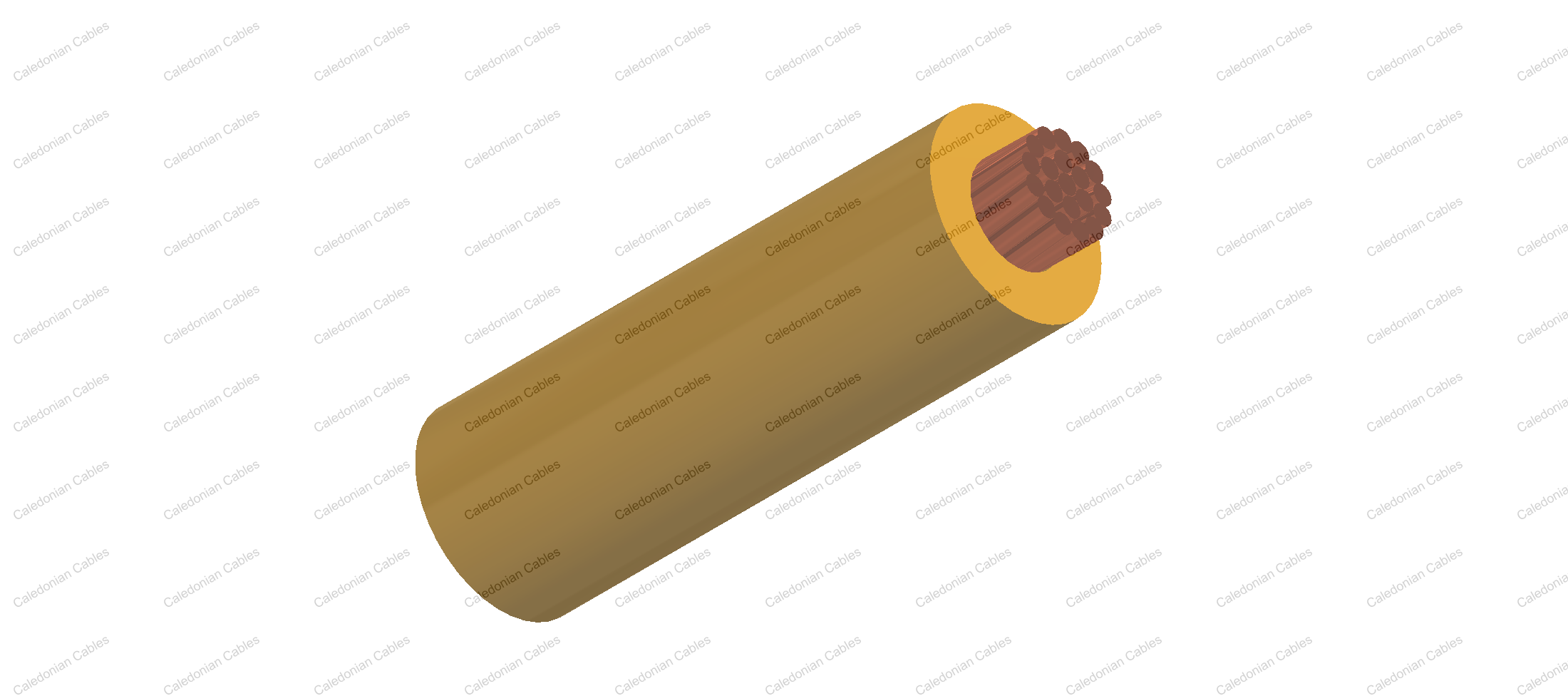

    AHFX

    Japanese Standard Automotive Cable

    Application and Description

    This Fluoroelastomer insulated single-core cable is used in Fuel Pump and Transmission for automobiles, Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

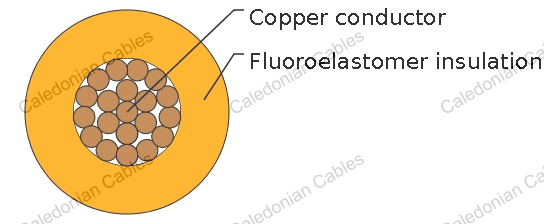

    Construction

    • Conductor: Tin coated annealed stranded copper
    • Insulation: Fluoroelastomer
    • Standard Compliance: KIS-ES-8093

    Technical Parameters

    Operating temperature:–40 °C to +200°C

    Dimensions and Weight

      Conductor Construction Insulation Cable
    Nominal cross- section No. and Dia. of Wires Diameter
    max.    		 Electrical
    Resistance at
    20°C
    Max.    		 Thickness
    Wall
    nom.    		 Overall
    Diameter
    min.    		 Overall
    Diameter
    max.    		 Weight
    Approx.
    mm2 No./mm mm mΩ/m mm mm mm kg/km
    1x0.50 20/0.18 0.9 38.2 0.4 1.55 1.85 7.8
    1x0.75 19/0.23 1.2 24.7 0.4 1.75 2.05 10.8
    1x1.25 50/0.18 1.4 15.9 0.4 2.15 2.45 16.7
    1x2.00 37/0.26 1.8 10.5 0.4 2.45 2.75 23.5

    *Note: Other configurations, sizes, colors and length not specified herein are available upon request.
