HDT
Applications
This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

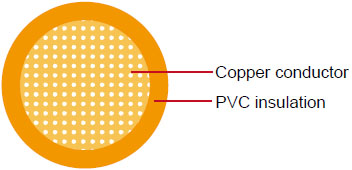

Construction
| Conductor |
Soft-annealed copper according to ASTM B3 |
| Insulation |
PVC |
| Standard Compliance |
SAE J1128 |
Technical Parameters
Operating temperature: –40 °C to +85 °C
| Conductor |
Insulation |
Cable |
| Size |
Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Thickness Wallnom. |
Overall Diameter max. |
Weight approx. |
| AWG |
mm2 |
No./mm |
mm |
mm |
mm |
kg/km |
| 20 |
1 x 0.50 |
7/0.32 |
1.00 |
0.91 |
2.80 |
13 |
| 18 |
1 x 0.80 |
19/0.23 |
1.50 |
0.94 |
3.00 |
7 |
| 16 |
1 x 1.00 |
19/0.29 |
1.50 |
1.02 |
3.50 |
22 |
| 14 |
1 x 2.00 |
19/0.36 |
1.80 |
1.04 |
3.90 |
31 |
| 12 |
1 x 3.00 |
19/0.45 |
2.30 |
1.17 |
4.60 |
16 |
| 10 |
1 x 5.00 |
19/0.26 |
3.00 |
1.17 |
5.30 |
67 |
| 8 |
1 x 8.00 |
19/0.45 |
3.70 |
1.40 |
6.50 |
104 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
