FLYY
Applications
This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

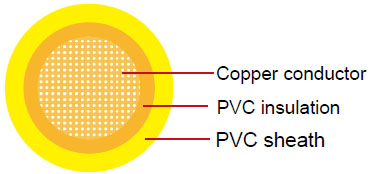

Construction
| Conductor |
Cu-ETP1 bare according to DIN EN 13602 |
| Insulation |
PVC |
| Sheath |
PVC |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40°C to 90°C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. andDia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness Nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1x0.50 |
16/0.21 |
1.00 |
37.10 |
0.60 |
2.10 |
0.40 |
2.70 |
3.10 |
14 |
| 1x0.75 |
24/0.21 |
1.20 |
24.70 |
0.60 |
2.30 |
0.40 |
3.00 |
3.30 |
17 |
| 1x1.00 |
32/0.21 |
1.35 |
18.50 |
0.60 |
2.50 |
0.40 |
3.20 |
3.60 |
20 |
| 1x1.50 |
30/0.26 |
1.70 |
12.70 |
0.60 |
2.80 |
0.50 |
3.70 |
4.10 |
28 |
| 1x2.00 |
40/0.26 |
2.00 |
9.42 |
0.60 |
3.00 |
0.50 |
3.90 |
4.30 |
33 |
| 1x2.50 |
50/0.26 |
2.20 |
7.60 |
0.70 |
3.50 |
0.50 |
4.30 |
4.80 |
41 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
