FLYY
Applications
This PVC insulated, PVC sheathed low tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.

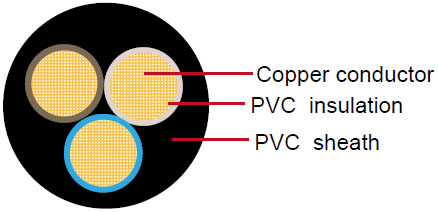

Construction
| Conductor |
Cu-ETP1 bare or tinned according to DIN EN13602 |
| Insulation |
PVC |
| Sheath |
PVC |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40 °C to +105 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. andDia. of Wires |
Diameter max. |
Electrical Resistance at 20°C Bare/tinned Max. |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2x 0.50 |
16/0.21 |
1.00 |
37.10/38.20 |
0.50 |
1.75 |
0.50 |
4.30 |
4.70 |
31 |
| 2x 0.75 |
24/0.21 |
1.20 |
24.70/25.40 |
0.60 |
2.30 |
0.50 |
5.40 |
5.80 |
48 |
| 2x 1.00 |
32/0.21 |
1.35 |
18.50/19.10 |
0.60 |
2.50 |
0.80 |
6.40 |
6.80 |
65 |
| 2x 1.50 |
30/0.26 |
1.70 |
12.70/13.00 |
0.60 |
2.75 |
0.90 |
7.00 |
7.50 |
83 |
| 3x 0.50 |
16/0.21 |
1.00 |
37.10/38.20 |
0.50 |
2.10 |
0.60 |
5.80 |
6.20 |
53 |
| 3x 0.75 |
24/0.21 |
1.20 |
24.70/25.40 |
0.60 |
2.30 |
0.60 |
5.70 |
6.30 |
60 |
| 3x 1.00 |
32/0.21 |
1.35 |
18.50/19.10 |
0.60 |
2.50 |
0.90 |
6.90 |
7.50 |
81 |
| 3x 1.50 |
30/0.26 |
1.70 |
12.70/13.00 |
0.60 |
2.65 |
0.70 |
6.90 |
7.50 |
98 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
