FLRYCY
Applications
This PVC insulated, PVC sheathed multi-cores cable is used for car communication cable.

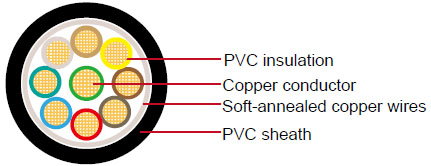

Construction
| Conductor |
Cu-ETP1 according to DIN EN 13602 |
| Insulation |
PVC |
| Shielding |
Soft-annealed copper wires CU-ETP1 or tin coated soft-annealed copper wires according to DIN 40500 and DIN EN 13602. |
| |
Optical coverage of approximately 85% is reflected in very efficient shield attenuation. |
| Sheath |
PVC |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40 °C to +105 °C
| Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C Bare/tinned max. |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 9 x0.08 |
10/0.11 |
0.45 |
35.30/36.50 |
0.20 |
0.80 |
0.60 |
4.60 |
4.90 |
38 |
| 10 x0.25 |
14/0.16 |
0.70 |
84.80/86.50 |
0.20 |
1.10 |
0.60 |
5.80 |
6.20 |
68 |
| 5 x0.35 |
19/0.16 |
0.80 |
52.00/54.50 |
0.25 |
1.30 |
0.50 |
4.70 |
5.10 |
47 |
| 8 x0.35 |
19/0.16 |
0.80 |
52.00/54.50 |
0.25 |
1.25 |
0.65 |
5.90 |
6.30 |
75 |
| 10 x0.35 |
19/0.16 |
0.80 |
52.00/54.50 |
0.25 |
1.25 |
0.65 |
6.50 |
6.90 |
83 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
