FLRYB11Y
Applications
This PVC insulated ,PUR sheathed low tension multi-cores cable is used for automobiles; it has excellent abrasion resistance and better resistance to bending fatigue.

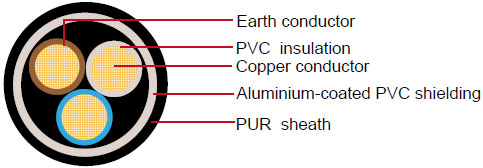

Construction
| Conductor |
Cu-ETP1 bare according to DIN EN 13602 |
| Insulation |
PVC |
| Cover for the earth conductor |
Conductive PVC |
| Shielding |
Aluminium-coated PVC foil |
| Sheath |
polyurethane (PUR) |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40 °C to +105 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20 °C max. |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1x0.35+(0.35) |
7/0.26 |
0.80 |
52.00 |
0.25 |
1.25 |
0.60 |
3.90 |
4.30 |
21 |
| 2x0.35+(0.35) |
7/0.26 |
0.80 |
52.00 |
0.25 |
1.25 |
0.60 |
4.10 |
4.50 |
24 |
| 3x0.35+(0.35) |
7/0.26 |
0.80 |
52.00 |
0.25 |
1.25 |
0.60 |
4.40 |
4.80 |
30 |
| 4x0.35+(0.35) |
7/0.26 |
0.80 |
52.00 |
0.25 |
1.25 |
0.60 |
4.80 |
5.20 |
39 |
| 5x0.35+(0.35) |
7/0.26 |
0.80 |
52.00 |
0.25 |
1.25 |
0.60 |
5.40 |
5.80 |
46 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
