FLRY-B
Applications
This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

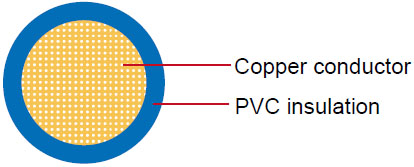

Construction
| Conductor |
Cu-ETP1 bare or tinned copper according to DIN EN13602 |
| Insulation |
PVC |
| Standard Compliance |
ISO 6722 Class B LV112 |
Technical Parameters
Operating temperature: –40°C to 105°C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Resistance at 20°C Bare/Tinned max. |
Thickness Wall min. |
Overall Diameter |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
kg/km |
| 1x0.35 |
12/0.21 |
0.90 |
52.00/5.50 |
0.20 |
1.40 |
5 |
| 1x0.50 |
16/0.21 |
1.00 |
37.10/38.20 |
0.22 |
1.60 |
7 |
| 1x0.75 |
24/0.21 |
1.20 |
24.70/25.40 |
0.24 |
1.90 |
9 |
| 1x1.00 |
32/0.21 |
1.35 |
18.50/19.10 |
0.24 |
2.10 |
11 |
| 1x1.50 |
30/0.26 |
1.70 |
12.70/13.00 |
0.24 |
2.40 |
16 |
| 1x2.00 |
30/0.31 |
1.90 |
9.31/9.59 |
0.24 |
2.60 |
22 |
| 1x2.50 |
50/0.26 |
2.20 |
7.60/7.80 |
0.28 |
3.00 |
26 |
| 1x3.00 |
45/0.31 |
2.40 |
6.21/6.40 |
0.28 |
3.20 |
33 |
| 1x4.00 |
56/0.31 |
2.75 |
4.70/4.80 |
0.32 |
3.70 |
42 |
| 1x6.00 |
84/0.31 |
3.30 |
3.10/3.20 |
0.32 |
4.30 |
61 |
| 1x10.00 |
80/0.41 |
4.50 |
1.82/1.85 |
0.48 |
6.00 |
108 |
| 1x16.00 |
126/0.41 |
6.30 |
1.16/1.18 |
0.52 |
7.90 |
170 |
| 1x25.00 |
196/0.41 |
7.80 |
0.74/0.76 |
0.52 |
9.40 |
265 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
