FLRY-A
Applications
This PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

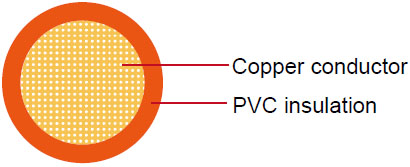

Construction
| Conductor |
Cu-ETP1 bare or tinned copper according to DIN EN13602 |
| Insulation |
PVC |
| Standard Compliance |
ISO 6722 Class B |
Technical Parameters
Operating temperature: –40°C to 105°C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Resistance at 20°C Bare/Tinned max. |
Thickness Wall min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
kg/km |
| 1x0.22 |
7/0.21 |
0.70 |
84.80/86.50 |
0.20 |
1.20 |
3 |
| 1x0.35 |
7/0.26 |
0.80 |
52.00/54.50 |
0.20 |
1.30 |
5 |
| 1x0.50 |
19/0.19 |
1.00 |
37.10/38.20 |
0.22 |
1.60 |
7 |
| 1x0.75 |
19/0.23 |
1.20 |
24.70/25.40 |
0.24 |
1.90 |
9 |
| 1x1.00 |
19/0.26 |
1.35 |
18.50/19.10 |
0.24 |
2.10 |
11 |
| 1x1.50 |
19/0.32 |
1.70 |
12.70/13.00 |
0.24 |
2.40 |
16 |
| 1x2.00 |
19/0.37 |
2.00 |
9.42/9.69 |
0.24 |
2.60 |
23 |
| 1x2.50 |
19/0.41 |
2.20 |
7.60/7.80 |
0.28 |
3.00 |
26 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
