FLR4Y
Applications
This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles. Especially suitable for use as fuel gauge wire, this cable is gasoline and diesel resistant.

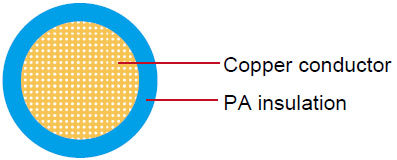

Construction
| Conductor |
Cu-ETP1 bare or tinned according to DIN EN13602 |
| Insulation |
Polyamide (PA) |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40°C to 105°C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Resistance at 20°C Bare/Tinned max. |
Thickness Wall min. |
Overall Diameter |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
kg/km |
| FLR4Y-A |
| 1x0.35 |
7/0.26 |
0.80 |
52.00/54.50 |
0.20 |
1.30 |
4 |
| 1x0.50 |
19/0.19 |
1.00 |
37.10/38.20 |
0.22 |
1.60 |
6 |
| 1x0.75 |
19/0.23 |
1.20 |
24.70/25.40 |
0.24 |
1.90 |
8 |
| 1x1.00 |
19/0.26 |
1.35 |
18.50/19.10 |
0.24 |
2.10 |
11 |
| 1x1.50 |
19/0.32 |
1.70 |
12.70/13.00 |
0.24 |
2.40 |
15 |
| 1x2.50 |
19/0.41 |
2.20 |
7.60/7.80 |
0.28 |
3.00 |
24 |
| FLR4Y-B |
| 1x0.35 |
12/0.21 |
0.90 |
52.00/54.50 |
0.20 |
1.40 |
4 |
| 1x0.50 |
16/0.21 |
1.00 |
37.10/38.20 |
0.22 |
1.60 |
6 |
| 1x0.75 |
24/0.21 |
1.20 |
24.70/25.40 |
0.24 |
1.90 |
8 |
| 1x1.00 |
32/0.21 |
1.35 |
18.50/19.10 |
0.24 |
2.10 |
11 |
| 1x1.50 |
30/0.26 |
1.70 |
12.70/13.00 |
0.24 |
2.40 |
15 |
| 1x2.50 |
50/0.26 |
2.20 |
7.60/7.80 |
0.28 |
3.00 |
24 |
| 1x4.00 |
56/0.31 |
2.75 |
4.70/4.80 |
0.32 |
3.70 |
40 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
