FLR13Y11Y
Applications
This TPE-E insulated,TPE-U sheathed low tension multi-cores cable is used for ABS systems,it has excellent abrasion resistance and better resistance to bending fatigue.

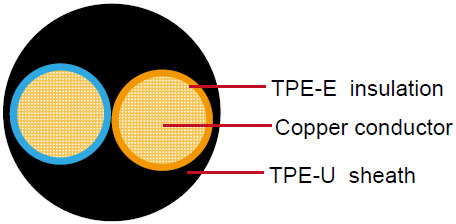

Construction
| Conductor |
Cu-ETP1 according to DIN EN13602 |
| Insulation |
Thermoplasticity polyester (TPE-E) |
| Sheath |
Thermoplasticity polyurethane (TPU) |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40 °C to +125 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. andDia. of Wires |
Diameter max. |
Electrical Resistance at 20°Cmax. |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2 x 0.50 |
28/0.16 |
1.00 |
37.10 |
0.20 |
1.40 |
0.60 |
3.85 |
4.15 |
22 |
| 2 x 0.50 |
28/0.16 |
1.00 |
37.10 |
0.20 |
1.40 |
0.85 |
4.35 |
4.65 |
27 |
| 2 x 0.50 |
28/0.16 |
1.00 |
37.10 |
0.35 |
1.70 |
0.80 |
4.80 |
5.20 |
32 |
| 2 x 0.60 |
80/0.11 |
1.20 |
24.70 |
0.20 |
1.45 |
0.80 |
4.35 |
4.65 |
28 |
| 2 x 0.75 |
42/0.16 |
1.20 |
27.10 |
0.30 |
1.80 |
1.30 |
6.00 |
6.40 |
48 |
| 2 x 0.75 |
96/0.10 |
1.20 |
27.10 |
0.30 |
1.80 |
1.30 |
6.00 |
6.40 |
62 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
